RS5420-V2, 4U Storage Server, Dual Socket Intel® Xeon® Scalable Processor, 2 x 32GB DRAM, 2 x 2.5" SATA SSD SDrive Bays, 2 x RJ45 10GBASE-T Ports, 2000W Redundan

RS5420-V2, 4U Storage Server, Dual Socket Intel® Xeon® Scalable Processor, 2 x 32GB DRAM, 2 x 2.5" SATA SSD SDrive Bays, 2 x RJ45 10GBASE-T Ports, 2000W Redundan

10200000 CFA

 3-Year Warranty


Product Highlights

Dual Socket 3rd Gen Intel® Xeon® Scalable Processors with up to 72 Cores
Up to 16x 4TB 3200MT/s ECC DDR4 RDIMM/LRDIM
3x PCIe 4.0x 16 HHHL PCIe Slots
UP to 60x 3.5"/2.5" Hot-swap SAS3/SATA3 Drives, 2 Fixed Slim SATA SSD, 2 NVMe M.2
Server Remote Management: IPMI 2.0/ KVM over LAN / Media over LAN
Suitable for Big Data & Analytics, Data Lake, HPC and Machine Learning, Elco & Cloud Service Providers, Financial Services & Healthcare Image Archives, Content Repositories and Government Data Protection.

4U Storage Server, Dual Socket Intel® Xeon® Scalable Processor, 2 x 32GB DRAM, 2 x 2.5" SATA SSD Drive Bays, 2 x RJ45 10GBASE-T Ports, 2000W Redundant

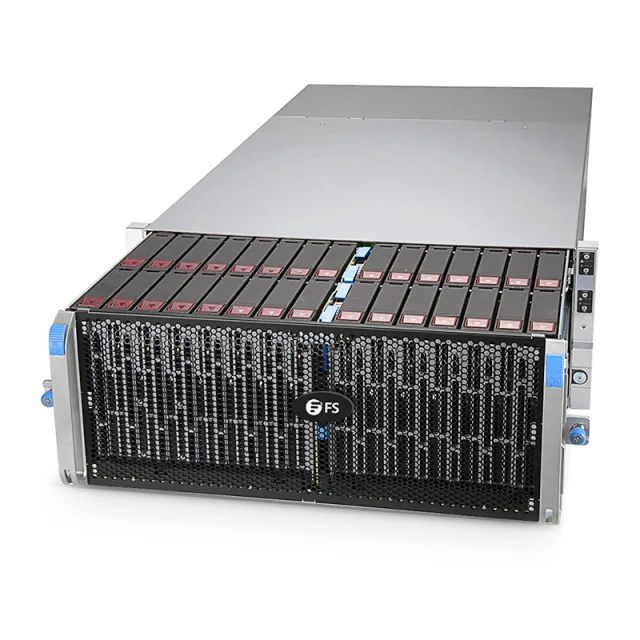

The RS5420-V2 is a high-performance computing server with Intel® C621A chipset. It supports dual socket Intel® Xeon® scalable processor. It supports up to 16x 4 TB memory and 60x 3.5" NVMe/SAS/SATA Drive Bays, with optional support for 2x M.2 NVMe slot(s). Integrated BMC chip enables easy management, I/OA tech, link convergence, and binding redundancy. Optional KVM OVER IP for out-of-band management.

The new-generation RS5420-V2 accelerated computing server is mainly used in big data & analytics, data lake, HPC and machine learning workloads, telco & cloud service providers, financial services & healthcare image archives, content repositories, and government data protection.

Specifications
Form Factor
4U Rackmount
Processor
Standard Configuration-2x Intel® Xeon® Silver 4310 Processor-12C 2.1G 120W
Chipset
Intel® C621A
Drive Bays
Standard Configuration-2x 480G 2.5" SATA SSD Total 66 Bay(s)
Memory
Standard Configuration-2x 32G DDR4 RDIMM
Expansion Slots
Standard Configuration-3 PCIe 4.0 x16 LP
Raid Controller
Support RAID 0,1,5,10
Fans
6 Heavy Duty 8cm Fan(s)
Ethernet
Standard Configuration-2-port 10GBase-T
Power Supply
2x 2000W Redundant Titanium Level (96%) Hot-plug Power Supplies
System BIOS
AMI 128MB SPI Flash EEPROM
Operating Temperature
10°C ~ 35°C (50°F ~ 95°F)
Chassis (HxWxD)
447.04x117.8x865.14mm (17.6"x 7"x34.1")
Gross Weight
170.5 lbs (77.3 kg)
Management Software
BMC Web GUI/Redfish APIs/IPMI 2.0/SNMP3.0
Operating System Management
WS 2022/RHEL 8.3/Oracle Linux 8.3
