Customized RS7250-V2, 2U Rack Server, Up to 32 x 4TB of Memory, 12 x 3.5''/2.5'' Hot-swap SAS/SATA Drive Bays, 2 x RJ45 1GbE Ports, 800W Redundant

Customized RS7250-V2, 2U Rack Server, Up to 32 x 4TB of Memory, 12 x 3.5''/2.5'' Hot-swap SAS/SATA Drive Bays, 2 x RJ45 1GbE Ports, 800W Redundant

6600000 CFA

 3-Year Warranty


Product Highlights

32 DIMM Slots - Up to 4TB of 3200MHz ECC DDR4 RDIMM
12x 3.5"/2.5" SAS/SATA/SSD/U.2 Hot-swappable Drive Bays
Easily Expand with up to 6 PCIe 4.0 Slots and 1 OCP Dedicated Slot (PCIe4.0)
Support RAID 0, 1, 5, 6, 10, 50, 60, JBOD
Support a Wide Range of Operating Systems
Suitable for Enterprise and Data Center Applications in Virtualization

2U Rack Server, Up to 32 x 4TB of Memory, 12 x 3.5''/2.5'' Hot-swap SAS/SATA Drive Bays, 2 x RJ45 1GbE Ports, 800W Redundant

RS7250-V2 is a 2U server product with Intel C620 series chipset. FS offers a range of pre-configured options for versatility to meet the needs of modern and evolving businesses. When configuring your custom server, you'll have the choice of 2 third-generation Intel® Xeon® Scalable series processors, 2~32 16/32G memory, 1~12 SAS/SATA/SSD hard drives and up to 6 PCIe Gen 4.0 expansion slots. With an integrated BMC chip, it facilitates easy management, and binding redundancy.
RS7250-V2 is suitable for virtualization applications, big data analysis, online games, mail and information processing, web search, etc.

Specifications
Form Factor
2U Rackmount
Number of Processors
2
Chipset
Intel C620 Series Chipset
Memory
32 DIMM Slots - Support 3200MHz DDR4 RDIMM Memory, Up to 4TB
Drive Bays
12x 3.5''/2.5'' SAS/SATA/SSD/U.2 Hot-swappable Drive Bays
Expansion Slots
2 PCIe 4.0x 16, 4 PCIe 4.0x 8, 1 OCP3.0 Type A Dedicated Slot (PCIe 4.0x16)
Ethernet
1x 1GBase-T Ports
Power Supply
800W 1+1 Redundant Power Supply
Dimensions (HxWxD)
3.4''x17.2''x30.3'' (87x438x770mm)
Fans
6 Hot-swappable Redundant Fans
Raid Controller
Support RAID 0, 1, 5, 6, 10, 50, 60, JBOD
Management Software
BIOS | BMC | IPMI2.0 | iKVM
Weight
29.6lbs (13.44KG)
Operating System Management
Windows Server 2019 | Redhat Enterprise Linux8

Product Spotlights

Workload Optimized Support

Support up to 2x 3rd Gen Intel®xeon® Scalable Processors with 40 cores

Support Intel Quick Assistant Technology (Intel® QAT) and Intel Advanced Vector Extensions 512 (Intel® AVX-512)

8 memory channels, 32 memory DIMM slots, maximum support 4TB 3200MHz/DDR4

Support M.2 and U.2, with faster transmission speed, lower power consumption and higher reliability

Support SD card

Support 6 expansion slots, providing users with flexible connection options

Support up to 12 hot-plug 3.5''/2.5'' SATA/SAS/SSD hard drives


Intelligent Management Automation

Integrated BMC management to grasp the system operation status in real time, support pre-alarm, failure recovery function

Support IPMI2.0

Provide 1 RJ45 management network port

Support remote management

Support iKVM


Built-in Security

Adopt intelligent cooling system to effectively reduce noise pollution and create a constant temperature space for the chassis

Fully shielded, anti-interference and anti-electromagnetic interference (EMI) design

Support Intel Quick Assistant Technology (Intel® QAT)

Support 1+1 fully redundant power supply mode

Support PMBUS power consumption monitoring and module loss alarm

Support chassis intrusion detection alarm

Support frequency reduction function, which can reduce system energy consumption at a low load

Support RAID protection function to provide different levels of data redundancy protection


Quality Certifications

Image supplémentaire

Produits similaires

RS7250, 2U Rack Server, 2 x Intel® Xeon® Scalable Processors, 2 x 32GB of Memory, 12x 2.5'' Hot-swap SATA SSD Drive Bays, 2 x RJ45 1GbE Ports, 800W Redundantx

RS7250, 2U Rack Server, 2 x Intel® Xeon® Scalable Processors, 2 x 32GB of Memory, 12x 2.5'' Hot-swap SATA SSD Drive Bays, 2 x RJ45 1GbE Ports, 800W Redundantx

6300000 CFA
Voir le produit
RS7260-V2, 2U Rackmount Server, Dual Intel® Xeon® Scalable Processors, 4 x 16GB DRAM, 2 x 3.5'' Hot-swap Hybrid SAS HDD Drive Bays, 2 x RJ45 10GbE Ports, 1200W Redundant

RS7260-V2, 2U Rackmount Server, Dual Intel® Xeon® Scalable Processors, 4 x 16GB DRAM, 2 x 3.5'' Hot-swap Hybrid SAS HDD Drive Bays, 2 x RJ45 10GbE Ports, 1200W Redundant

5095000 CFA
Voir le produit

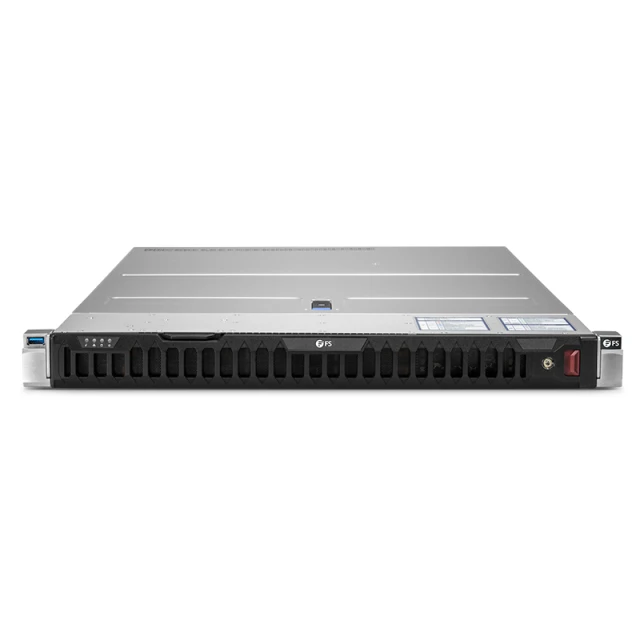

RS7150-V3, 1U Rackmount Server, Dual Socket Intel® Xeon® Scalable Processors, 4 x 32GB DRAM, 2 x 2.5" SATA SSD Hot-swap Drive Bays, 1 x RJ45 1GbE Port, 1200W Redundant

RS7150-V3, 1U Rackmount Server, Dual Socket Intel® Xeon® Scalable Processors, 4 x 32GB DRAM, 2 x 2.5" SATA SSD Hot-swap Drive Bays, 1 x RJ45 1GbE Port, 1200W Redundant

5300000 CFA
Voir le produit

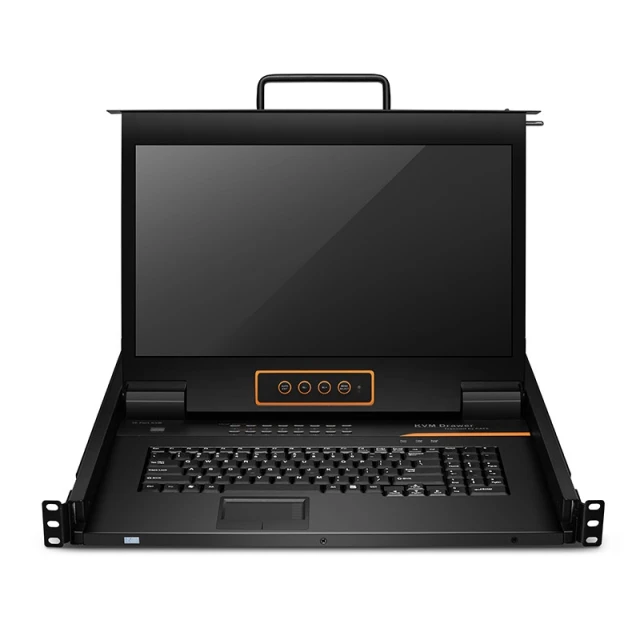

16-Port Cat5 1U Rack-Mount KVM Over IP Switch with 17" Full HD LCD, 16 x RJ45 to VGA Interface Modules Included
