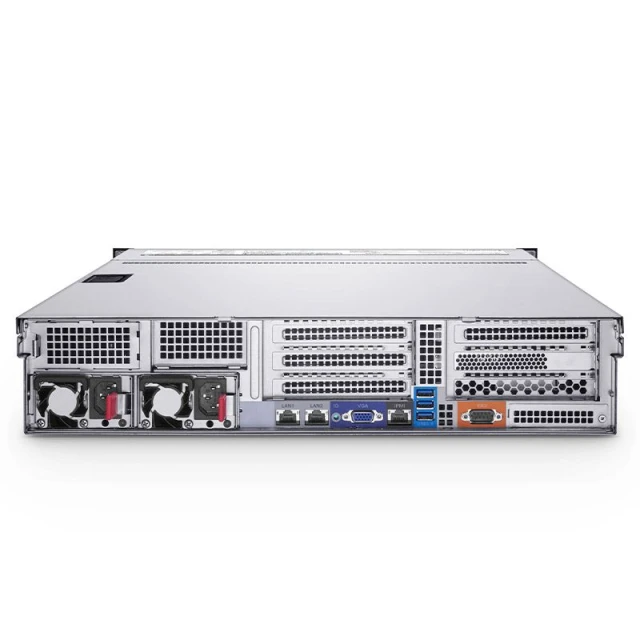

RS7250, 2U Rack Server, 2 x Intel® Xeon® Scalable Processors, 2 x 32GB of Memory, 12x 2.5'' Hot-swap SATA SSD Drive Bays, 2 x RJ45 1GbE Ports, 800W Redundantx

6300000 CFA

 3-Year Warranty

Product Highlights

Dual Socket 2nd Gen Intel® Xeon® Gold 5218R Processors with up to 20 Cores

24 DIMM Slots-Up to 3TB of 2933MHz ECC DDR4 RDIMM

12x 3.5"/2.5" SSD/SAS/SATA Hot-swappable Drive Bays

Easily Expand with up to 6 PCIe 3.0 Slots and 1 OCP 2.0 Dedicated Slot (PCIe3.0)

Support RAID 0, 1, 5, 6, 10, 50, 60, JBOD

Support a Wide Range of Operating Systems

Attached 2U Bezel to Prevent Hard Disk from Being Stolen, also Makes the Server Look Neat

Suitable for Cloud Computing, Virtualization Application

2U Rack Server, 2 x Intel® Xeon® Scalable Processors, 2 X 32GB of Memory, 12x 2.5'' Hot-swap SATA SSD Drive Bays, 2 x RJ45 1GbE Ports, 800W Redundant

The RS7250 is designed for virtualization, high-performance computing, software-defined storage, and cloud computing. 2U server product with Intel C620 series chipset, comes with a 2U standard bezel for free, supporting up to two Intel® Xeon® Scalable Series processors. Supports up to 3T DDR4 MEM with DDR4 ECC Register memory and higher memory bandwidth with lower density DIMMs. 12x 3.5/2.5" SSD/SAS/SATA hard drives with onboard support for 1x 2280 PCIe M.2 SSD and 2x NVME U.2 SSDs with load balancing, link aggregation and redundancy. Supports one 1000M IPMI dedicated remote management port for KVM over IP out-of-band management.

Specifications

Form Factor

2U Rackmount

Processors

2 X Intel Xeon Gold 5218R Processor

Chipset

Intel C620 Series Chipset

Memory

Standard Configuration-2 x 32GB DDR4 RDIMM

Drive Bays

Standard Configuration- 2x 2.5'' SATA Drive Bays

Expansion Slots

6 PCIe 3.0 x8

Raid Controller

Support RAID 0, 1, 5, 6, 10, 50, 60, JBOD

Weight

32.5lbs (14.72KG)

Ethernet

2x 1GBase-T Ports

Power Supply

800W 1+1 Redundant Power Supply

Dimensions (HxWxD)

3.4''x17.2''x28.9'' (87x438x735mm)

Fans

6 Hot-swappable Redundant Fans

Management Software

BIOS | BMC | IPMI2.0 | iKVM

Operating System Management

Windows Server 2019 | RHEL7.6 x64

Product Spotlights

Workload Optimized Support

Support up to 2x 2nd Gen Intel® Xeon® Scalable Processors with 28 cores

Support Intel Quick Assistant Technology (Intel® QAT) and Intel Advanced Vector Extensions 512 (Intel® AVX-512)

12 memory channels, 24 memory DIMM slots, maximum support 3TB 2933MHz/DDR4

Support M.2 and U.2

Support 6 expansion slots, providing users with flexible connection options

Support up to 12 hot-plug 3.5''/2.5'' SATA/SAS/SSD hard drives

Intelligent Management Automation

Integrated BMC management to grasp the system operation status in real time, support pre-alarm, failure recovery function

Support IPMI2.0

Provide 1 RJ45 management network port

Support remote management

Support iKVM

Built-in Security

Adopt intelligent cooling system to effectively reduce noise pollution and create a constant temperature space for the chassis

Fully shielded, anti-interference and anti-electromagnetic interference (EMI) design

Support Intel Quick Assistant Technology (Intel® QAT)

Support 1+1 fully redundant power supply mode

Support PMBUS power consumption monitoring and module loss alarm

Support frequency reduction function, which can reduce system energy consumption at a low load

Support RAID protection function to provide different levels of data redundancy protection

Quality Certifications
