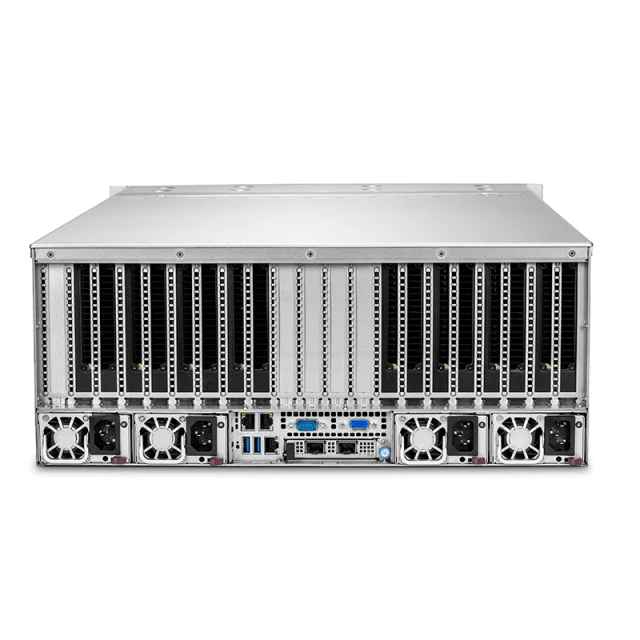

GS8470-V3, 4U GPU Server, Dual Socket Intel® Xeon® Scalable Processors, 4 x 32GB DRAM, 1 x 2.5" SATA SSD Drive Bays, 2 x RJ45 10GbE Ports, 2700W Redundant

GS8470-V3, 4U GPU Server, Dual Socket Intel® Xeon® Scalable Processors, 4 x 32GB DRAM, 1 x 2.5" SATA SSD Drive Bays, 2 x RJ45 10GbE Ports, 2700W Redundant

19850000 CFA

 3-Year Warranty


Product Highlights

Dual Socket 5th/4th Gen Intel® Xeon® Scalable Processors
32 DIMM slots Up to 8TB
AIOM/OCP 3.0 Support 13 PCIe Gen 5.0X 16 FHFL Slots
16 Hot-swap 2.5" SATA/SAS/NVMe Drive Bays
Suitable for HPC, VDI, Deep Learning Training, Media/Video Streaming, Cloud Gaming, Animation and Modeling, Design and Visualization, 3D Rendering and Diagnostic Imaging.

4U GPU Server, Dual Socket Intel® Xeon® Scalable Processors, 4 x 32GB DRAM, 1 x 2.5" SATA SSD Drive Bays, 2 x RJ45 10GbE Ports, 2700W Redundant

The GS8470-V3 is a high-performance computing server with Intel® C741 chipset. It supports dual socket Intel® Xeon® scalable processor, Up to 10 double-width GPUs. It supports up to 8 TB memory and 16x 2.5" NVMe/SATA Drive Bays. Integrated BMC chip enables easy management, I/OA tech, link convergence, and binding redundancy. Optional KVM OVER IP for out-of-band management.
The new-generation GS8470-V3 accelerated computing server is mainly used in high-performance computing, VDI, deep learning training, media/video streaming, cloud gaming, animation and modeling, design & visualization, 3D rendering, and diagnostic imaging.

Specifications
Form Factor
4U Rackmount
Processor
Standard Configuration-2x Intel® Xeon® Silver 6430 Processor-32C 2.1G 270W
Chipset
Intel® C741
Drive Bays
Standard Configuration-1x 480G 2.5" SATA SSD Total 16 bay(s)
Memory
Standard Configuration-4x 32G DDR5 RDIMM
Expansion Slots
Standard Configuration-2x NVIDIA Ada Lovelace GPU(s) Total 13 PCIe 5.0x 16
Raid Controller
Support RAID 0,1,5,10
Fans
8x Heavy Duty Fans
Ethernet
Standard Configuration-2x Port 10GBase-T(AIOM)
Power Supply
4x 2700W Redundant Titanium Level (96%) power supplies
System BIOS
AMI 32MB SPI Flash EEPROM
Operating Temperature
10°C ~ 35°C (50°F ~ 95°F)
Chassis (HxWxD)
437 x 178 x 737mm (17.2"" x 7"" x 29"")
Gross Weight
100 lbs (45.3 kg)
Management Software
BMC Web GUI/Redfish APIs/IPMI 2.0/SNMP3.0
Operating System Management
WS 2022/RHEL 9.0/Oracle Linux 9.0
