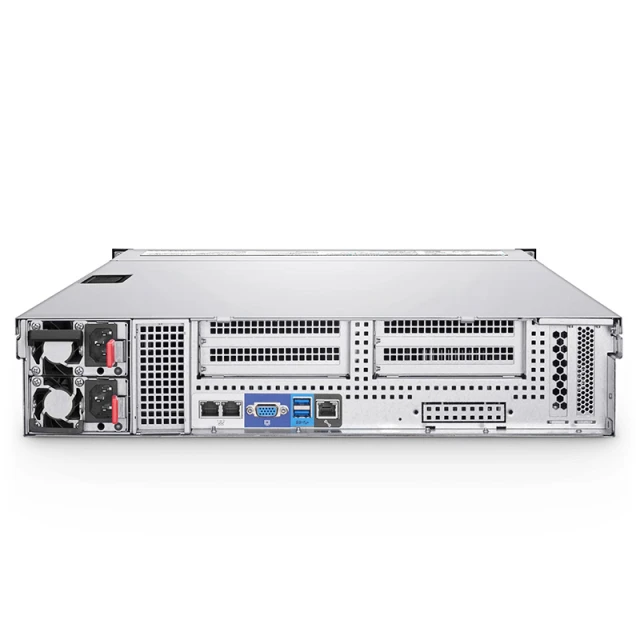

RS5220, 2U Rack Server, 2 x Intel® Xeon® Scalable Processors, 2 X 32GB of Memory, 3 x 3.5'' Hot-swap SATA Drive Bays, 2 x RJ45 1GbE Ports, 800W Redundant

RS5220, 2U Rack Server, 2 x Intel® Xeon® Scalable Processors, 2 X 32GB of Memory, 3 x 3.5'' Hot-swap SATA Drive Bays, 2 x RJ45 1GbE Ports, 800W Redundant

3700000 CFA

 3-Year Warranty


Product Highlights

Dual Socket 2nd Gen Intel® Xeon® Silver 4210 Processors with up to 22 Cores
8 DIMM Slots-Up to 1TB of 2933MHz ECC DDR4 RDIMM
UP to 8x 3.5"/2.5" SSD/SAS/SATA Hot-swappable Drive Bays
Easily Expand with up to 5 PCIe 3.0 Slots and 1 OCP 2.0 Type A/C Dedicated Slot
Support RAID 0, 1, 5, 6, 10, 50, 60, JBOD
Support a Wide Range of Operating Systems
Attached 2U Bezel to Prevent Hard Disk from Being Stolen
Suitable for Enterprise and Data Center Applications in Virtualization

2U Rack Server, 2 x Intel® Xeon® Scalable Processors, 2 X 32GB of Memory, 3 x 3.5'' Hot-swap SATA Drive Bays, 2 x RJ45 1GbE Ports, 800W Redundant

The RS5220 is a high-performance computing server with Intel C621 chipset. It comes with a 2U standard bezel for free, supporting up to two Intel® Xeon® Scalable Series processors to meet the widest range of applications and environmental requirements. Utilizes DDR4 ECC Register memory to support higher memory bandwidth with lower density DIMMs. Supports up to 8x 2.5″/3.5″ SSD/SAS/SATA hot-swappable hard drives and one 2280/22110 PCIe M.2 SSD on board with load balancing, link aggregation and redundancy features to effectively reduce network latency. 2x 800W CRPS redundant power supply modules are standard.
Rich expansion capabilities: provides a variety of full height and full length PCI-E expansion slots.

Specifications
Form Factor
2U Rackmount
Processor
2x Intel Xeon Silver 4210 Processor - 2.20GHz/13.75MB/10C/20T/85W
Chipset
Intel C621 Series Chipset
Memory
8 DIMM Slots - Support 2933MHz DDR4 RDIMM Memory, Up to 1TB
Drive Bays
8x 3.5"/2.5" SSD/SAS/SATA Hot-swappable Drive Bays
RAM
Standard Configuration - 2x 32GB DDR4 2933MHz ECC DDR4 RDIMM
Hard Drives
Standard Configuration - 3x 4T 3.5'' SATA/7200PRM
Expansion Slots
4 PCIe 3.0 x16, 1 PCIe 3.0 x8, 1 OCP Type A/C Dedicated Slot
Raid Controller
Support RAID 0, 1, 5, 6, 10, 50, 60, JBOD
Power Supply
800W 1+1 Redundant Power Supply
Ethernet
2x 1GBase-T Ports
Fans
3 Hot-swappable Redundant Fans
Management Software
BIOS | BMC | IPMI2.0 | iKVM
Operating System Management
Windows 2016 | VMware ESXi 6.7
Dimensions (HxWxD)
3.4''x17.2''x25.9'' (87x438x660mm)
Gross Weight
40lbs (18KG)

Product Spotlights

Workload Optimized Support

Support up to 2x 2nd Gen Intel® Xeon® Scalable Processors with 22 cores

Support Intel Quick Assistant Technology (Intel® QAT) and Intel Advanced Vector Extensions 512 (Intel® AVX-512)

8 x memory channels, 8 x memory DIMM slots, and up to 1TB 2933MHz/DDR4

Suppport M.2 and U.2

5 expansion slots, which provide users with flexible connection options

Support up to 8 hot-plug 3.5''/2.5'' SATA/SAS/SSD hard drives


Intelligent Management Automation

Integrated BMC management to grasp the system operation status in real time, support pre-alarm, failure recovery function

Support IPMI2.0

Provide 1 RJ45 management network port

Support remote management

Support iKVM


Built-in Security

Adopt intelligent cooling system to effectively reduce noise pollution and create a constant temperature space for the chassis

Fully shielded, anti-interference and anti-electromagnetic interference (EMI) design

Support Intel Quick Assistant Technology (Intel® QAT)

Support 1+1 fully redundant power supply mode

Support PMBUS power consumption monitoring and module loss alarm

Support frequency reduction function, which can reduce system energy consumption at a low load

Support RAID protection function to provide different levels of data redundancy protection
