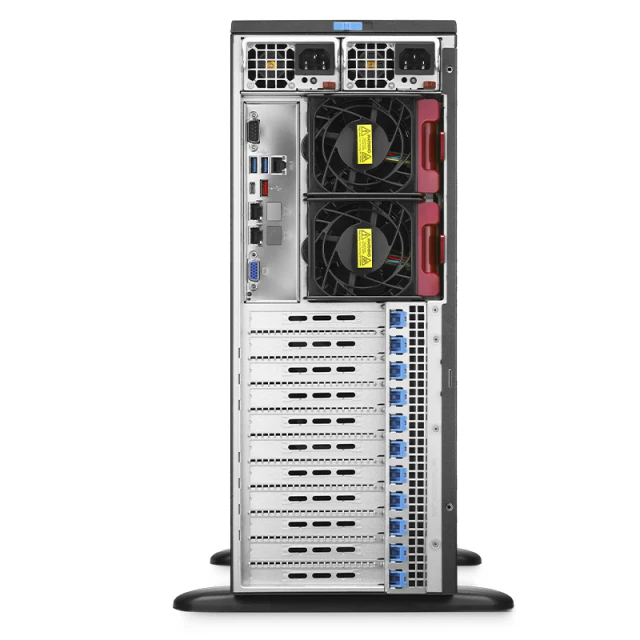

GS7640-V2, Full-Tower GPU Server, Dual Socket Intel® Xeon® Scalable Processors, 4x 32GB DRAM, 1x 2.5" SATA SSD Drive Bays, 2 x RJ45 10GbE Ports, 2200W Redundant

GS7640-V2, Full-Tower GPU Server, Dual Socket Intel® Xeon® Scalable Processors, 4x 32GB DRAM, 1x 2.5" SATA SSD Drive Bays, 2 x RJ45 10GbE Ports, 2200W Redundant

12200000 CFA

 3-Year Warranty


Product Highlights

Dual Socket 3rd Gen Intel® Xeon® Scalable Processors
16 DIMM Slots with Up to 4TB DRAM
1 PCIe 4.0x 8 LP, 4 Double-width PCIe 4.0x 16 and 2 Single-width PCIe 4.0x 16 Slots
8x 3.5" Hot-swap Drive Bays Up to 8 NVMe drives
Suitable for Scientific Virtualization, HPC, Rendering and Deep Learning Training.

Full-Tower GPU Server, Dual Socket Intel® Xeon® Scalable Processors, 4x 32GB DRAM, 1x 2.5" SATA SSD Drive Bays,2 x RJ45 10GbE Ports, 2200W Redundant

The GS7640-V2 is a high-performance computing server with Intel® C621A chipset. It supports dual Socket 3rd Gen Intel® Xeon® Scalable processors, Up to 4 double-width GPUs. It supports up to 8 TB memory and 8x 3.5" NVMe/SAS/SATA Drive Bays. Integrated BMC chip enables easy management, I/OA tech, link convergence, and binding redundancy. Optional KVM OVER IP for out-of-band management.

The new-generation GS7640-V2 accelerated computing server is mainly used in scientific virtualization, high-performance computing, rendering, and deep learning training.

Specifications
Form Factor
Full-Tower
Processor
Standard Configuration-2x Intel® Xeon® Silver 6330 Processor-28C 2.0G 205W
Chipset
Intel® C621
Drive Bays
Standard Configuration-1x 480G 2.5" SATA SSD Total 8 Bays
Memory
Standard Configuration-4x 32G DDR4 RDIMM
Expansion Slots
Standard Configuration-1x NVIDIA Ada Lovelace GPU(s) Total 6 PCIe 5.0x 16, 1 Pcie 5.0x 8
Raid Controller
Support RAID 0,1,5,10
Fans
4x Heavy Duty Fans
Ethernet
Standard Configuration-2x Port 10GBase-T
Power Supply
1x 2200W Redundant Titanium Level (96%) Power Supply
System BIOS
AMI 32MB SPI Flash EEPROM
Operating Temperature
10°C ~ 35°C (50°F ~ 95°F)
Chassis (HxWxD)
178x460x673mm (7"x18.1"x26.5")
Gross Weight
57 lbs (25.85 kg)
Management Software
BMC Web GUI/Redfish APIs/IPMI 2.0/SNMP3.0
Operating System Management
WS 2022/RHEL 9.0/ESXi 7.0U3
