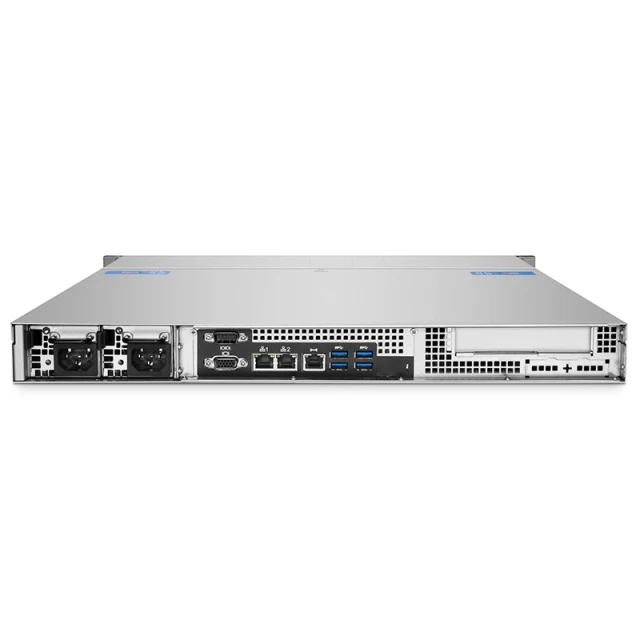

RS2110, 1U Rack Server, 1 x Intel® Xeon® Scalable Processor, 1 x 16GB DRAM, 1 x 3.5'' Hot-swap SATA Drive Bays, 2 x RJ45 1GbE Ports, 450W Redundant

1560000 CFA

 3-Year Warranty

Product Highlights

Single Socket Intel Xeon-E-2100/2200 Series Processor with up to 6 Cores

4 DIMM Slots-Up to 128GB of 2666MHz ECC DDR4 RAM

4x 3.5''/2.5'' SATA Hot-swappable Drive Bays

Easily Expand with 2 PCIe 3.0 Slots

Support a Wide Range of Operating Systems

Suitable for Cloud Computing, Virtualization Application

1U Rack Server, 1 x Intel® Xeon® Scalable Processor, 1x 16GB RDIMM,1 x 3.5'' Hot-swap SATA Drive Bays, 2 x RJ45 1GbE Ports, 450W Redundant

RS2110 is a 1U rackmount server based on Intel CoffeeLake architecture, supporting the latest Intel I3/Xeon E-2100 series processor with up to 6 cores. The memory is up to 4X 128GB and accommodates 4x 2.5/3.5" hot-swap hard drives. With an integrated BMC chip, it enables convenient management and supports I/OA technology, link aggregation, and binding redundancy. It features a dedicated 1000M IPMI remote management port, optional KVM OVER IP out-of-band management, and standard 450W dual power supplies.
Intel SGX offers hardware-level security for safeguarding sensitive data in specific applications from malicious software or other threats.

Specifications

Form Factor

1U Rackmount

Processor

1 X Intel Xeon E-2224/3.4GHz/8M/4C/4T/71W

Chipset

Intel C242 Chipset

Memory

Standard Configuration-1x 16GB DDR4 RDIMM

Drive Bays

Standard Configuration-1x 2TB 3.5'' SATA Drive Bays

Expansion Slots

2 PCIe 3.0x 8

Raid Controller

Standard Configuration - No Raid Card

Weight

24lbs (10.88KG)

Ethernet

2x 1GBase-T Ports

Power Supply

450W 1+1 Redundant Power Supply

Dimensions (HxWxD)

1.7"x16.9"x21.7" (44x430x550mm)

Fans

4 Non-hot-swappable Fans

Management Software

BIOS | BMC | IPMI2.0 | iKVM

Operating System Management

Windows Server 2019 | CentOs Linux 8.0

Product Spotlights

Workload Optimized Support

Support hyper-threading technology, up to 16 threads when 8 cores

2 memory channels, 4 memory DIMM slots, maximum support 128GB 2666MHz/DDR4

Support up to 2 PCIe 3.0 slots

Kernel acceleration mode 2 (Turbo Mode) kernel running dynamic acceleration

Support Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 instruction set

Intelligent Management Automation

Integrated BMC management to grasp the system operation status in real time, support pre-alarm, failure recovery function

Support IPMI2.0

Provide 1 RJ45 management network port

Support remote management

Support iKVM

Built-in Security

Adopt intelligent cooling system to effectively reduce noise pollution and create a constant temperature space for the chassis

Fully shielded, anti-interference and anti-electromagnetic interference (EMI) design

Support 1+1 fully redundant power supply mode

The motherboard provides TPM trusted module interface, users can choose according to their needs

Supports Intel SGX (Software Guard Extensions) technology

Quality Certifications
