4K HDMI KVM USB2.0 Extender Set with Audio and HDCP via SFP+ SMF Module for 10km or Cat5e Cable for 150m

4K HDMI KVM USB2.0 Extender Set with Audio and HDCP via SFP+ SMF Module for 10km or Cat5e Cable for 150m

366000 CFA

Product Highlights

Delivers UHD Picture Quality at Resolutions up to 3840x 2160 (4Kx 2K) @30Hz
Supports Ultra Long Distance Transmission up to 10KM or 150M
Supports Bidirectional Analog Audio
Supports Connect to a Network Switch (1000M)
Local HDMI Port Allows Displays with Different Resolutions without Affecting 4K Signal
Plug-and-play Operation with No Software Required for Easy, Immediate Installation
Supports Keyboard & Mouse Signal Transmission

3840x 2160@30Hz HDMI KVM Extender via SFP+ SMF Module for 10km or Cat5e Cable for 150m

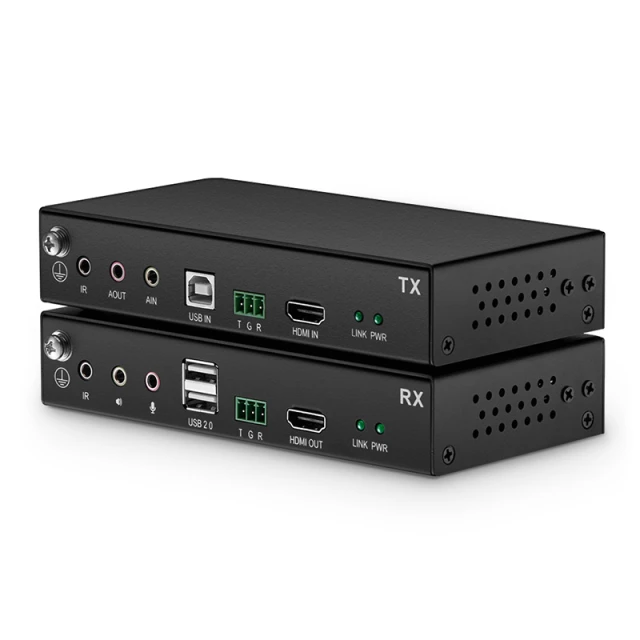

4K@30Hz HDMI Extender delivers UHD HDMI video, USB2.0, keyboard, mouse and stereo audio signals up to a remote desk over fiber optic cable or Cat5e cable. A complete set of 4KHDMIUFR including transmitter and receiver. The transmitter is connected to a computer or server, and the receiver is connected to a display, keyboard, mouse, audio player and other USB devices. The 4KHDMIUFR supports signal transmission over fiber optic cable or Cat5e cable, and it supports single-mode and multi-mode optical fiber. The maximum transmission distance of single mode is 10km

As for multimode transmission, the distance is up to 300m. If you connect them with a Cat5e cable, the transmitting distance is up to 150m. It supports the transmission of 1 channel high-quality HDMI signals and has a wide range of applications.

Specifications
Max Resolution
3840x 2160@30Hz
Total Data Rate
10Gbps
Signal Type
HDMI
Wavelength
850nm/1310nm
Video Input Connector
(1) HDMI Type A 19-pin Female
Connectors
SFP+, RJ45
Operating Distance
10km@SMF Module, 150m@Cat5e Cable
Dimensions (HxWxD）
1.2"x6.2"x3.1" (30x158x80mm)
 Working Temperature
0 to 50°C (32 to 122°F)
Relative Humidity
0 to 80% (Non-condensing)
