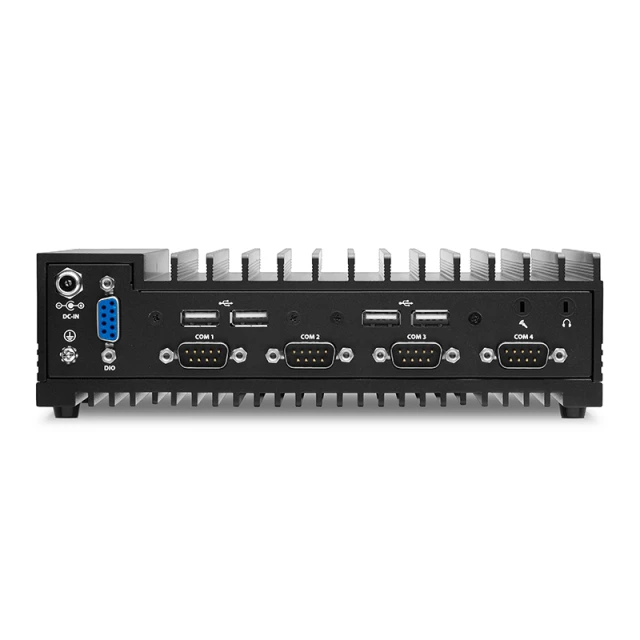

ES1010-V3, Fanless Embedded Rackmount Server, Single FCBGA-1744 Intel® Celeron® Processor 7305E, 1 x 8GB DRAM, 1 x M.2 NVMe/SATA Drive Bays, 2 x RJ45 2.5GbE Ports, 84W Redundant

ES1010-V3, Fanless Embedded Rackmount Server, Single FCBGA-1744 Intel® Celeron® Processor 7305E, 1 x 8GB DRAM, 1 x M.2 NVMe/SATA Drive Bays, 2 x RJ45 2.5GbE Ports, 84W Redundant

733000 CFA

 3-Year Warranty


Product Highlights

Alder Lake-U 12th Generation Intel® Celeron® 7305E
2 DDR5-4800MT/s Non-ECC SO-DIMM Max 64GB
M.2 M/B/E-Key with Nano SIM Card Slot
2 LAN 2.5GbE
4 Independent Displays HDMI2.0b/1.4b + DP 1.4a

Fanless Embedded Rackmount Server, Single FCBGA-1744 Intel® Celeron® Processor 7305E, 1 x 8GB DRAM, 1 x M.2 NVMe/SATA Drive Bays, 2 x RJ45 2.5GbE Ports, 84W Redundant

The ES1010-V3 is a high-performance computing server with intel System on Chip. It supports single FCBGA-1744 Intel® Celeron® processor 7305E. It supports up to 64 GB memory and 2X M.2 NVMe/SATA drive bays.

The new-generation ES2220-V3 accelerated computing server is mainly used in industrial automation, retail, smart medical expert systems, digital signage kiosks, interactive info systems, IoT gateway for smart factories, smart buildings, security, and surveillance.

Specifications
Form Factor
Fanless Embedded
Processor
Standard Configuration-1x Intel® Celeron® Processor 7305E-5C 1G 12W
Chipset
intel System on Chip
Drive Bays
1 SSD M.2 SATA 128GB 1 M.2 PCIe 4.0x 4 NVMe slot(s)
Memory
8GB DDR5-4800
Operating System Management
Windows 10/RHEL 9.0
Ethernet
2 RJ45 2.5 GbE LAN port(s)
Power Supply
1x 84W power supply
System BIOS
AMIUEFI
Operating Temperature
0°C ~ 50°C (32°F ~ 122°F)
Chassis (HxWxD)
95x44x150mm (7.68"x1.73"x5.94")
Gross Weight
4.3 lbs (1.95 kg)
