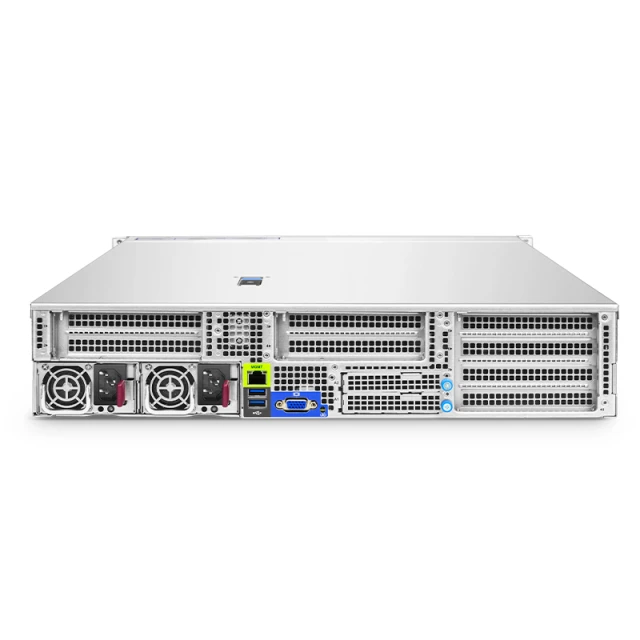

RS7265-V3, 2U Rackmount Server, Dual Socket SP5 AMD EPYC™ 9004 Series Processors, 4 x 32G DRAM, 1 x 2.5" SATA SSD Hot-swap Drive Bays, 1 x RJ45 1GbE Port, 1600W Redundant

RS7265-V3, 2U Rackmount Server, Dual Socket SP5 AMD EPYC™ 9004 Series Processors, 4 x 32G DRAM, 1 x 2.5" SATA SSD Hot-swap Drive Bays, 1 x RJ45 1GbE Port, 1600W Redundant

9850000 CFA

 3-Year Warranty


Product Highlights

Dual 4th Generation AMD EPYCTM 9004 Series Processors
24 DIMM Up to 6TB ECC DDR5 RDIMM
Support PCIe 5.0x16 AIOM Slot(s)
PCIe Slot Supports Double-width GPU/Accelerator Cards
Flexible Networking with 1 AIOM Slots (OCP NIC 3.0 Compatible)
4 Hot-swap Fans with Optimal Fan Speed Control
2 On-board PCIe 3.0x 4 M.2 NVMe 80mm/110mm (Boot)

2U Rackmount Server, Dual Socket SP5 AMD EPYC™ 9004 Series Processors, 4 x 32G DRAM, 1 x 2.5" SATA SSD Drive Bays, 1 x RJ45 1GbE Port, 1600W Redundant

The RS7265-V3 is a high-performance computing server with a system on chip. It supports dual socket SP5 AMD EPYC™ 9004 series Processors. It supports up to 24x 6 TB memory and 24x 2.5" NVMe/SAS/SATA Drive Bays, with optional support for 2x M.2 PCIe 3.0 x4 NVMe slot(s). Integrated BMC chip enables easy management, I/OA tech, link convergence, and binding redundancy. Optional KVM OVER IP for out-of-band management.

The new-generation RS7265-V3 accelerated computing server is mainly used in virtualization, software-defined storage, machine learning, cloud computing, and enterprise server.

Specifications
Form Factor
2U Rackmount
Processor
Standard Configuration-2x AMD EPYC™ 9334-32C 2.7 G 210W
Chipset
System on Chip
Drive Bays
Standard Configuration-1x 480G 2.5" SATA SSD Total 24 Bay(s)
Memory
Standard Configuration-4x 32G DDR5 RDIMM
Expansion Slots
Standard Configuration-3 PCIe 5.0x 16 , 2 PCIe 5.0x 8
Raid Controller
Support RAID 0,1,5,10
Fans
4x 8cm Heavy Duty Fans with Optimal Fan Speed Control
Ethernet
Standard Configuration-2-port 10GBase-T (AIOM)
Power Supply
2x 1600W Redundant Titanium Level (96%) Power Supplies
System BIOS
AMI 32MB SPI Flash EEPROM
Operating Temperature
10°C ~ 35°C (50°F ~ 95°F)
Chassis (HxWxD)
437x88.9x760mm (17.2"x3.5"x29.9")
Gross Weight
72 lbs (32.7 kg)
Management Software
BMC Web GUI/Redfish APIs/IPMI 2.0/SNMP3.0
Operating System Management
WS 2022/RHEL 9.0/ESXi 8.0

Product Spotlights

Workload Optimized Support

Supports multiple operating systems, including WS 2022, RHEL 8.8, RHEL 9.0, SLES 15SP4, SLES 15SP5, Oracle Linux 9.0, ESXi 7.0U3, ESXi 8.0, Hypervisor 8.2.1

Supports up to 256 cores and 128 threads per CPU

Supports 12 channels per CPU, up to 24 DDR5 DIMMs


Intelligent Management Automation

Supports Centralized Management Console licenses for health monitoring, power management, and firmware upgrades

Supports RESTful API to integrate server management into existing management infrastructure

Supports software tools: SSM, SPM, SUM

Supports Advanced Power Management licenses to manage power on heterogeneous server vendor products


Built-in Security

Supports trusted platform module (TPM) 2.0

Supports silicon root of trust (RoT) – NIST 800-193 Compliant

Supports secure boot, cryptographically signed firmware, and secure firmware updates

Supports automatic firmware recovery, supply chain security with remote attestation, runtime BMC protections, and system lockdown
