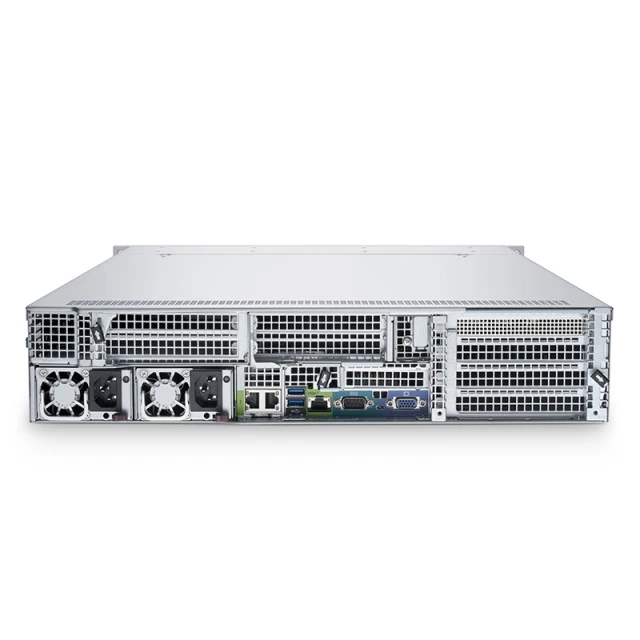

RS7260, 2U Rackmount Server, Dual Intel® Xeon® Scalable Processors, Up to 4 x 16GB DRAM, 2 x 2.5'' Hot-swap SAS HDD Drive Bays, 2 x RJ45 10GbE Ports, 1000W Redundant

RS7260, 2U Rackmount Server, Dual Intel® Xeon® Scalable Processors, Up to 4 x 16GB DRAM, 2 x 2.5'' Hot-swap SAS HDD Drive Bays, 2 x RJ45 10GbE Ports, 1000W Redundant

4116000 CFA


 3-Year Warranty


Product Highlights

Dual Socket 2nd Gen Intel® Xeon® Bronze 3204 Processors with up to 28 cores
24 DIMM Slots-Up to 6TB of 2933MHz ECC DDR4 RDIMM or LRDIMM
24 Hot-swap 2.5" drive bays: 24 SAS3 (4 hybrid ports - 4 NVMe opt.)
Easily expand with up to 8 PCIe 3.0 slots
RAID 0/1/5/6/10/50/60 support
Support a wide range of operating systems
Suitable for Enterprise and Data Center Applications in Virtualization

2U Rackmount Server, Dual Intel® Xeon® Scalable Processors, Up to 4 x 16GB DRAM, 2 x 2.5'' Hot-swap SAS HDD Drive Bays, 2x RJ45 10GbE Ports, 1000W Redundant

The RS7260 rack server is powered by dual Intel® Xeon® Scalable processors and is designed for video processing and general data center virtualization. It is powered by dual Intel Xeon Scalable processors, featuring up to 28 cores. It supports up to 6TB of memory when using RDIMM or LRDIMM DDR4 modules. The server also accommodates 24 x 2.5'' hot-swap NVMe/SATA/SAS drive bays. With an integrated BMC chip, it facilitates easy management, and binding redundancy.
Delivering maximum performance and flexibility, it is well-suited for enterprise applications.

Specifications
Form Factor
2U Rackmount
Processor
Standard Configuration - 2x Intel® Xeon® Bronze 3204 Processors 6 Core - 1.9 Ghz
Chipset
Intel C621 Chipset
Drive Bays
Standard Configuration - 2x 300GB 10K SAS HDD
Memory
Standard Configuration - 64GB RAM (4x 16GB)
Expansion Slots
Slot 1 - 1x PCIe 3.0x 16 | Slot 2 - 5x PCIe 3.0x 8 | Slot 3 - 1x PCIe 3.0x 8 | Slot 4 - 1x PCIe 3.0x 8
Ethernet
2x 10GBase-T Ports
Core Counts
28
Chassis (HxWxD)
3.5"x17.2"x27.76" (89x437x705.3mm)
Fans
4 heavy duty fans
Raid Controller
14 SATA3 (6 Gbps) Ports with controller | 4x NVMe Ports | RAID 0, 1, 5, 6, 10, 50, 60
Management Software:
Intel® Node Manager | Redfish API | IPMI 2.0 | KVM with dedicated LAN | NMI | SSM | SPM
Gross Weight
58lbs (26KG)
Power Supply
1000W Redundant with PMBus
Operating System Management
Windows Server 2019 | RedHat Linux EL 7.4

Product Spotlights

Workload Optimized Support

Support up to 2x 2rd Gen Intel® Xeon® Bronze Processors with 28 cores

6 memory channels, 24 memory DIMM slots, maximum support 6TB 2933MHz/DDR4

Support up to 8 PCIe 3.0 slots

Provide 24 SAS drives, including 4 hybrid bays that support NVMe (optional cables required)

Designed for virtualization, hyperconverge storage, cloud computing and high end enterprise server


Intelligent Management Automation

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Support Redfish API, IPMI 2.0, Intel® Node Manager, KVM with dedicated LAN, NMI, Watch Dog


Built-in Security

Hardware Root of Trust

Secure Boot

Secure Firmware Update

Automatic recovery from backup image or golden image in case of integrity check failure during firmware update or boot

Runtime protection through Trust Zone

Cryptographically signed firmware

Unique password for BMC ADMIN

System lockdown

BMC management account security


Quality Certifications
