Customized TS4620, 6U Tower Server, Up to 8 x 1TB of Memory, 4 x 3.5''/2.5'' Hot-swap SAS/SATA Drive Bays, 2 x RJ45 1GbE Ports, 550W Redundant

4300000 CFA

 3-Year Warranty

Product Highlights

8 DIMM Slots - Up to 1TB of 2933MHz ECC DDR4 RDIMM

4x 3.5"/2.5" SAS/SATA/SSD Hot-swappable Drive Bays

Easily Expand with up to 6 PCIe 3.0 Slots

Support RAID 0, 1, 5, 6, 10, 50, 60, JBOD

Support a Wide Range of Operating Systems

Suitable for Small and Medium-sized Enterprises and Users in Education & Government

6U Tower Server, Up to 8 x 1TB of Memory, 4 x 3.5''/2.5'' Hot-swap SAS/SATA Drive Bays, 2 x RJ45 1GbE Ports, 550W Redundant

TS4620 is the latest tower server product launched by FS Company. FS offers a range of pre-configured options for versatility to meet the needs of modern and evolving businesses. When configuring your custom server, you'll have the choice of 2 second-generation Intel® Xeon® Scalable series processors, 2~8 16/32G memory, 1~4 SAS/SATA/SSD hard drives and up to 6 PCIe Gen 3.0 expansion slots. Intel Quick Assistant Technology (Intel® QAT) provides secure high-performance and accelerated compression and realizes network, cloud service, and storage functions to provide reliable protection for virtual and cloud environments.

Specifications

Form Factor

6U Tower

Number of Processors

Chipset

Intel C621 Series Chipset

Memory

8 DIMM Slots - Support 2933MHz DDR4 RDIMM Memory, Up to 1TB

Drive Bays

4x 3.5"/2.5" SAS/SATA/SSD Hot-swappable Drive Bays

Expansion Slots

2 PCIe 3.0x 16, 3 PCIe 3.0x 8, 1 PCIe 3.0x 4

Raid Controller

Support RAID 0, 1, 5, 6, 10, 50, 60, JBOD

Fans

1 Fan

Ethernet

2x 1GBase-T Ports

Power Supply

550W 1+1 Redundant Power Supply

Management Software

BIOS | BMC | IPMI2.0 | iKVM

Operating System Management

Windows Server 2019 | RHEL8.2

Dimensions (HxWxD)

16.7''x7.8''x21.7'' (420x198x553mm)

Weight

24lbs (10.88KG)

Product Spotlights

Workload Optimized Support

Support up to 2x 2nd Gen Intel®xeon® Scalable Processors with 20 cores

Support Intel Quick Assistant Technology (Intel® QAT) and Intel Advanced Vector Extensions 512 (Intel® AVX-512)

8x memory channels, 8x memory DIMM slots, and up to 1TB 2933MHz/DDR4

M.2 is fully supported, and SD cards are optionally supported

Support 6 expansion slots, providing users with flexible connection options

Support up to 4 hot-plug 3.5''/2.5'' SATA/SAS/SSD hard drives

Intelligent Management Automation

Integrated BMC management to grasp the system operation status in real time, support pre-alarm, failure recovery function

Support IPMI2.0

Provide 1 RJ45 management network port

Support remote management

Support iKVM

Built-in Security

SAS RAID5 is optionally supported to improve data processing performance and protect data

Adopt intelligent cooling system to effectively reduce noise pollution and create a constant temperature space for the chassis

Fully shielded, anti-interference and anti-electromagnetic interference (EMI) design

Support Intel Quick Assistant Technology (Intel® QAT)

Support 1+1 fully redundant power supply optionally, support PMBUS power consumption monitoring, module loss alarm, etc.

Quality Certifications

Produits similaires

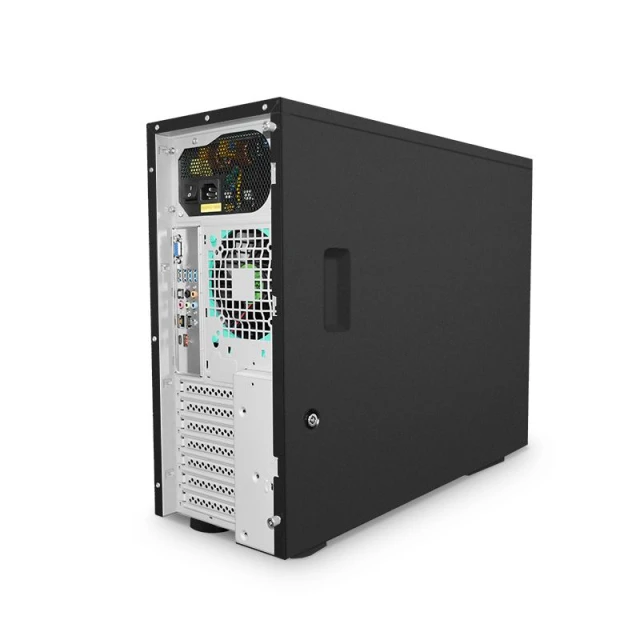

Customized TS1610, 6U Tower Server, Up to 4x 64GB of Memory, 4 x 3.5''/2.5'' Hot-swap SAS/SATA Drive Bays, 2 x RJ45 1GbE Ports, 550W Redundant

2950000 CFA

Voir le produit

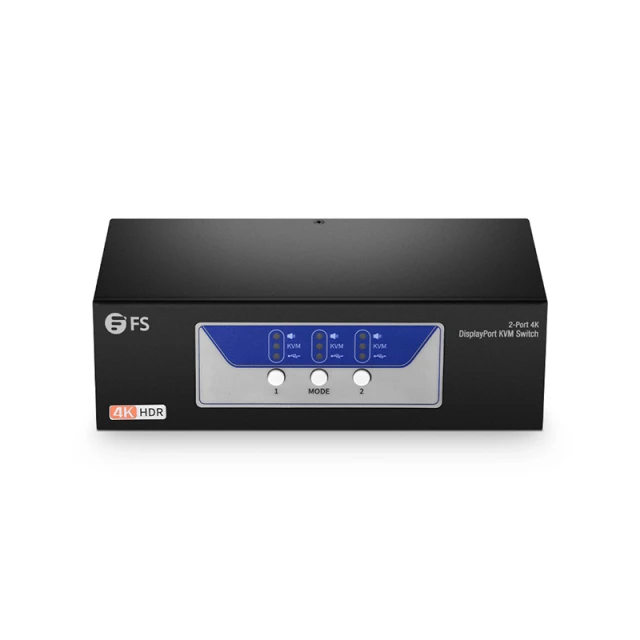

Desktop 2-Port DisplayPort KVM Switch with USB Peripheral & Audio, Cables Included

495000 CFA

Voir le produit

RS7260-V2, 2U Rackmount Server, Dual Intel® Xeon® Scalable Processors, 4 x 16GB DRAM, 2 x 3.5'' Hot-swap Hybrid SAS HDD Drive Bays, 2 x RJ45 10GbE Ports, 1200W Redundant

5095000 CFA

Voir le produit

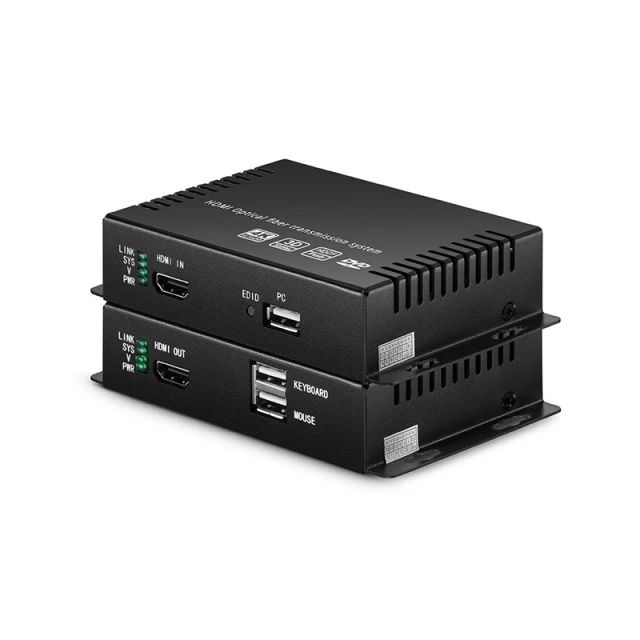

4K HDMI KVM USB2.0 Extender Set with Audio and EDID via Single LC Fiber for 10km
