Customized TS1610, 6U Tower Server, Up to 4x 64GB of Memory, 4 x 3.5''/2.5'' Hot-swap SAS/SATA Drive Bays, 2 x RJ45 1GbE Ports, 550W Redundant

Customized TS1610, 6U Tower Server, Up to 4x 64GB of Memory, 4 x 3.5''/2.5'' Hot-swap SAS/SATA Drive Bays, 2 x RJ45 1GbE Ports, 550W Redundant

2950000 CFA

 3-Year Warranty


Product Highlights

4 DIMM Slots - Up to 128GB of 2666MHz ECC DDR4 RAM
4x 3.5''/2.5'' SAS/SATA/SSD Hot-swappable Drive Bays
Easily Expand with 3 PCIe 3.0 Slots
Support RAID 0, 1, 5, 6, 10, 50, 60, JBOD
Support a Wide Range of Operating Systems
Suitable for Small and Medium-sized Enterprises and Users in Education & Government

TS1610, 6U Tower Server, Up to 4x 64GB of Memory, 4 x 3.5''/2.5'' Hot-swap SAS/SATA Drive Bays, 2 x RJ45 1GbE Ports, 550W Redundant

TS1610 is a tower single-way server based on Intel CoffeeLake architecture. FS offers a range of pre-configured options for versatility to meet the needs of modern and evolving businesses. When configuring your custom server, you'll have the choice of 1 8th/9th Gen Intel® Core™ i3 processor or Intel® Xeon® E-2100/2200 series processors, 1~4 16G memory, 1~4 SAS/SATA/SSD hard drives and up to 3 PCIe Gen 3.0 expansion slots.
The intelligent cooling system is adopted to effectively reduce noise pollution and create a constant temperature spaceforthecabinet; fully shielded to prevent electromagnetic radiation, anti-interference, and anti-static (EMI) design.

Specifications
Form Factor
6U Tower
Number of Processors
1
Chipset
Intel C242 Chipset
Memory
DDR4 ECC /Unbuffered(UDIMM) 2666MHz RAM, Up to 128GB
Drive Bays
4x 3.5''/2.5'' SAS/SATA/SSD Hot-swappable Drive Bays
Expansion Slots
1 PCIe 3.0 x8, 2 PCIe 3.0 x4
Raid Controller
Support RAID 0, 1, 5, 6, 10, 50, 60, JBOD
Fans
3 Non-hot-swappable Fans
Ethernet
2x 1GBase-T Ports
Power Supply
550W 1+1 Redundant Power Supply
Management Software
BIOS | BMC | IPMI2.0 | iKVM
Operating System Management
Windows Server 2019 | CentOs Linux 8.0
Dimensions (HxWxD)
16.7''x7.8''x21.7'' (425x198x553mm)
Weight
29.6lbs (13.44KG)

Product Spotlights

Workload Optimized Support

Support hyper-threading technology, up to 16 threads when 8 cores

2x memory channels, 4x memory DIMM slots, and up to 128GB 2666MHz/DDR4

Support 3 expansion slots, providing users with flexible connection options

Kernel acceleration mode 2 (Turbo Mode) kernel running dynamic acceleration

Support Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 instruction set

Support up to 4 hot-plug 3.5''/2.5'' SAS/SATA/SSD Drive Bays


Intelligent Management Automation

Integrated BMC management to grasp the system operation status in real time, support pre-alarm, failure recovery function

Support IPMI2.0

Provide 1 RJ45 management network port

Support remote management

Support iKVM


Built-in Security

Adopt intelligent cooling system to effectively reduce noise pollution and create a constant temperature space for the chassis

Fully shielded, anti-interference and anti-electromagnetic interference (EMI) design

Support 1+1 fully redundant power supply mode

Support RAID protection function to provide different levels of data redundancy protection

The motherboard provides TPM trusted module interface, users can choose according to their needs


Quality Certifications

Produits similaires

RS7260-V2, 2U Rackmount Server, Dual Intel® Xeon® Scalable Processors, 4 x 16GB DRAM, 2 x 3.5'' Hot-swap Hybrid SAS HDD Drive Bays, 2 x RJ45 10GbE Ports, 1200W Redundant

RS7260-V2, 2U Rackmount Server, Dual Intel® Xeon® Scalable Processors, 4 x 16GB DRAM, 2 x 3.5'' Hot-swap Hybrid SAS HDD Drive Bays, 2 x RJ45 10GbE Ports, 1200W Redundant

5095000 CFA
Voir le produit

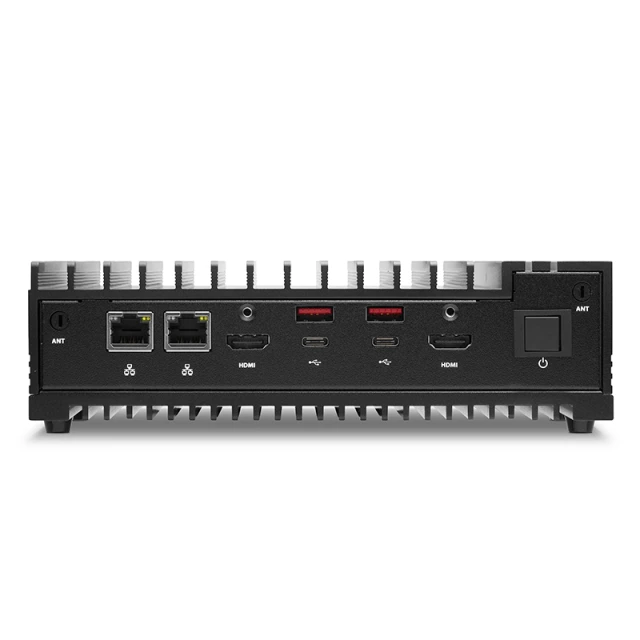

ES1010-V3, Fanless Embedded Rackmount Server, Single FCBGA-1744 Intel® Celeron® Processor 7305E, 1 x 8GB DRAM, 1 x M.2 NVMe/SATA Drive Bays, 2 x RJ45 2.5GbE Ports, 84W Redundant

ES1010-V3, Fanless Embedded Rackmount Server, Single FCBGA-1744 Intel® Celeron® Processor 7305E, 1 x 8GB DRAM, 1 x M.2 NVMe/SATA Drive Bays, 2 x RJ45 2.5GbE Ports, 84W Redundant

733000 CFA
Voir le produit

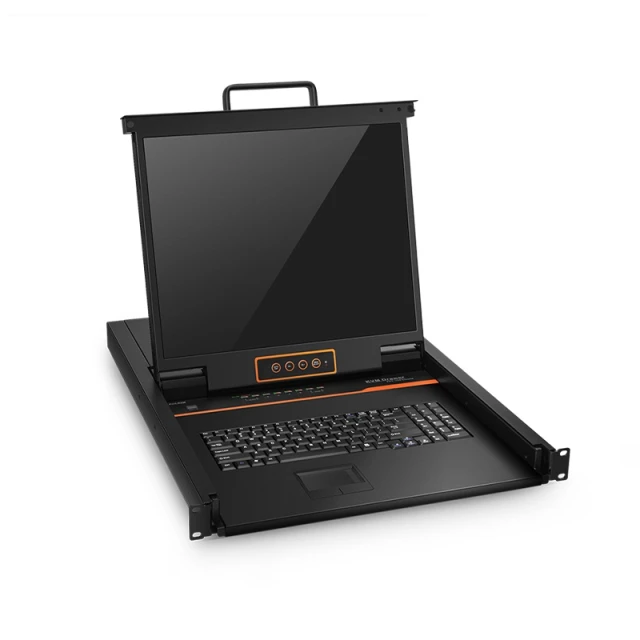

8-Port Cat5 1U Rack-Mount KVM Over IP Switch with 19" LED, 8 x RJ45 to VGA Interface Modules Included
