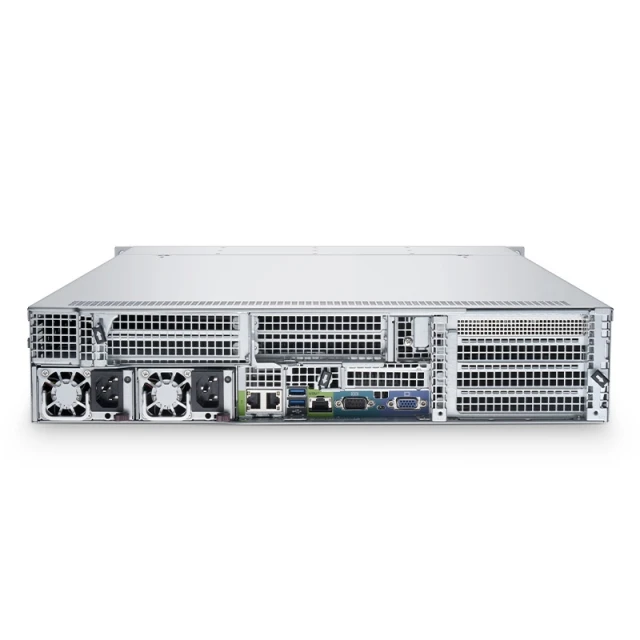

RS7260-V2, 2U Rackmount Server, Dual Intel® Xeon® Scalable Processors, 4 x 16GB DRAM, 2 x 3.5'' Hot-swap Hybrid SAS HDD Drive Bays, 2 x RJ45 10GbE Ports, 1200W Redundant

5095000 CFA

 3-Year Warranty

Product Highlights

Dual Socket 3rd Gen Intel® Xeon® Silver 4310 Processors with up to 40 Cores

32 DIMM Slots-Up to 8TB of 3200MHz ECC DDR4 RDIMM or LRDIMM

12x 3.5" Hot-swap Hybrid NVMe/SATA/SAS Drive Bays

Easily Expand with up to 8 PCIe 4.0 Slots

RAID 0/1/5/6/10/50/60 Support

Support a Wide Range of Operating Systems

Suitable for Enterprise and Data Center Applications in Virtualization

2U Rackmount Server, Dual Intel® Xeon® Scalable Processors, 4 x 16GB DRAM, 2 x 3.5'' Hot-swap Hybrid SAS HDD Drive Bays, 2x RJ45 10GbE Ports, 1200W Redundant

The RS7260-V2 is designed for virtualization, high-performance computing, software-defined storage, and cloud computing. This 2U server product has the latest 3rd generation Intel® Xeon® Scalable Processors, featuring up to 40 cores. It supports up to 8TB of memory when using RDIMM or LRDIMM DDR4 modules. The server also accommodates 12x 3.5" hot-swap hybrid NVMe/SATA/SAS drive bays. With an integrated BMC chip, it facilitates easy management, I/OA technology, and binding redundancy.
Delivering maximum performance and flexibility, it is well-suited for enterprise applications.

Specifications

Form Factor

2U Rackmount

Processor

Standard Configuration - 2x Intel® Xeon® Silver 4310 Processors 12 Core - 2.1Ghz

Chipset

Intel C621A Chipset

Drive Bays

Standard Configuration - 2x 300GB 10K SAS HDD

Memory

Standard Configuration - 64GB RAM (4x 16GB)

Expansion Slots

Raid Controller

SATA3 (6Gbps) via Intel® PCH 621A | NVMe (16GT/s) | RAID 0, 1, 5, 6, 10, 50, 60

Power Supply

1200W Redundant with PMBus

Ethernet

2x 10GBase-T Ports

Fans

4 heavy duty fans

Management Software

Operating System Management

Windows Server 2022 | CentOs 8.3

Chassis (HxWxD)

3.5"x17.2"x28.46" (89x437x723mm)

Gross Weight

58lbs (26KG)

Product Spotlights

Workload Optimized Support

Support up to 2x 3rd Gen Intel® Xeon® Silver Processors with 40 cores

Supports 8 channels per CPU, up to 32 DDR4 DIMMs at 3200 MT/s DIMM speed

Support up to 8 PCIe 4.0 slots

Support SATA, SAS, and NVMe in any combination

Designed for virtualization, high-performance computing, and cloud computing

Intelligent Management Automation

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Support Redfish API, IPMI 2.0, Intel® Node Manager, KVM with dedicated LAN, NMI, Watch Dog

Built-in Security

Hardware Root of Trust

Secure Boot

Secure Firmware Update

Automatic recovery from backup image or golden image in case of integrity check failure during firmware update or boot

Runtime protection through Trust Zone

Cryptographically signed firmware

Unique password for BMC ADMIN

System lockdown

BMC management account security

Quality Certifications
