8-Port Cat5 1U Rack-Mount KVM Over IP Switch with 19" LED, 8 x RJ45 to VGA Interface Modules Included

8-Port Cat5 1U Rack-Mount KVM Over IP Switch with 19" LED, 8 x RJ45 to VGA Interface Modules Included

1232000 CFA


2-Year Warranty


Product Highlights

Allowing IT Administrators to Monitor and Control Up to 8 Servers
Supports 1 Local and 1 Remote User for Simultaneous Access to the Server
19" LED with Support for Resolutions up to 1280×1024@60Hz
Supports AES, DES, And 3DES Encryption to Ensure Secure Access
Access to Computers or Servers with Windows, Linux, Unix, Mac, Solaris (Sun), Redhat and Ubuntu OS

8-Port Cat5 1U Rack-Mount KVM Over IP Switch with 19" LED, 8 x RJ45 to VGA Interface Modules Included

KVM-080219IP with integrated 19” LED console drawer is a digital KVM switch and console drawer combination. This advanced combination brings you KVM ports for 8 servers, and the flexible video interface supports VGA with a maximum video resolution of up to 1280×1024. It provides at-the-rack access with a friendly user interface and convenient hotkeys to quickly access connected servers. It is ideal for performing system maintenance, administration, running applications, and troubleshooting.

Specifications
KVM Ports
8x RJ45 port
Console Port
2x USB, 1x VGA
Max Connection
8
Port Selection
Buttons, UI, Web, Hotkey
Pixel Pitch(mm)
0.294 (H)x0.294 (W)
Display Size
19"
LED Monitor Color
16.7M
Contrast Ratio
1000: 1
Video Resolution
1280 x 1024@60Hz
Users
2 (1 local, 1 remote)
Input Voltage
AC 100-240V
Power Consumption
23W
Operating Temperature
0 to 50℃ (32 to 122℉)
Storage Temperature
-20 to 60℃ (-4 to 140℉)
Dimension (WxDxH)
17.64"x23.82"x1.67 (448x605x42.5mm)
Weight
29.54lbs (13.4kg)

Product Spotlights

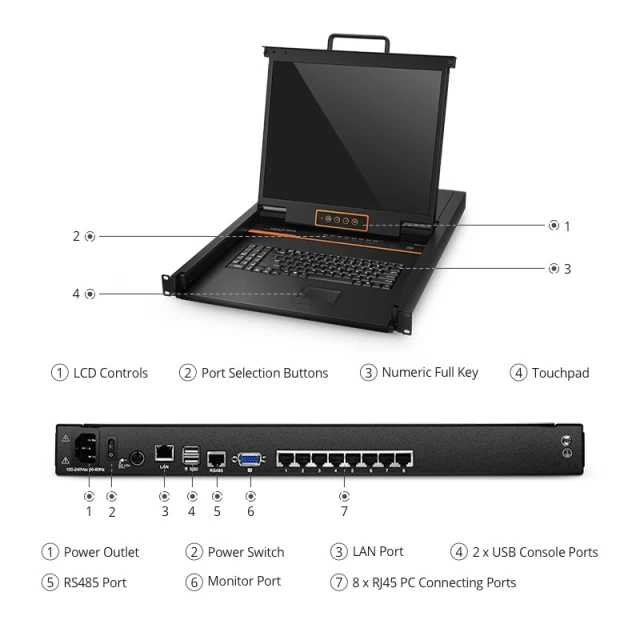

Hardware Features

Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables

LED module opens up to 108 degrees for a comfortable viewing angle

Provide an external VGA, keyboard, and mouse port

Dual power supply

The dual rail design allows the LED monitor to slide independently

Full screen or scalable video display


Remote Console

Remote management with KVM_Clients software or Web in Windows OS

Bios-level access and control

Support hotkey macro function

Message board for communication among remote users

Remote access with ActiveX-based plugin Internet Explorer in Windows OS

Support auto scan


Advanced Security

User account authentication and management, allowing up to 30 user accounts

Real-time equipment operating status data for administrators

Three levels of password security - View, Control, Deny

Support AES / DES / 3DES encryption

Configurable user and group permissions for server access and control

Support audit function


Quality Certifications
