Customized RS6240, 2U Rack Server,Up to 16 x 2TB of Memory, 8 x 3.5''/2.5'' Hot-swap SAS/SATA Drive Bays, 2 x RJ45 1GbE Ports, 800W Redundant

Customized RS6240, 2U Rack Server,Up to 16 x 2TB of Memory, 8 x 3.5''/2.5'' Hot-swap SAS/SATA Drive Bays, 2 x RJ45 1GbE Ports, 800W Redundant

6800000 CFA

 3-Year Warranty


Product Highlights

16 DIMM Slots - Up to 2TB of 2933MHz ECC DDR4 RDIMM
8x 3.5''/2.5" SAS/SATA/SSD Hot-swappable Drive Bays
Easily Expand with up to 6 PCIe 3.0 Slots
Support RAID 0, 1, 5, 6, 10, 50, 60, JBOD
Support a Wide Range of Operating Systems
Attached 2U Bezel to Prevent Hard Disk from Being Stolen, also Makes the Server Look Neat
Suitable for Enterprise and Data Center Applications in Virtualization

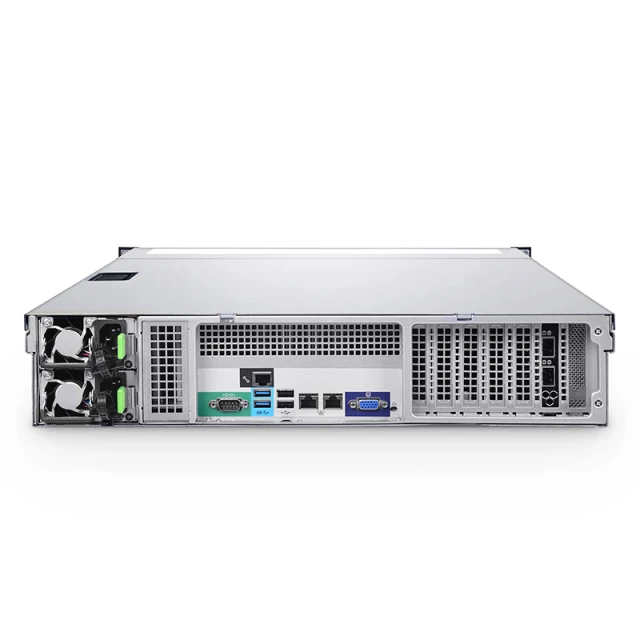

2U Rack Server, Up to 16 x 2TB of Memory, 8 x 3.5''/2.5'' Hot-swap SAS/SATA Drive Bays, 2 x RJ45 1GbE Ports, 800W Redundant

RS6240 adopts Intel C621 high-performance chipset, comes with a 2U standard bezel for free. FS offers a range of pre-configured options for versatility to meet the needs of modern and evolving businesses. When configuring your custom server, you'll have the choice of 2 second-generation Intel® Xeon® Scalable series processors, 2~16 16/32G memory, 1~8 SAS/SATA/SSD hard drives and up to 6 PCIe Gen 3.0 expansion slots. With an integrated BMC chip, it facilitates easy management.
RS6240 provides advanced management functions and storage technology with reliable scalability and high availability. It is suitable for big data analysis, large-scale virtualization and large-scale node technical computing scenarios.

Specifications
Form Factor
2U Rackmount
Number of Processors
2
Chipset
Intel C621 Series Chipset
Memory
16 DIMM Slots - Support 2933MHz DDR4 RDIMM Memory, Up to 2TB
Drive Bays
8x 3.5''/2.5" SAS/SATA/SSD Hot-swappable Drive Bays
Expansion Slots
6 PCIe 3.0x 8
Ethernet
2x 1GBase-T Ports
Power Supply
800W 1+1 Redundant Power Supply
Dimensions (HxWxD)
3.4''x17.2''x28.9'' (87x438x735mm)
Fans
4 Hot-swappable Redundant Fans
Raid Controller
Support RAID 0, 1, 5, 6, 10, 50, 60, JBOD
Management Software
BIOS | BMC | IPMI2.0 | iKVM
Weight
28.2lbs (12.8KG)
Operating System Management
Windows Server 2019 | VMware ESXi 6.7 | RedHat Linux 7.5

Product Spotlights

Workload Optimized Support

Support up to 2x 2nd Gen Intel®xeon® Scalable Processors with 28 cores

Support Intel Quick Assistant Technology (Intel® QAT) and Intel Advanced Vector Extensions 512 (Intel® AVX-512)

12 memory channels, 16 memory DIMM slots, maximum support 2TB 2933MHz/DDR4

Support U.2, with faster transmission speed, lower power consumption and higher reliability

Support 6 expansion slots, providing users with flexible connection options

Support up to 8 hot-plug 3.5''/2.5'' SATA/SAS/SSD hard drives


Intelligent Management Automation

Integrated BMC management to grasp the system operation status in real time, support pre-alarm, failure recovery function

Support IPMI2.0

Provide 1 RJ45 management network port

Support remote management

Support iKVM


Built-in Security

Adopt intelligent cooling system to effectively reduce noise pollution and create a constant temperature space for the chassis

Fully shielded, anti-interference and anti-electromagnetic interference (EMI) design

Support Intel Quick Assistant Technology (Intel® QAT)

Support 1+1 fully redundant power supply mode

Support PMBUS power consumption monitoring and module loss alarm

Support frequency reduction function, which can reduce system energy consumption at a low load

Support RAID protection function to provide different levels of data redundancy protection
