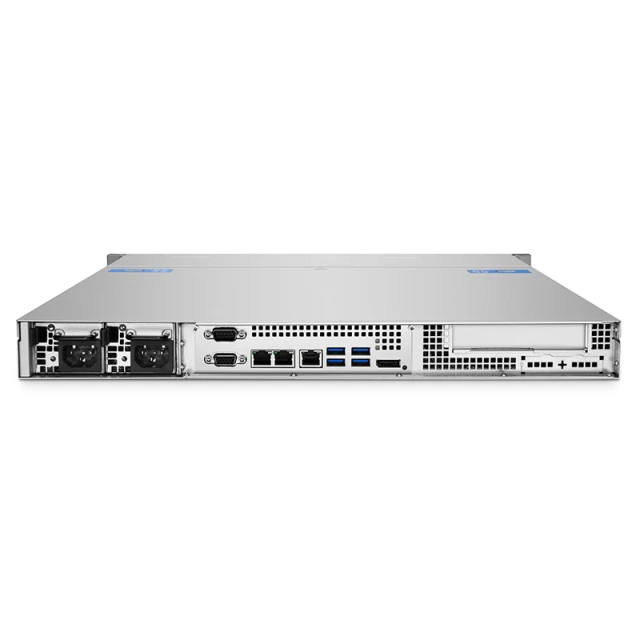

RS3110, 1U Rack Server, 1 x Intel® Xeon® Scalable Processor, 1 x 16GB of Memory, 1 x 3.5'' Hot-swap SATA Drive Bays, 2 x RJ45 1GbE Ports, 450W Redundant

1572000 CFA

 3-Year Warranty

Product Highlights

Single Socket Intel Xeon-E-2100/2200 Series Processor with up to 8 Cores

4 DIMM Slots-Up to 128GB of 2666MHz ECC DDR4 RAM

4x 3.5''/2.5'' SATA Hot-swappable Drive Bays

Easily Expand with 1 PCIe 3.0 Slots

Support a Wide Range of Operating Systems

Suitable for Enterprise/Campus Informatization Construction & E-government

1U Rack Server, 1 x Intel® Xeon® Scalable Processor, 1 x 16GB of Memory, 1x 2TB 3.5'' Hot-swap SATA Drive Bays, 2 x RJ45 1GbE Ports, 450W Redundant

The RS3110 is a high-performance computing server with Intel C246 chipset. It supports 8th/9th gen Intel® Core™ i3/i5/i7/i9 series and Intel® Xeon® E-2100/2200 series processors. The CPU includes integrated core graphics with hardware decoding and up to 1080P transcoding capability. It supports up to 4x 128GB memory and 4x 3.5"/2.5" SATA hot-swappable drives. Integrated BMC chip enables easy management, I/OA tech, link convergence, and binding redundancy. Optional KVM OVER IP for out-of-band management.
Intel SGX offers hardware-level security for safeguarding sensitive data in specific applications from malicious software or other threats.

Specifications

Form Factor

1U Rackmount

Processor

1x Intel Xeon E-2224G Processor - 3.5GHz/8M/4C/4T/Graphics P630/71W

Chipset

Intel C246 Chipset

Memory

DDR4 ECC/Unbuffered (UDIMM) 2666MHz RAM, Up to 128GB

Drive Bays

4x 3.5''/2.5'' SATA Hot-swappable Drive Bays

RAM

Standard Configuration - 1x 16GB DDR4 2666MHz ECC DDR4 RAM

Hard Drives

Standard Configuration - 1x 2TB 3.5'' SATA 7200RPM

Expansion Slots

1 PCIe 3.0x 8

Raid Controller

Standard Configuration - No Raid Card

Power Supply

450W 1+1 Redundant Power Supply

Ethernet

2x 1GBase-T Ports

Fans

4 Non-hot-swappable Fans

Management Software

BIOS | BMC | IPMI2.0 | iKVM

Operating System Management

Windows Server 2019 | CentOs Linux 8.0

Dimensions (HxWxD)

1.7"x16.9"x21.7" (44x430x550mm)

Gross Weight

37lbs (17KG)

Product Spotlights

Workload Optimized Support

Support hyper-threading technology, up to 16 threads when 8 cores

2 memory channels, 4 memory DIMM slots, maximum support 128GB 2666MHz/DDR4

Support up to 1 PCIe 3.0 slots

Kernel acceleration mode 2 (Turbo Mode) kernel running dynamic acceleration

Support Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 instruction set

Intelligent Management Automation

Integrated BMC management to grasp the system operation status in real time, support pre-alarm, failure recovery function

Support IPMI2.0

Provide 1 RJ45 management network port

Support remote management

Support iKVM

Built-in Security

Adopt intelligent cooling system to effectively reduce noise pollution and create a constant temperature space for the chassis

Fully shielded, anti-interference and anti-electromagnetic interference (EMI) design

Support 1+1 fully redundant power supply mode

The motherboard provides TPM trusted module interface, users can choose according to their needs

Supports Intel SGX (Software Guard Extensions) technology

Quality Certifications
