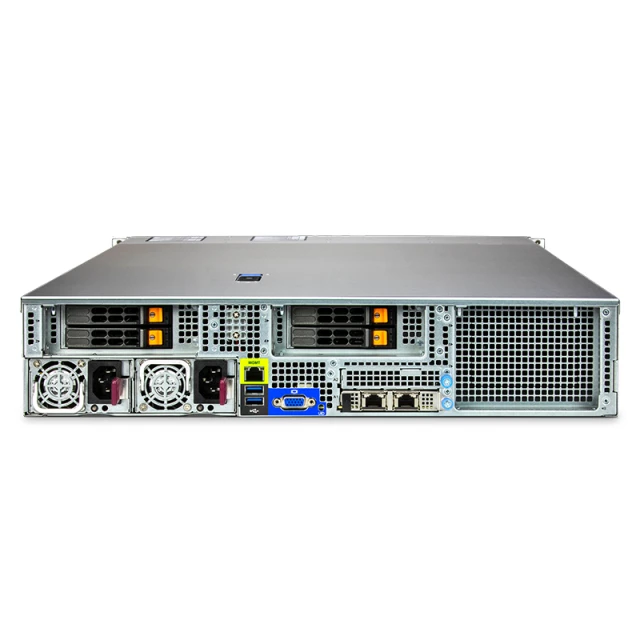

RS7260-V3, 2U Rackmount Server, Dual Socket Intel® Xeon® Scalable Processors, 2 x 32GB DRAM, 2 x 2.5" SATA SSD Hot-swap Drive Bays, 1 x RJ45 1GbE Port, 1200W Redundant

RS7260-V3, 2U Rackmount Server, Dual Socket Intel® Xeon® Scalable Processors, 2 x 32GB DRAM, 2 x 2.5" SATA SSD Hot-swap Drive Bays, 1 x RJ45 1GbE Port, 1200W Redundant

5600000 CFA


 3-Year Warranty


Product Highlights

Dual Socket 5th/4th Gen Intel® Xeon® Scalable Processors
32 DIMM Slots Supporting up to 8TB of Memory
PCIe 5.0x 8 Slots or PCIe 5.0x 16 Slots
PCIe Slot Supports Double-width GPU/Accelerator Cards
Flexible Networking with 2 AIOM Slots (OCP NIC 3.0 Compatible)
4 Hot-swap Fans with Optimal Fan Speed Control

2U Rackmount Server, Dual Socket Intel® Xeon® Scalable Processors,2 x 32GB DRAM, 2 x 2.5" SATA SSD Drive Bays, 1 x RJ45 1GbE Port, 1200W Redundant

The RS7260-V3 is a high-performance computing server with Intel® C741 chipset. It supports 4th/5th gen Intel® Xeon® Scalable processors. It supports up to 32x 8 TB memory and 12x 3.5" NVMe/SAS/SATA hot-swappable drives, with optional support for 2x M.2 NVMe/SATA slot(s). Integrated BMC chip enables easy management, I/OA tech, link convergence, and binding redundancy. Optional KVM OVER IP for out-of-band management.

The new-generation RS7260-V3 accelerated computing server is mainly used in virtualization, software-defined storage, machine learning, cloud computing, and enterprise servers.

Specifications
Form Factor
2U Rackmount
Processor
Standard Configuration-2x Intel® Xeon® Silver 4410Y Processor-12C 2.0G 150W
Chipset
Intel® C741
Drive Bays
Standard Configuration-2x 480G 2.5" SATA SSD Total 12 Bay(s)
Memory
Standard Configuration-2x 32G DDR5 RDIMM
Expansion Slots
Standard Configuration-4 PCIe 5.0x 16 , 2 PCIe 5.0x 16
Raid Controller
Support RAID 0,1,5,10
Fans
4 Heavy Duty Hot-swap Fans
Ethernet
Standard Configuration-2-port 10GBase-T(AIOM)
Power Supply
2x Redundant Hot-plug Power Supply
System BIOS
AMI 256MB SPI Flash
Operating Temperature
10°C ~ 35°C (50°F ~ 95°F)
Chassis (HxWxD)
437x88.9x803mm (17.2"x3.5"x31.6")
Gross Weight
63 lbs (28.6 kg)
Management Software
BMC Web GUI/Redfish APIs/IPMI 2.0/SNMP3.0
Operating System Management
WS 2022/RHEL 9.0/ESXi 8.0

Product Spotlights

Workload Optimized Support

Supports multiple operating systems, including WS 2022, RHEL 8.7, RHEL 9.0, SLES 15SP4, SLES 15SP5, Oracle Linux 9.0, ESXi 7.0U3, ESXi 8.0, Hypervisor 8.2.1

Supports up to 64 cores and 128 threads per CPU, with up to 320MB cache per CPU

Supports 8 channels per CPU, up to 32 DDR5 DIMM


Intelligent Management Automation

Supports Centralized Management Console licenses for health monitoring, power management, and firmware upgrades

Supports RESTful API to integrate server management into existing management infrastructure

Supports software tools: SSM, SPM, SUM

Supports Advanced Power Management licenses to manage power on heterogeneous server vendor products

Built-in Security

Supports trusted platform module (TPM) 2.0

Supports silicon root of trust (RoT) – NIST 800-193 Compliant

Supports secure boot, cryptographically signed firmware, and secure firmware updates

Supports automatic firmware recovery, supply chain security with remote attestation, runtime BMC protections, and system lockdown
