8-Port x1 User VGA 1U Rack-Mount USB KVM Switch with 19" LED, 8 VGA Cables Included

8-Port x1 User VGA 1U Rack-Mount USB KVM Switch with 19" LED, 8 VGA Cables Included

843000 CFA

 2-Year Warranty


Product Highlights

Control up to 128 Computers or Servers by Cascading 16 KVMs
19" LED with Support for Resolutions up to 1920×1080@60Hz
Access to Computers or Servers with Windows, Linux, Unix, Mac, Solaris (Sun), Redhat and Ubuntu OS
Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
Integrated KVM Console with Monitor, Keyboard/Touchpad in a 1U Height Console

8-Port VGA 1U Rack-Mount KVM Switch with 19" LED, 8 x VGA Cables Included

KVM-080119 with integrated 19” LED console drawer is a digital KVM switch and console drawer combination. This advanced combination brings you KVM ports for 8 servers and can be cascaded to 2 levels to support up to 128 connections, and the video interface supports VGA with a maximum video resolution of up to 1280 x 1024. It provides at-the-rack access with a friendly user interface and convenient hotkeys to quickly access connected servers. It is ideal for performing system maintenance, administration, running applications, and troubleshooting.

Specifications
Server Port
8x VGA port
Console Port
2xUSB, 1xVGA
Max Connection
128 (via Daisy-chain)
Port Selection
Button, Hotkeys, OSD
Pixel Pitch(mm)
0.1989 (H)x0.1989 (W)
Display Size
19"
LED Monitor Color
16.7M
Contrast Ratio
1000: 1
Video Resolution
1280 x 1024@60Hz
Users
1 (1 local)
Input Voltage
AC 100-240V
Power Consumption
21W
Operating Temperature
0 to 50℃ (32 to 122℉)
Storage Temperature:
-20 to 60℃ (-4 to 140℉)
Dimension (WxDxH)
17.64"x23.82"x1.67" (448x605x42.5mm)
Weight
29.32lbs (13.3kg)

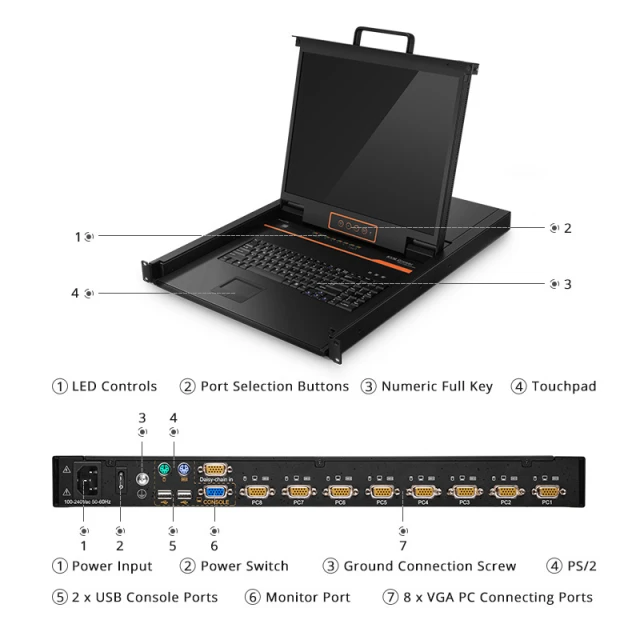

Product Spotlights

Hardware Features

Connect to a server or computer via standard VGA connectors

LCD module opens up to 108 degrees for a comfortable viewing angle

Support computers with USB and PS/2 keyboard and mouseDual power supply

The dual rail design allows the LCD monitor to slide independently

Full-screen or scalable video display


Convenient Management

Switch computers easily using front panel LEDs, keyboard hotkeys, or on-screen display (OSD)

Use the auto-scan feature to monitor selected computers

Operate all selected computers simultaneously in broadcast mode

Add or remove computers without powering down the switch (hot-pluggable)

Quickly select your computer by naming the server or entering the SN number

Adjust the on-screen display (OSD) for settings like auto adjust, exit, power on/off, brightness, and menu


Advanced Security

Two level password security–only authorized users view and control computers

Supports one administrator and four user accounts with a separate profile for each

Quality Certifications
