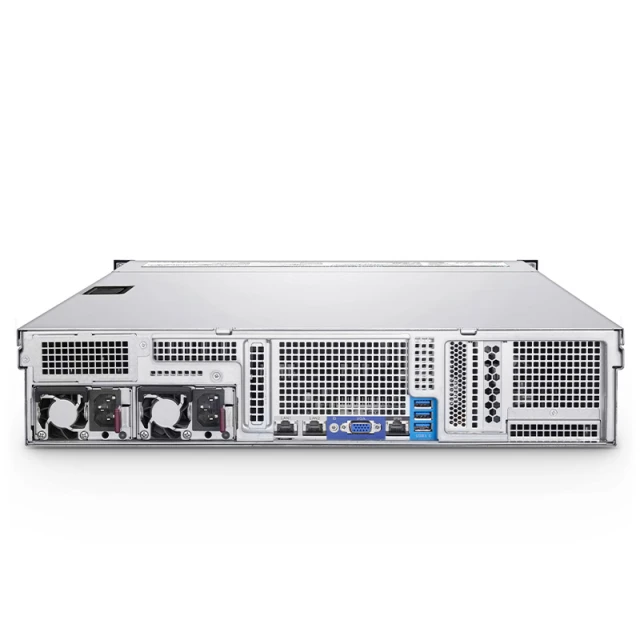

RS5230, 2U Rack Server, 2 x Intel® Xeon® Scalable Processors, 4 x 16GB of Memory, 4 x 3.5' Hot-swap SATA Drive Bays, 2 x RJ45 1GbE Ports, 550W Redundant

RS5230, 2U Rack Server, 2 x Intel® Xeon® Scalable Processors, 4 x 16GB of Memory, 4 x 3.5' Hot-swap SATA Drive Bays, 2 x RJ45 1GbE Ports, 550W Redundant

4180000 CFA

 3-Year Warranty


Product Highlights

Dual Socket 2nd Gen Intel® Xeon® Silver 4210 Processors with up to 28 Cores
16 DIMM Slots-Up to 2TB of 2933MHz ECC DDR4 RDIMM
12x 2.5/3.5" SSD/SAS/SATA Hot-swappable Drive Bays
Easily Expand with up to 3 PCIe 3.0 Slots and 1 OCP 2.0 Dedicated Slot (PCIe3.0)
Support RAID 0, 1, 5, 6, 10, 50, 60, JBOD
Support a Wide Range of Operating Systems
Attached 2U Bezel to Prevent Hard Disk from Being Stolen, also Makes the Server Look Neat
Suitable for Cloud Computing, Virtualization Application

2U Rack Server, 2 x Intel® Xeon® Scalable Processors, 4 x 16GB of Memory, 4 x 3.5'' Hot-swap SATA Drive Bays, 2 x RJ45 1GbE Ports, 550W Redundant

The RS5230 provides advanced management functions and storage technology, with reliable scalability and high availability. 2U server product with Intel C620 chipset, comes with a 2U standard bezel for free, supporting up to two Intel® Xeon® Scalable Series processors to meet the widest range of applications and environmental requirements. It supports up to 16x 2TB of memory capacity, and 12x 2.5/3.5" SAS/SATA hard drives, and up to 2 NVME U.2 SSDs with load balancing, link aggregation, and redundancy features to effectively reduce network latency.
Rich expansion capabilities: provides a variety of full-height and full-length PCI-E expansion slots.

Specifications
Form Factor
2U Rackmount
Processor
Standard Configuration- 2X Intel Xeon Silver 4210R Processor-10C 20T 85W
Chipset
Intel C620 Series Chipset
Memory
Standard Configuration-4x 16G DDR4 RDIMM
Drive Bays
Standard Configuration- 4x 3.5'' SATA Drive Bays
Expansion Slots
1 PCIe 3.0 x16, 2 PCIe 3.0 x8, 1 OCP Type A/C Dedicated Slot
Raid Controller
Support RAID 0, 1, 5, 6, 10, 50, 60, JBOD
Power Supply
550W 1+1 Redundant Power Supply
Ethernet
2x 1GBase-T Ports
Fans
4 Hot-swappable Redundant Fans
Dimensions (HxWxD)
3.4''x17.2''x28.9'' (87x438x735mm)
Management Software
BIOS | BMC | IPMI2.0 | iKVM
Weight
28.2lbs (12.8KG)
Operating System Management:
Windows Server 2019 | RHEL7.7

Product Spotlights

Workload Optimized Support

Support up to 2x 2nd Gen Intel® Xeon® Scalable Processors with 28 cores

Support Intel Quick Assistant Technology (Intel® QAT) and Intel Advanced Vector Extensions 512 (Intel® AVX-512)

12 x memory channels, 16 x memory DIMM slots, and up to 2TB 2933MHz/DDR4

Support U.2, with faster transmission speed, lower power consumption and higher reliability

Support 3 expansion slots, which provide users with flexible connection options

Support up to 12 hot-plug 3.5''/2.5'' SATA/SAS/SSD hard drives


Intelligent Management Automation

Integrated BMC management to grasp the system operation status in real time, support pre-alarm, failure recovery function

Support IPMI2.0

Provide 1 RJ45 management network port

Support remote management

Support iKVM


Built-in Security

Adopt intelligent cooling system to effectively reduce noise pollution and create a constant temperature space for the chassis

Fully shielded, anti-interference and anti-electromagnetic interference (EMI) design

Support Intel Quick Assistant Technology (Intel® QAT)

Support 1+1 fully redundant power supply mode

Support PMBUS power consumption monitoring and module loss alarm

Support frequency reduction function, which can reduce system energy consumption at a low load

Support RAID protection function to provide different levels of data redundancy protection


Quality Certifications
