16-Port VGA 1U Rack-Mount KVM Switch, 8 x VGA Cables Included

16-Port VGA 1U Rack-Mount KVM Switch, 8 x VGA Cables Included

418000 CFA

 2-Year Warranty


Product Highlights

Control Up to 256 Computers or Servers by Cascading 16 KVMs
The Resolution is Up to 2048×1536 with DDC2B Support
Auto Scan feature for Monitoring User-Selected Computer
Broadcast Mode Performs Operations Simultaneously on All Selected Computers
Convenient Computer Switching via Front Panel LEDs, Keyboard Hotkey Combination, or On-Screen-Display (OSD)
Access to Computers or Servers with Windows, Linux, Unix, Solaris (Sun), Redhat, Ubuntu OS

16-Port VGA 1U Rack-Mount KVM Switch, 8 x VGA Cables Included

KVM-1601 provides centralized access to 16 servers without the need for dedicated keyboards, mice, and monitors for each unit, effectively reducing costs and minimizing clutter. It features KVM ports for 8 servers and can be cascaded to 2 levels to support up to 256 connections. Connecting to a server is made easier with the use of standard VGA cables. It provides a friendly OSD (On-Screen Display) interface and hotkeys for quick and easy access connected server. It is ideal for performing system maintenance, administration, running applications, and troubleshooting.

Specifications
KVM Port
16x VGA
Console Port
2x USB, 1x VGA
Monitor Console
1-HDB-15 Female
Keyboard&Mouse
2x USB
Max Connection
256 (via Daisy-chain)
Port Selection
Button, Hotkeys, OSD
Users
1 (1 local)
Video Resolution
2048 x 1536@60Hz
Input Voltage
DC 12V
Power Consumption
6W
Operating Temperature
0 to 50℃ (32 to 122℉)
Storage Temperature
-20 to 60℃ (-4 to 140℉)
Relative Humidity
0-80%
Material
Metal
Weight
4.41 lbs (2kg)
Dimension (HxWxD)
1.69"x17.32"x6.65" (43x440x169mm)

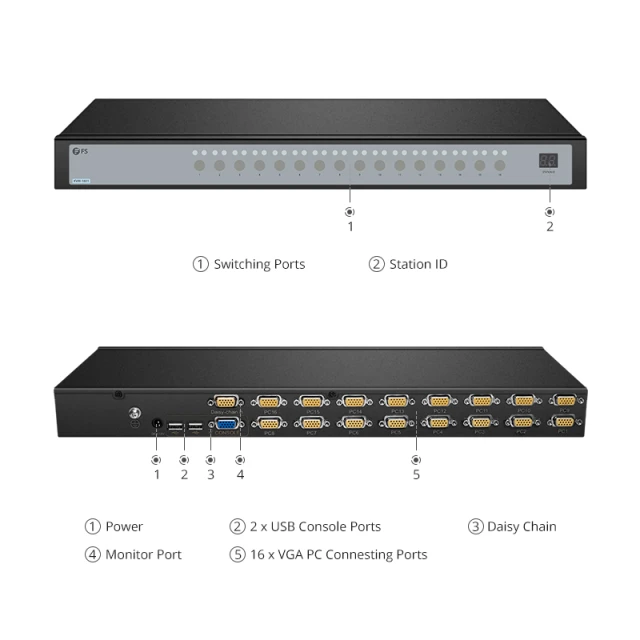

Product Spotlights

Hardware Features

1U design-Occupies only 1U of the rack space

Standard VGA connection-Connect to a server or computer via standard VGA connectors

Fit for standard 19” rack mounting

Support computers with USB keyboard and mouse

Convenient Management

Switch computers easily using front panel LEDs, keyboard hotkeys, or on-screen display (OSD)

Use the auto-scan feature to monitor selected computers

Operate all selected computers simultaneously in broadcast mode

Add or remove computers without powering down the switch (hot-pluggable)

Quickly select your computer by naming the server or entering the SN number

Adjust the on-screen display (OSD) for settings like auto adjust, exit, power on/off, brightness, and menu


Advanced Security

Two-level password security–only authorized users view and control computers Supports one administrator and four user accounts with a separate profile for each

Quality Certifications
