Customized RS5450, 4U Rack Server, Up to 16 x 4TB of Memory, 36 x 3.5''/2.5'' Hot-swap SAS/SATA Drive Bays, 2 x RJ45 1GbE Ports, 1200W Redundant

Customized RS5450, 4U Rack Server, Up to 16 x 4TB of Memory, 36 x 3.5''/2.5'' Hot-swap SAS/SATA Drive Bays, 2 x RJ45 1GbE Ports, 1200W Redundant

6800000 CFA

 3-Year Warranty


Product Highlights

16 DIMM Slots - Up to 4TB of 2933MHz ECC DDR4 RDIMM
36x 3.5"/2.5" SSD/SAS/SATA Hot-swappable Drive Bays
Easily Expand with up to 6 PCIe 3.0 Slots
Support RAID 0, 1, 5, 6, 10, 50, 60, JBOD
Support a Wide Range of Operating Systems
Suitable for Enterprise and Data Center Applications in Virtualization

4U Rack Server, Up to 16x 4TB of Memory, 36 x 3.5''/2.5'' Hot-swap SAS/SATA Drive Bays, 2 x RJ45 1GbE Ports, 1200W Redundant

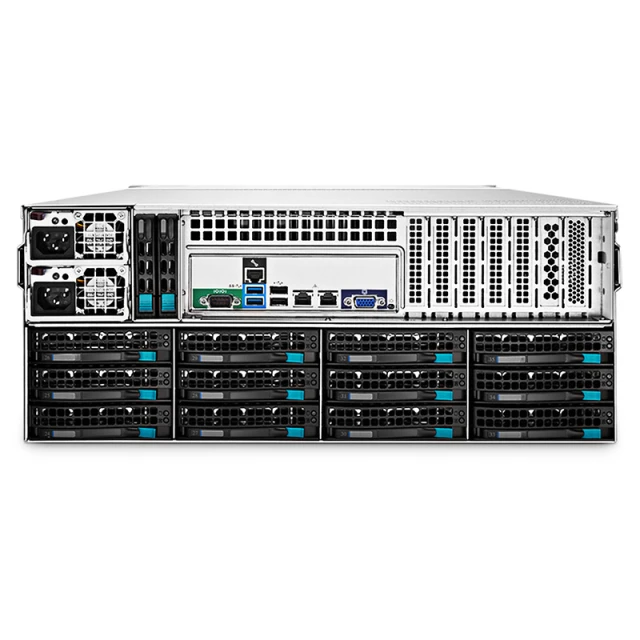

RS5450 is the latest 4U server product from FS, which adopts Intel C621 high-performance chipset. FS offers a range of pre-configured options for versatility to meet the needs of modern and evolving businesses. When configuring your custom server, you'll have the choice of 2 second-generation Intel® Xeon® Scalable series processors, 2~16 16/32G memory, 1~36 SAS/SATA/SSD hard drives and up to 6 PCIe Gen 3.0 expansion slots. With an integrated BMC chip, it facilitates easy management.
The RS5450 offers advanced management features and storage technology with reliable scalability and high availability. It is suitable for Internet companies and industries such as education, government, and finance.

Specifications
Form Factor
4U Rackmount
Number of Processors
2
Chipset
Intel C620 Series Chipset
Memory
16 DIMM Slots - Support 2933MHz DDR4 RDIMM Memory, Up to 4TB
Drive Bays
36x 3.5"/2.5" SSD/SAS/SATA Hot-swappable Drive Bays
Expansion Slots
4 PCIe 3.0x 16, 2 PCIe 3.0x 8
Ethernet
2x 1GBase-T Ports
Power Supply
1200W 1+1 Redundant Power Supply
Dimensions (HxWxD)
7''x17.2''x27.56'' (178x437x700mm)
Fans
7 Hot-swappable Redundant Fans
Raid Controller
Support RAID 0, 1, 5, 6, 10, 50, 60, JBOD
Management Software
BIOS | BMC | IPMI2.0 | iKVM
Weight
74.8lbs (33.92KG)
Operating System Management
Windows Server 2019 | RHEL 8.2

Product Spotlights

Workload Optimized Support

Support up to 2x 2nd Gen Intel®xeon® Scalable Processors with 28 cores and up to 10.4GT/s of the UPI

Support Intel Turbo Boost Technology, Hyper-Threading Technology and Advanced Vector Extension Instruction Set (AVX2.0)

16x memory DIMM slots, up to 2933Mhz

SATA3.0 is fully supported, and SAS 12Gb/s is also supported

Support up to 6x PCI-E Gen3 standard slots and LP standard expansion cards


Intelligent Management Automation

Integrated BMC management to grasp the system operation status in real time, support pre-alarm, failure recovery function

Support IPMI2.0

Provide 1 RJ45 management network port

Support remote management

Support iKVM


Built-in Security

Adopt intelligent cooling system to effectively reduce noise pollution and create a constant temperature space for the chassis

Fully shielded, anti-interference and anti-electromagnetic interference (EMI) design

Support Intel Trusted Execution Technology (Intel TXT)

Intel Advanced Encryption Standard New Directive (Intel AES-NI) could speed up and enhance encryption functions for faster and stronger enterprise-wide data protection

Support 1+1 fully redundant power supply mode

Support PMBUS power consumption monitoring and module loss alarm

Support RAID protection function to provide different levels of data redundancy protection

Quality Certifications
