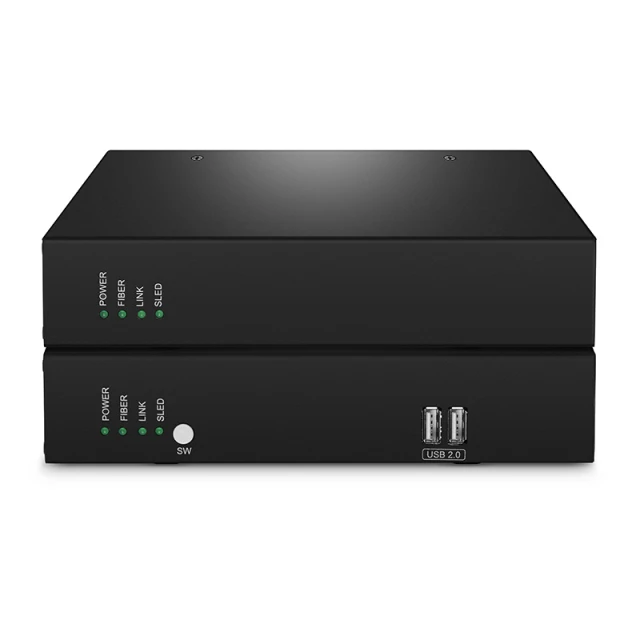

4K HDMI KVM USB HID Matrix over IP Transmitter Set with Audio and EDID via Cat5e/6/7 for 120m and SFP Fiber Optic for 20km

4K HDMI KVM USB HID Matrix over IP Transmitter Set with Audio and EDID via Cat5e/6/7 for 120m and SFP Fiber Optic for 20km

548000 CFA



Product Highlights

Provides Lossless and Low Latency Video Transmissions up to 3840x2160@60Hz
Flexible Connections Allow 40 Extender and Matrix Connections
Up to 120m with CAT5e/6/7 Cable or 20km through Fiber Optic
The Push and Pull Feature Shares Content Instantly with Just One Lick
Support USB2.0 and 2-Channel Digital Audio
Supports Power/Network Failover to Ensure Constant Availability Seamless Switching Grants the Best Productivity

4K HDMI KVM USB HID Matrix over IP Transmitter Set with Audio and EDID via Cat5e/6/7 for 120m and SFP Fiber Optic for 20km

The IP KVM matrix extenders are highly optimized KVM extenders. The point-to-point connection supports a transmission distance of 120m with CAT5e/6/7 Cable or 20km through Fiber Optic. This series of extenders can be connected to a 1G network switch to form a matrix switching system, which supports point-to-point (P2P) mode and matrix (Matrix) mode.
The matrix switching system allows computers and servers to be placed in a central server room, enhancing security and reducing temperature and noise, thereby creating a quieter and more user-friendly environment.

Specifications
Signal Type
HDMI
LAN Port
1x RJ45, 1x SFP
MIC&Speaker
3.5mm Stereo Jack
USB Port
1
Total Data Rate
1Gbps
Max Resolution
3840 x 2160@60Hz
Power Consumption
9W
Dimensions (HxWxD)
8.35"x4.5"x1.73" (212x114.3 x44mm)
Operating Temperature
0 to 50°C (32 to 122°F)
Relative Humidity
0-80%
