16-Port VGA 1U Rack-Mount KVM Switch with 19" LED, 16 x VGA Cables Included

16-Port VGA 1U Rack-Mount KVM Switch with 19" LED, 16 x VGA Cables Included

830000 CFA

 2-Year Warranty


Product Highlights

Control up to 256 Computers or Servers by Cascading 16 KVMs
19" LED with Support for Resolutions up to 1920×1080@60Hz
Access to Computers or Servers with Windows, Linux, Unix, Mac, Solaris (Sun), Redhat and Ubuntu OS
Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
Integrated KVM Console with Monitor, Keyboard/Touchpad in a 1U Height Console

16-Port VGA 1U Rack-Mount KVM Switch with 19" LED, 16 x VGA Cables Included

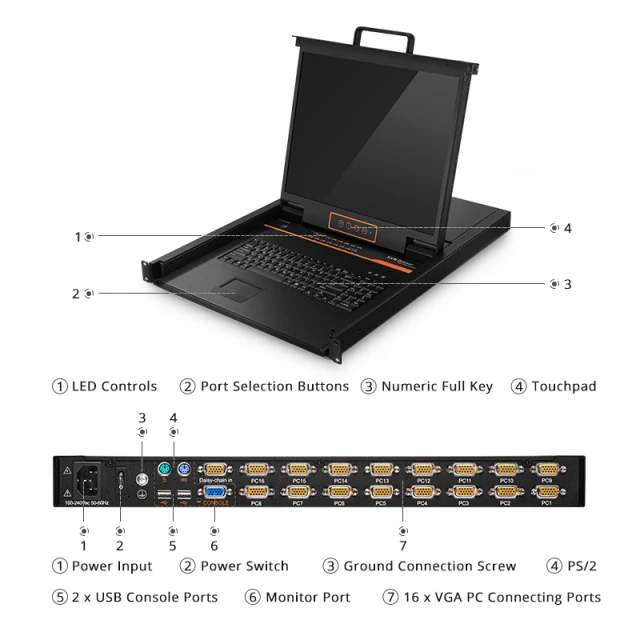

KVM-160119 with integrated 19'' LED console drawer is a digital KVM switch and console drawer combination. This advanced combination brings you KVM ports for 16 servers and can be cascaded to 2 levels to support up to 256 connections, and the video interface supports VGA with a maximum video resolution of up to 1280 x 1024. It provides at-the-rack access with a friendly user interface and convenient hotkeys to quickly access connected servers. It is ideal for performing system maintenance, administration, running applications, and troubleshooting.

Specifications
KVM Ports
16x VGA port
Console Port
2x USB, 1x VGA
Max Connection
256 (via Daisy-chain)
Port Selection
Button, Hotkeys, OSD
Pixel Pitch(mm)
0.2928 (H)x0.2928 (W)
Display Size
19"
LED Monitor Color
16.7M
Contrast Ratio
1000: 1
Video Resolution
1280 x 1024@60Hz
Users
1 (1 local)
Input Voltage
AC 100-240V
Power Consumption
23W
Operating Temperature
0 to 50℃ (32 to 122℉)
Storage Temperature
-20 to 60℃ (-4 to 140℉)
Dimension (WxDxH)
17.64"x23.82"x1.67" (448x605x42.5mm)
Weight
29.76lbs (13.5kg)

Product Spotlights

Hardware Features

Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables

LED module opens up to 108 degrees for a comfortable viewing angle

Provide an external VGA, keyboard, and mouse port

Dual power supply

The dual rail design allows the LED monitor to slide independently

Full screen or scalable video display


Remote Console

Remote management with KVM_Clients software or Web in Windows OS

Bios-level access and control

Support hotkey macro function

Message board for communication among remote users

Remote access with ActiveX-based plugin Internet Explorer in Windows OS

Support auto scan


Advanced Security

User account authentication and management, allowing up to 30 user accounts

Real-time equipment operating status data for administrators

Three levels of password security - View, Control, Deny

Support AES / DES / 3DES encryption

Configurable user and group permissions for server access and control

Support audit function


Quality Certifications
