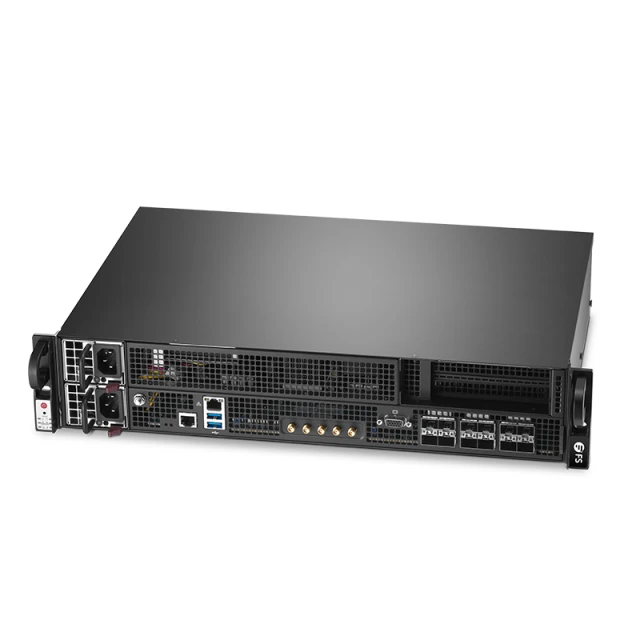

ES2220-V3, 2U Rackmount IoT Server, Single Socket Intel® Xeon® Scalable Processors,1 x 32GB DRAM, 1 x 2.5" SATA Drive Bays, 12 x QSFP28 25GbE and 1 x RJ45 1GbE Port, 800W Redundant

ES2220-V3, 2U Rackmount IoT Server, Single Socket Intel® Xeon® Scalable Processors,1 x 32GB DRAM, 1 x 2.5" SATA Drive Bays, 12 x QSFP28 25GbE and 1 x RJ45 1GbE Port, 800W Redundant

4400000 CFA

 3-Year Warranty


Product Highlights

Single Socket 5th/4th Gen Intel® Xeon® Scalable Processors
8 DIMM Slots with up to 2TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
2 PCIe 5.0x 8 FHHL Expansion Slots for Accelerator Add-On-Cards
2x 2.5" SATA Drive Bays
Onboard 12x 25GbE SFP28 Ports
Suitable for Network Function Virtualization, Cloud Computing, 5G CU/DU Edge Server, Flex RAN, and Open RAN vBBU

2U Rackmount IoT Server, Single Socket Intel® Xeon® Scalable Processors, 1 x 32GB DRAM, 1 x 2.5" SATA Drive Bays, 12 x QSFP28 25GbE and 1 x RJ45 1GbE Port, 800W Redundant

The ES2220-V3 is a high-performance computing server with Intel® C741 chipset. It supports single socket 4th/5th gen Intel® Xeon series processors. It supports up to 2 TB memory and 2 x2.5" SATA Drive Bays, with optional support for 1x M.2 NVMe slot(s). Integrated BMC chip enables easy management, I/OA tech, link convergence, and binding redundancy. Optional KVM OVER IP for out-of-band management.

The new-generation ES2220-V3 accelerated computing server is mainly used in network function virtualization, cloud computing, 5G CU/DU edge server, flex RAN, and open RAN vBBU.

Specifications
Form Factor
2U Rackmount
Processor
Standard Configuration-1x Intel® Xeon® Gold 5413S Processor-16C 2.0G 150W
Chipset
Intel® C741
Drive Bays
Standard Configuration-1x M.2 SATA 128GB Total 2 Bay(s)
Memory
Standard Configuration-1x 32G DDR5 RDIMM
Expansion Slots
Standard Configuration-2 PCIe 5.0x 8
Raid Controller
N/A
Fans
4x 4-PIN PWM 8cm Fan(s)
Ethernet
Standard Configuration-1 RJ45 1GbE 12 QSFP28 25GbE
Power Supply
2x 800W Redundant Power Supplies
System BIOS
AMI 256MB SPI Flash
Operating Temperature
0°C ~ 40°C (32°F ~ 104°F)
Chassis (HxWxD)
436.88x88.9x298.8mm (17.2"x 3.5"x11.8")
Gross Weight
22 lbs (10 kg)
Management Software
BMC Web GUI/Redfish APIs/IPMI 2.0/SNMP3.0
Operating System Management
RHEL 9.3/Oracle Linux 9.2
