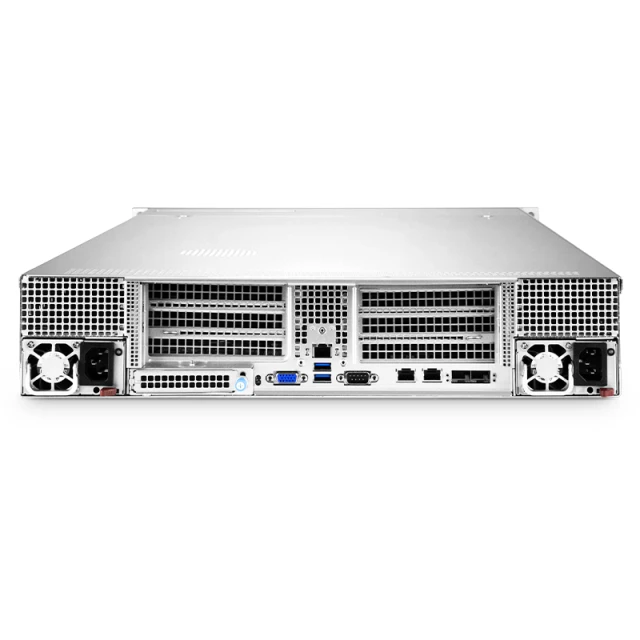

RS9260-V2, 2U Rackmount Server, Dual Socket Intel® Xeon® Scalable Processors, 4 x 32GB DRAM, 1 x 2.5" SATA Hot-swap Drive Bays, 2 x RJ45 10GBASE-T and 2 x SFP+ 10GbE Ports, 2000W Redundant

RS9260-V2, 2U Rackmount Server, Dual Socket Intel® Xeon® Scalable Processors, 4 x 32GB DRAM, 1 x 2.5" SATA Hot-swap Drive Bays, 2 x RJ45 10GBASE-T and 2 x SFP+ 10GbE Ports, 2000W Redundant

12700000 CFA

 3-Year Warranty


Product Highlights

Quad Socket 3rd Generation Intel® Xeon® Scalable Processors
48 DIMMs with Up to 12TB 3DS ECC DDR4-3200
PCIe Slot Supports Double-width GPU/Accelerator Cards
Flexible Networking with 1 AIOM Slots (OCP NIC 3.0 Compatible)
4 Hot-swap Fans with Optimal Fan Speed Control

2U Rackmount Server, Dual Socket Intel® Xeon® Scalable Processors, 4 x 32GB DRAM, 1 x 2.5" SATA Drive Bays, 2 x RJ45 10GBASE-T and 2 x SFP+ 10GbE Ports, 2000W Redundant

The RS9260-V2 is a high-performance computing server with Intel® C621 chipset. It supports quad socket Intel® Xeon® scalable processors. It supports up to 48x 12TB memory and 24x 2.5" SATA Drive Bays, with optional support for 2x M.2 NVMe/SATA slot(s). Integrated BMC chip enables easy management, I/OA tech, link convergence, and binding redundancy. Optional KVM OVER IP for out-of-band management.

The new-generation RS9260-V2 accelerated computing server is mainly used in business intelligence, ERP, CRM, scientific virtualization, in-memory databases, HCI, and SAP HANA.

Specifications
Form Factor
2U Rackmount
Processor
Standard Configuration-2x Intel® Xeon® Gold 6330H Processor-24C 2.0G 150W
Chipset
Intel® C621
Drive Bays
Standard Configuration-1x 480G 2.5" SATA SSD Total 24 Bay(s)
Memory
Standard Configuration-4x 32G DDR4 RDIMM
Expansion Slots
Standard Configuration-2 PCIe 3.0x 16, 4 PCIe 3.0x 8
Raid Controller
Support RAID 0,1,5,10
Fans
4x 8cm Heavy Duty Fans with Optimal Fan Speed Control
Ethernet
Standard Configuration-2-port 10GBase-T
Power Supply
2x 2000W Redundant Titanium Level (96%) Power Supply
System BIOS
AMI 32MB SPI Flash EEPROM
Operating Temperature
10°C ~ 35°C (50°F ~ 95°F)
Chassis (HxWxD)
439.5x89x803mm (17.3"x3.5"x31.6")
Gross Weight
71.5 lbs (32.43 kg)
Management Software
BMC Web GUI/Redfish APIs/IPMI 2.0/SNMP3.0
Operating System Management
WS 2022/RHEL 8.2/ESXi 8.0

Product Spotlights

Workload Optimized Support

Supports multiple operating systems, including WS 2022, WS 2019, RHEL 8.2, Ubuntu 20.04LTS, SLES 15 SP2, Oracle Linux 9.0, Oracle Linux 8.2, ESXi 7.0U2, ESXi 8.0, SAP HANA 2.0, Hypervisor 8.2

Supports up to 28 cores and 56 threads per CPU, up to 38.5MB Cache per CPU

Supports 6 channels per CPU, up to 48 DDR4 DIMMs


Intelligent Management Automation

Supports Centralized Management Console licenses for health monitoring, power management, and firmware upgrades

Supports RESTful API to integrate server management into existing management infrastructure

Supports software tools: SSM, SPM, SUM

Supports Advanced Power Management licenses to manage power on heterogeneous server vendor products


Built-in Security

Supports trusted platform module (TPM) 2.0

Supports silicon root of trust (RoT) – NIST 800-193 Compliant

Supports secure boot, cryptographically signed firmware, and secure firmware updates

Supports automatic firmware recovery, supply chain security with remote attestation, runtime BMC protections, and system lockdown
