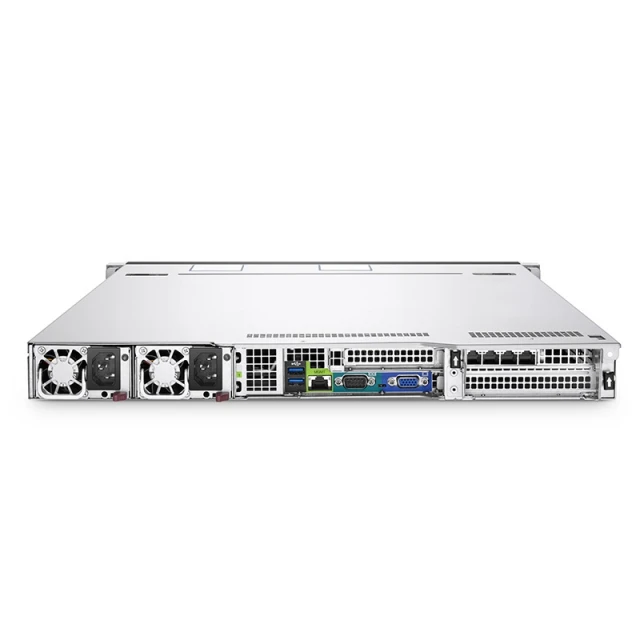

RS6140-V2, 1U Rackmount Server, Dual Intel® Xeon® Scalable Processors, 4 x 16GB DRAM, 2 x 2.5" Hot-swap SAS HDD Drive Bays, 4 x RJ45 10GbE Ports, 1200W Redundant

4916000 CFA

 3-Year Warranty

Product Highlights
Dual Socket 3rd Gen Intel® Xeon® Silver 4310 Processors with up to 40 Cores
32 DIMM Slots-Up to 8TB of 3200MHz ECC DDR4 RDIMM or LRDIMM
12x 2.5" Hot-swap Hybrid NVMe/SATA/SAS Drive Bays
Easily Expand with up to 4 PCIe 4.0 Slots
RAID 0/1/5/6/10/50/60 Support
Support a Wide Range of Operating Systems
Suitable for Enterprise and Data Center Applications in Virtualization

1U Rackmount Server, Dual Intel® Xeon® Scalable Processors, 4 x 16GB DRAM, 2 x 2.5" Hot-swap SAS HDD Drive Bays, 4x RJ45 10GbE Ports, 1200W Redundant

The RS6140-V2 is a slim 1U dual-socket server designed for virtualization, high-performance computing, and cloud computing. With support for Intel’s Xeon Scalable processors from the 3rd generation line of processors, it supports up to 8TB of memory. On the front of the system, there are 12x 2.5” drive bays with support for NVMe, SATA, and SAS storage devices. Integrated BMC chip enables easy management.
Intel SGX offers hardware-level security for safeguarding sensitive data in specific applications from malicious software or other threats.

Specifications

Form Factor

1U Rackmount

Processor

Standard Configuration - 2x Intel® Xeon® Silver 4310 Processors 12 Core - 2.1 Ghz

Chipset

Intel C621A Chipset

Drive Bays

Standard Configuration - 2x 300GB 10K SAS HDD

Memory

Standard Configuration - 64GB RAM (4x 16GB)

Expansion Slots

Slot 1 - PCIe 4.0x 16 | Slot 2 - PCIe 4.0x 16 | Slot 3 - PCIe 4.0x 16 | Slot 4 - PCIe 4.0x 16

Raid Controller

SATA3 (6Gbps) via Intel PCH 621A | NVMe (16GT/s) | RAID 0, 1, 5, 6, 10, 50, 60

Fans

8 heavy duty fans

Ethernet

4x 10GBase-T Ports

Power Supply

1200W Redundant with PMBus

Management Software

Operating System Management

Windows Server 2022 64bit | VMWar ESXi 7.0 u2 GA x64

Chassis (HxWxD)

1.7"x17.2"x29.1" (43x437x739mm)

Gross Weight

41 lbs (18.6 kg)

Product Spotlights

Workload Optimized Support

Dual CPUs support up to 40 cores and 80 threads

Supports 8 channels per CPU, up to 32 DDR4 DIMMs at 3200 MT/s DIMM speed

Intel® Optane™ persistent memory 200 series

Support up to 4 PCIe 4.0 slots

Support SATA, SAS, and NVMe in any combination

Designed for virtualization, high-performance computing, and cloud computing

See less 

Intelligent Management Automation

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Support Redfish API, IPMI 2.0, Intel® Node Manager, KVM with dedicated LAN, NMI, Watch Dog

See less 

Built-in Security

Hardware Root of Trust

Secure Boot

Secure Firmware Update

Automatic recovery from backup image or golden image in case of integrity check failure during firmware update or boot

Runtime protection through Trust Zone

Cryptographically signed firmware

Unique password for BMC ADMIN

System lockdown

BMC management account security

See less 

Quality Certifications
