NVIDIA/Mellanox Compatible 400GBASE-FR4 QSFP112 PAM4 1310nm 2km DOM Duplex LC/UPC SMF InfiniBand NDR Optical Transceiver Module for ConnectX-7 HCA

NVIDIA/Mellanox Compatible 400GBASE-FR4 QSFP112 PAM4 1310nm 2km DOM Duplex LC/UPC SMF InfiniBand NDR Optical Transceiver Module for ConnectX-7 HCA

969000 CFA


 5-Year Warranty
30-Day Returns
30-Day Exchange


Product Highlights

Qualified for InfiniBand NDR End-to-End Systems
Built-in Marvell 6nm DSP Chip, Max. Power Consumption 10W
Low Bit Error Rate (BER) with FS InfiniBand NDR Systems
Support 800G-to-Two 400G Links for Switch-to-Adapter
4x106.25G PAM4 Retimed 400GAUI-4 Electrical Interface
Hot-pluggable QSFP112 Form Factor
Compliant with QSFP-112 MSA, CMIS Rev 4.0, IEEE 802.3cu and Class 1 Laser Safety
High-speed Electrical Compliant to
100% Verified by the Original, Perfectly Compatible with NVIDIA ConnectX-7 Adapters

NVIDIA/Mellanox Compatible 400GBASE-FR4 QSFP112 InfiniBand NDR Optical Transceiver Module (SMF, 1310nm, 2km, LC, DOM)

The NVIDIA/Mellanox Compatible QSFP112 InfiniBand NDR Optical Transceiver is an InfiniBand 400Gb/s Single-port QSFP112, FR4 single-mode parallel transceiver using a single, 4-channel Duplex LC/UPC optical connector. The Reach 4-channel (FR4) design uses 100G-PAM4 modulation and has a maximum fiber reach of 2km using OS2 single mode fibers. It is qualified for use in InfiniBand NDR end-to-end systems.
It is the ideal solution for supercomputing, seamlessly integrating into computing and storage infrastructure to ensure efficient high-performance interconnectivity. Used in ConnectX-7/QSFP112 adapters linked to Twin-port transceivers in 2x400G IB switches.


Note: The FS P/N is changed from Q112-FR4-400G to QSFP112-FR4-400G, but the product is the same. Only the FS P/N has been changed.

Specifications
Part Number
QSFP112-FR4-400G
Vendor Name
FS
Form Factor
QSFP112
Max Data Rate
425Gbps (4x 106.25Gbps)
Wavelength
1310nm
Max Cable Distance
2km
Connector
Duplex LC UPC
Media
SMF
Transmitter Type
EML
Receiver Type
PD
TX Power
-3.3~3.5dBm
Minimum Receiver Power
-7.3dBm
Power Budget
4dB
Receiver Overload
3.5dBm
Power Consumption
<10W
Extinction Ratio
＞3.5dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Modulation (Electrical)
4x 106.25Gb/s PAM4
Modulation (Optical)
4x 106.25Gb/s PAM4
Core Size
9μm
Packaging Technology
COC
Protocols
IEEE 802.3cu, OIF-CEI-112G-VSR-PAM4, CMIS Rev 4.0, QSFP-112 MSA
Warranty
5 Years
Quality Certifications

Produits similaires

15m (49ft) NVIDIA/Mellanox MFS1S50-H015V Compatible 200G QSFP56 to 2 x 100G QSFP56 InfiniBand HDR Active Optical Breakout Cable for Quantum Switches and ConnectX-6 HCA

15m (49ft) NVIDIA/Mellanox MFS1S50-H015V Compatible 200G QSFP56 to 2 x 100G QSFP56 InfiniBand HDR Active Optical Breakout Cable for Quantum Switches and ConnectX-6 HCA

596000 CFA
Voir le produit
MQM9700-NS2F, NVIDIA® 64-Port NDR 400G InfiniBand Data Center Switch, 32 OSFP Ports, Managed, x86 Dual Core, NVIDIA Quantum™-2 Chip, P2C Airflow

MQM9700-NS2F, NVIDIA® 64-Port NDR 400G InfiniBand Data Center Switch, 32 OSFP Ports, Managed, x86 Dual Core, NVIDIA Quantum™-2 Chip, P2C Airflow

22700000 CFA
Voir le produit

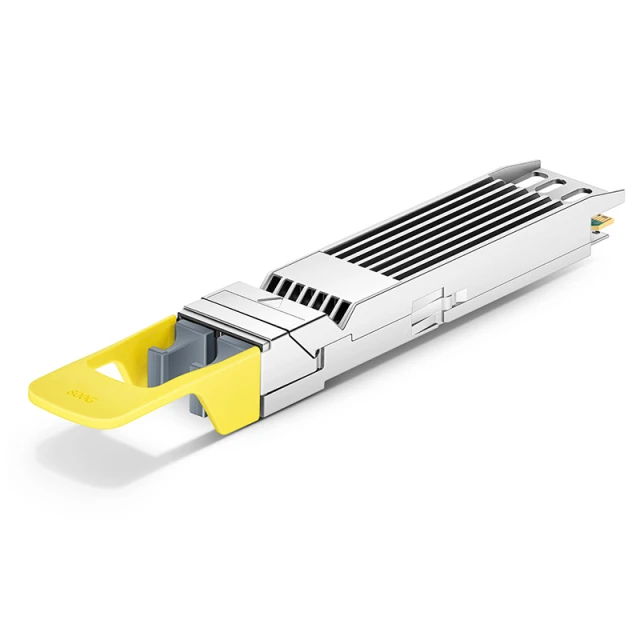

NVIDIA/Mellanox MMS4X00-NM Compatible 800GBASE 2 x DR4/DR8 OSFP Finned Top PAM4 1310nm 500m DOM Dual MPO-12/APC SMF InfiniBand NDR Optical Transceiver Module for Quantum-2 Switches
