NVIDIA/Mellanox MMS4X00-NM Compatible 800GBASE 2 x DR4/DR8 OSFP Finned Top PAM4 1310nm 500m DOM Dual MPO-12/APC SMF InfiniBand NDR Optical Transceiver Module for Quantum-2 Switches

NVIDIA/Mellanox MMS4X00-NM Compatible 800GBASE 2 x DR4/DR8 OSFP Finned Top PAM4 1310nm 500m DOM Dual MPO-12/APC SMF InfiniBand NDR Optical Transceiver Module for Quantum-2 Switches

890000 CFA


 5-Year Warranty
30-Day Returns
30-Day Exchange


Product Highlights

Qualified for InfiniBand NDR End-to-End Systems

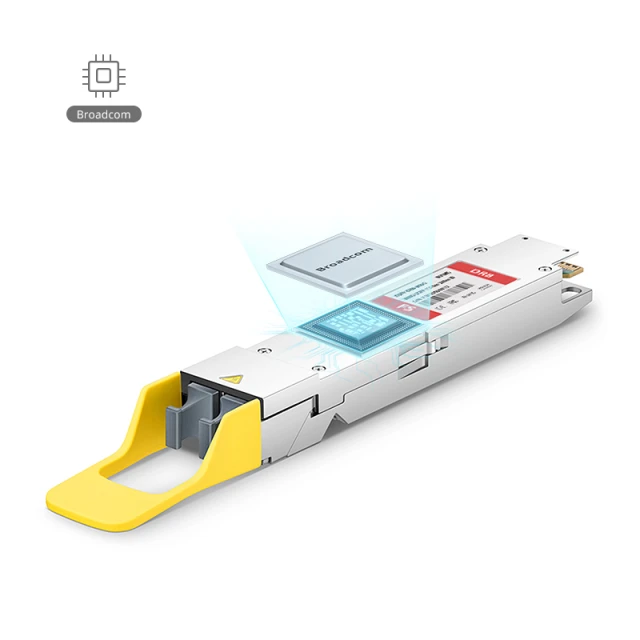

Built-in Broadcom 7nm DSP Chip, Max. Power Consumption 16.5W
Finned-Top OSFP Used in Quantum-2 Air-Cooled Switches
Support 800G-to-800G for Switch-to-Switch or 800G-to-Two 400G Links to ConnectX-7
8x 100G-PAM4 Electrical to Dual 4x 100G-PAM4 Optical Parallel
100% Verified by the Original, Perfectly Compatible with NVIDIA QM9700/9790 Devices
Compliant with OSFP MSA, IEEE 802.3ck, RoHS, and Class 1 Laser Safety, with DDM Support

NVIDIA/Mellanox MMS4X00-NM Compatible 800G OSFP DR8 PAM4 InfiniBand NDR Optical Transceiver (2x DR4, 1310nm, 500m, Dual MPO-12/APC, DOM, Finned Top)

The NVIDIA/Mellanox InfiniBand MMS4X00-NM Compatible OSFP Optical Transceiver is an 800Gb/s 2x400Gb/s Twin-port OSFP, DR8 single mode, parallel, 8-channel transceiver using two, 2-fiber, 4-channel MPO-12/APC optical connectors at 400Gb/s each. The parallel single mode, reach 8-channel (DR8) design uses 100G-PAM4 modulation and has a maximum fiber reach of 500-meters using 8 single mode fibers. It is qualified for use in InfiniBand NDR end-to-end systems.
It is the ideal solution for supercomputing, seamlessly integrating into computing and storage infrastructure to ensure efficient high-performance interconnectivity. Used in Quantum-2 air-cooled switches.

Specifications
NVIDIA/Mellanox InfiniBand Compatible
MMS4X00-NM
Vendor Name
FS
Form Factor
OSFP Finned Top
Max Data Rate
850Gbps (8x 106.25Gbps)
Wavelength
1310nm
Max Cable Distance
500m
Connector
Dual MTP/MPO-12 APC
Media
SMF
Transmitter Type
EML
Receiver Type
PIN
TX Power
-2.9~4.0dBm
Minimum Receiver Power
-5.9dBm
Power Budget
3dB
Receiver Overload
5dBm
Power Consumption
≤16.5W
Extinction Ratio
>3.5dB
Modulation (Electrical)
8x106.25Gb/s PAM4
Modulation (Optical)
Two ports 4x106.25Gb/s PAM4
Packaging Technology
COB (Chip on Board) Packaging
Modulation Format
PAM4
CDR (Clock and Data Recovery)
TX & RX Built-in DSP
Inbuilt FEC
No
Protocols
IEEE 802.3cu-2021, IEEE P802.3ck D2.2
Warranty
5 Years

Quality Certifications
