Mini Unmanaged 1x 10/100/1000Base-T RJ45 to 1x 1000Base-X SFP Slot Gigabit Ethernet Media Converter, American Plug Standard

56000 CFA

2-Year Warranty

30-Day Returns

30-Day Exchange

Product Highlights

1x 10/100/1000Mbps Auto-Negotiation RJ45 Port Supporting Auto-MDI/MDIX

Extends Fiber Distance up to 2KM (MM fiber) or 160KM (SM/WDM fiber) with SFP Modules

Auto-negotiation of Half-Duplex / Full-Duplex Transfer Mode

Complies with IEEE802.3U IEEE802.3z 1000Base-TX/FX IEEE802.3ab

Advanced Features: LFP (Link Fault Pass Through)

LEDs Indicate Ethernet and Fiber Link Status at a Glance

Plug-and-play, Support 1U 12 Slots Chassis & Stand-alone Use

Cost-effective/Small and Lightweight

1x 10/100/1000Base-T RJ45 to 1x 1000Base-X SFP Slot Mini Gigabit Ethernet Media Converter, AC 100V~240V

The UMC-GA1F1T Mini Gigabit Ethernet Media Converter bridges 1000BASE-SX/LX fiber to 10/100/1000Base-T copper networks, enabling fiber extensions up to 2KM (Multimode) or 160KM (Single Mode/WDM) via SFP modules. Its integration of Link Fault Pass-through (LFP) technology promotes efficient network maintenance and reduces downtime. With options for desk, wall, or chassis installation, the UMC-GA1F1T is a versatile solution for ISP networks and small office environments.
It is also compatible with various transceivers, including 1000Base SFP, BIDI, and CWDM modules. Be sure that the wavelength, speed rate, and the distance of the transceiver modules used at the both ends of the media converter are consistent.

Specifications

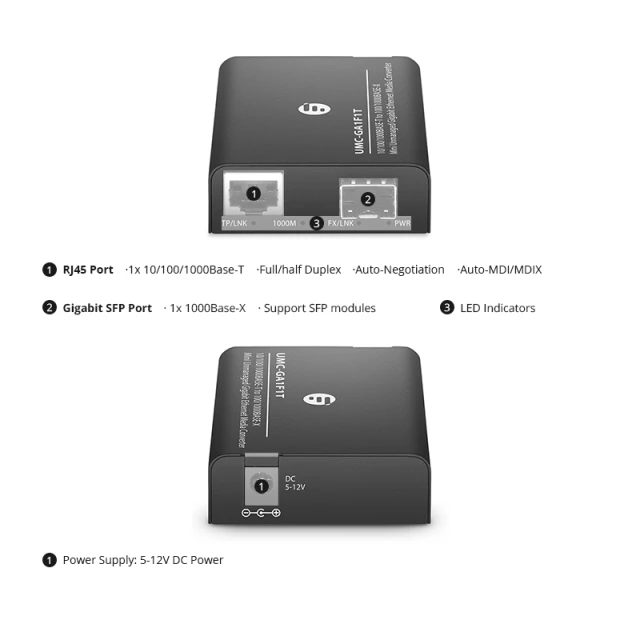

Ports

1x Gigabit SFP Port
1x 10/100/1000M RJ45 Port (Auto MDI/MDIX)

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x

Cable Type (Fiber)

Multimode 50/125µm, 62.5/125µm
Single-mode 9/125µm

Cable Type (Copper)

UTP Cat 5, 5e, 6 Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)

LED Indicators

TP/LNK,1000M, FX/LNK, PWR

DIP Switch
