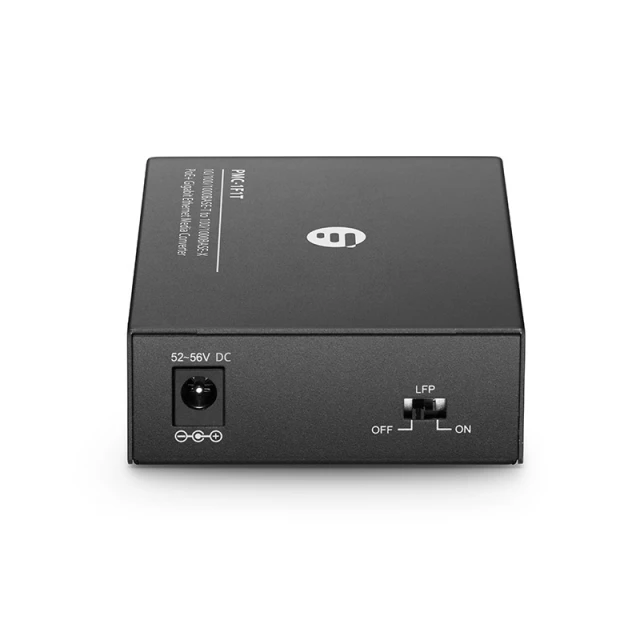

1x 10/100/1000Base-T to 1x 100/1000Base-X SFP Slot Gigabit Ethernet PoE+ Media Converter, British Plug Standard

1x 10/100/1000Base-T to 1x 100/1000Base-X SFP Slot Gigabit Ethernet PoE+ Media Converter, British Plug Standard

93000 CFA


2-Year Warranty
30-Day Returns
30-Day Exchange


Product Highlights

1x 10/100/1000Mbps Auto-Negotiation RJ45 Port Supporting Auto-MDI/MDIX
Maximum Transmission Distance Depends on the Inserted Modules
Auto-negotiation of Half-Duplex / Full-Duplex Transfer Mode
LEDs Indicate Ethernet and Fiber Link Status at a Glance
Plug-and-play, Support Stand-alone Use
Complies with IEEE802.3af/at

1x 10/100/1000Base-T to 1x 100/1000Base-X SFP Gigabit PoE+ Ethernet Media Converter

The PoE+ Gigabit Ethernet Media Converter extends communication distance with high performance of data transmission via fiber optic cable. It is designed specially to satisfy the growing demand for higher power required network equipment such as network cameras, VOIP telephones, wireless LAN access points and other network devices that need higher power. The PoE+ Gigabit Ethernet Media Converter is an ideal solution to deliver data and power network devices directly via the RJ45 interface without the need of installing extra power outlets and electrical cabling.

The media converters are compatible with a wide range of transceiver modules, such as general 1000Base SFP transceiver modules, BIDI transceiver modules, CWDM transceiver modules, etc. Be sure that the wavelength, speed rate, and the distance of the transceiver modules used at the both ends of the media converter are consistent.

Specifications
Converter Type
PoE+ Media Converter
Port Type
1x 10/100/1000Base-T RJ45
1x 100/1000Base-X SFP
Copper Cable
Cat5/5e/6
Cable Type (Fiber)
Multimode 50/125µm, 62.5/125µm
Single-mode 9/125µm
PoE Standard
IEEE 802.3af/at
Power Pin Assignment
End-Span, 1/2(+), 3/6(-)
Jumbo Frame
9K
Flow Control
Back Pressure for Half Duplex
IEEE 802.3x Pause Frame for Full Duplex
Input Voltage
52~56V DC, 0.58A
Power Consumption
30.16W~32.48W
PoE Power Budget
30W
Switch Architecture
Store and Forward
Operating Temperature
0°C to 50°C
Storage Temperature
-40°C to 70°C
Dimensions (HxWxD)
1.02''x2.76''x3.7'' (26x70x94mm)
Installation
Standalone
Quality Certifications
