21.06kW 3-Phase 32A/380V Switched PDU, (21) C13 & (3) C19 Outlets, IEC309 32A 3P+N+E Plug, 10ft Cord, 0U Vertical

21.06kW 3-Phase 32A/380V Switched PDU, (21) C13 & (3) C19 Outlets, IEC309 32A 3P+N+E Plug, 10ft Cord, 0U Vertical

1267000 CFA

Product Highlights

User-defined Alarm Thresholds Reduce Risk With Real-time Monitoring to Avoid Circuit Overload
1 IP is Required to Access Up to 32 PDUs (Primary + Secondary) in A Single Cascade Group
Supporting MPDU, Zabbix, Web, Telnet, SSL, SNMPv1/v2c/v3, NTP, SMTP for Local and Remote Management
Plan Capacity and Balance Loads with ± 1% Metering Accuracy (Amps, Volts, Kw, Kwh)
100Mbps Controller is Compatible with Data Center Network Switches Being Deployed

21.06kW 3-Phase 32A/380V Switched PDU, 21 C13 & 3 C19 Outlets, IEC309 32A 3P+N+E Plug, 10ft Cord, 0U Vertical

Switched PDU can locally monitor load level and avoid potential overloads with an LCD hot swapping display, as well as remotely control individual outlets for the rebooting of locked equipment to avoid costly service calls, custom power-on/power-off sequences, and load-shedding of non-essential loads during blackouts to extend battery backup runtime for critical equipment. Optional T/H sensor to set notification forms to prevent business disruption.
The PDU network interface connects to an Ethernet jack. Remote users can switch each of the PDU outlets on or off via SNMP and the Web. Remote outlet level control allows on/off power cycling to remotely restart equipment and limits unauthorized use of individual outlets to reduce downtime.
1 IP is Required to Access Up to 32 PDUs (Primary + Secondary). Outlet power sequencing and grouping allow the user to specify the device power-on or power-down sequence to avoid overloading the circuit due to inrush current or load reduction to drive green data center initiatives to save energy and money.

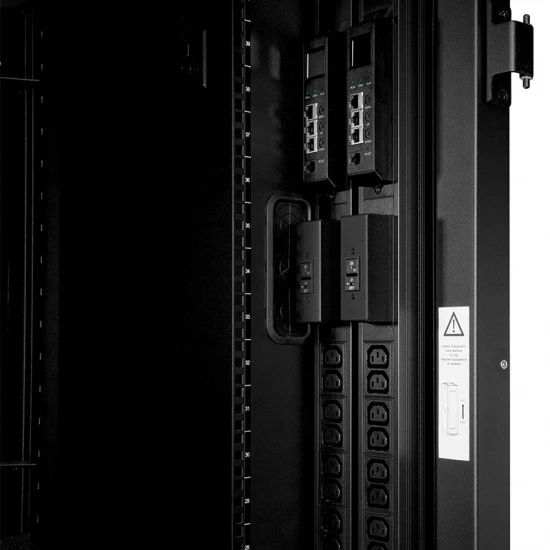

The 0U rack PDU mounts vertically using the included toolless mounting buttons or the included brackets. Recommended for data centers, server rooms, and network closets, this 0U vertical PDU provides advanced network control and remote power monitoring.

Specifications
PDU Type
Switched
Phase
3-phase
Input Plug Type
IEC309 32A 3P+N+E
Output Socket Type
21 C13 & 3 C19
Input Voltage
380V
Output Voltage
230V
Input Current Limits
32A
Rating Current
32A
Load Capacity
21.06kW
Frequency Compatibility
50/60Hz
Cord Length
10ft(3m)
Cord Gauge
10AWG
Ammeter
LCD Hot Swapping
Circuit Breaker
3, Magnetic-hydraulic
Front Panel LCD Display
Digital meter reports PDU output current in amps, voltage, capacity, electric energy, temperature and humidity, and IP address information
Network Compatibility
10/100Base-T
SNMP Compatibility
Supporting MPDU, Web, Telnet, SSL, SNMPv1/v2c/v3, NTP, SMTP for local and remote management
Material of Construction
Metal Plate
No. of Rack Spaces
Vertical (0U)
Dimensions (HxWxD)
72.05"x2.2"x2.01" (1830x56x52mm)
Toolless Mounting Peg
Unmovable
Rack Mount Brackets
Removable
Storage Temperature (°C)
-15°C~60°C (5°F ~ 140°F)
IEC Receptacle Locking
Yes
Operating Temperature
0°C~55°C (32°F ~ 131°F)
Relative Humidity
10~95%, non-condensing
Quality Certifications
