14.49kW Single-Phase 63A/230V Basic PDU, (21) C13 & (6) C19 Outlets, IEC309 63A 2P + E Plug, 10ft Cord, 0U Vertical

14.49kW Single-Phase 63A/230V Basic PDU, (21) C13 & (6) C19 Outlets, IEC309 63A 2P + E Plug, 10ft Cord, 0U Vertical

443000 CFA

Product Highlights

Outlet Grip Protection Prevents Accidental Cable Disconnects
The Black Aluminum Alloy Housing is More Wear-resistant and Extends the Life of the PDU
IEC309 63A 2P + E Plug, 10ft (3m) Power Cord

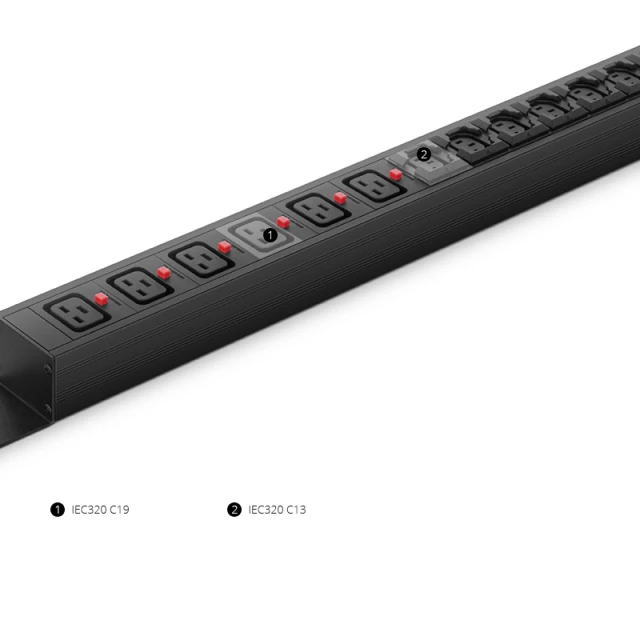

27 Total Outlets (21 IEC320 C13 & 6 C19)
14.49kW Single Phase 63A/230V Basic PDU

Single-Phase 63A/230V Basic PDU, 21 IEC320 C13 & 6 C19 Outlets, IEC309 63A 2P + E Plug, 10ft Cord, 0U Vertical

A basic power distribution unit (PDU) is a reliable and cost-effective way to deliver power from a UPS system, generator, or utility source to servers, network/telecom equipment, enterprise level equipment, and other devices using a single input with multiple output outlets, designed for data centers, server rooms and network wiring closets in enterprise applications.

The Basic PDU Series includes models in 1U and 0U options, with versatile outlet arrangements on the front and/or back. It can be easily installed with mounting hardware included, and it supports a variety of mounting options, including horizontal or vertical mounting in EIA-standard 19-inch racks.

Specifications
PDU Type
Basic
Phase
Single-phase
Input Plug Type
IEC309 63A 2P + E
Output Socket Type
21 IEC320 C13 & 6 C19
Input Voltage
230V
Output Voltage
230V
Input Current Limits
63A
Rating Current
63A
Load Capacity
14.49kW
Frequency Compatibility
50/60Hz
Cord Length
10ft (3m)
Cord Gauge
37AWG (3/2.76mm)
No. of Rack Spaces
Vertical (0U)
Dimensions (HxWxD)
65.4''x2.21''x1.75'' (1661x56x44.4mm)
Material of Construction
Aluminium Alloy
Provided Equipment
Installation guide, 10 screw and nut sets
Operating Temperature
0°C to 45°C (32°F to 113°F)
Relative Humidity
5~95%
Quality Certifications
