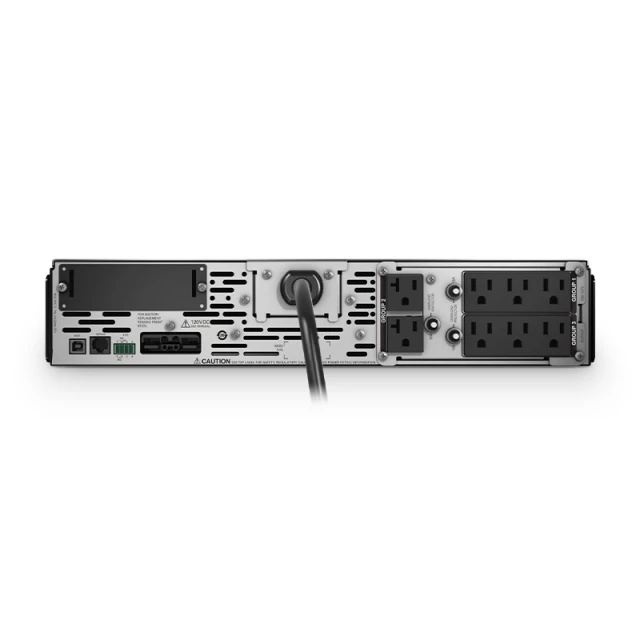

APC® Smart-UPS X 2200VA Rack/tower Convertible UPS, 6x 5-15R+2x 5-20R NEMA Outlets, SmartSlot and 1 Backup Battery Included

APC® Smart-UPS X 2200VA Rack/tower Convertible UPS, 6x 5-15R+2x 5-20R NEMA Outlets, SmartSlot and 1 Backup Battery Included

1800000 CFA

Product Highlights

1 Replacement Battery and up to 10 External Battery Packs
Preinstalled NMC for Network-based UPS Monitoring & Management
User-selectable High Voltage Setting of 100V-127V
Automatic Voltage Regulation (AVR) Adjusts Voltages Ensuring Reliable Power While Preserving Battery Life
Graceful shutdown of physical servers, virtual machines and HCI clusters
Diverts Excess Voltage Away from Sensitive Electronic Equipment to Prevent Damage
Provide Environmental Benefits Through Patented Green Operating Mode that Achieves Efficiencies Over 97%
Rack/Tower Convertible UPS, Offering Flexibility in Various Installations

APC® Smart-UPS X 2200VA Rack/tower convertible UPS, 6x 5-15R+2x 5-20R NEMA, SmartSlot Included

The Line-interactive rack/tower UPS provides pure sine wave power and has a SmartSlot for optional Network Management Card. With PowerChute Network Shutdown, it provides graceful shutdown of physical servers, virtual machines & HCI Clusters. This APC Smart-UPS is designed for datacenter, education, campus and other application areas.

Specifications
UPS Type
Line-Interactive
Form Factor
Rack/Tower
Compatible Battery Type
Lead-acid Battery (included)
Waveform Type
Sine wave
Input Voltage
100-127V
Output Voltage
120V
Plug Type
NEMA L5-30P
Outlet Type
6 NEMA 5-15R
2 NEMA 5-20R
Run Time (Full Load)
9min 45s
Transfer Time
Typical 4ms
Battery option
SMX120RMBP2U 1 2106 VAh
SMX120RMBP2U 2 3510 VAh
SMX120RMBP2U 3 4914 VAh
SMX120RMBP2U 4 6318 VAh
SMX120RMBP2U 6 9126 VAh
SMX120RMBP2U 8 11934 VAh
SMX120RMBP2U 10 14742 VAh
Dimensions (HxWxD)
3.35"x 17.00"x 26.26" (85x 431.8x 667mm)
Net weight
84.77lbs (38.45 kg)
Warranty
1 year
Quality Certifications
