17.6kW 3-Phase 32A/400V Basic PDU, (36) C13 & (6) C19 Outlets, IEC309 32A 3P + N + E Plug, 3ft Cord, 0U Vertical

17.6kW 3-Phase 32A/400V Basic PDU, (36) C13 & (6) C19 Outlets, IEC309 32A 3P + N + E Plug, 3ft Cord, 0U Vertical

400000 CFA

Product Highlights

Outlet Grip Protection Prevents Accidental Cable Disconnects
The Black Aluminum Alloy Housing is More Wear-resistant and Extends the Life of the PDU
IEC309 32A 3P + N + E Plug, 3ft (0.9m) Power Cord

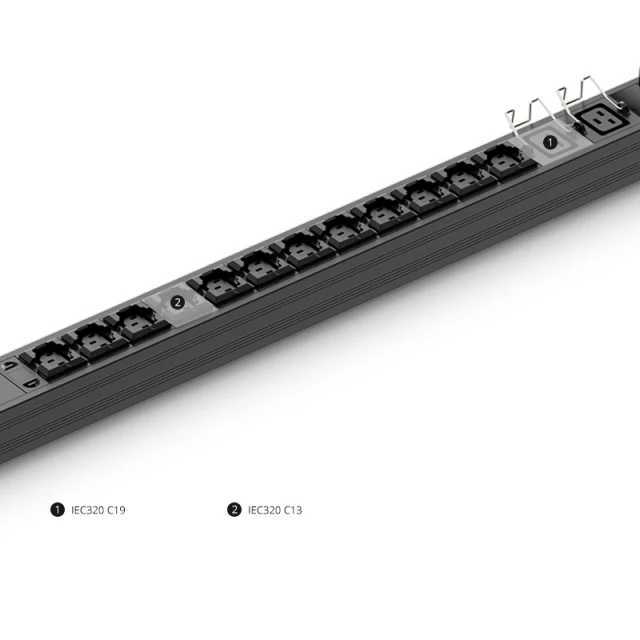

42 Total Outlets (36 IEC320 C13 & 6 C19)
17.6kW 3-Phase 32A/400V Metered PDU

3-Phase 32A/400V Basic PDU, 36 IEC320 C13 & 6 C19 Outlets, IEC309 32A 3P + N + E Plug, 3ft Cord, 0U Vertical

A basic power distribution unit (PDU) is a reliable and cost-effective way to deliver power from a UPS system, generator, or utility source to servers, network/telecom equipment, enterprise level equipment, and other devices using a single input with multiple output outlets, designed for data centers, server rooms and network wiring closets in enterprise applications.
The Basic PDU Series includes models in 1U and 0U options, with versatile outlet arrangements on the front and/or back. It can be easily installed with mounting hardware included, and it supports a variety of mounting options, including horizontal or vertical mounting in EIA-standard 19-inch racks.

Specifications
PDU Type
Basic
Phase
3-Phase
Input Plug Type
IEC309 32A 3P + N + E
Output Socket Type
36 IEC320 C13 & 6 C19
Input Voltage
400V
Output Voltage
400V
Input Current Limits
32A
Rating Current
32A
Load Capacity
17.6kW
Frequency Compatibility
50/60Hz
Cord Length
3ft (0.9m)
Cord Gauge
14AWG (5/2.6mm)
No. of Rack Spaces
Vertical (0U)
Dimensions (HxWxD)
93.62''x2.21''x1.75'' (2378x56x44.4mm)
Material of Construction
Aluminium Alloy
Provided Equipment
Installation guide, 10 screw and nut sets
Operating Temperature
-5°C to 60°C (23°F to 140°F)
Relative Humidity
5~95%
Quality Certifications
