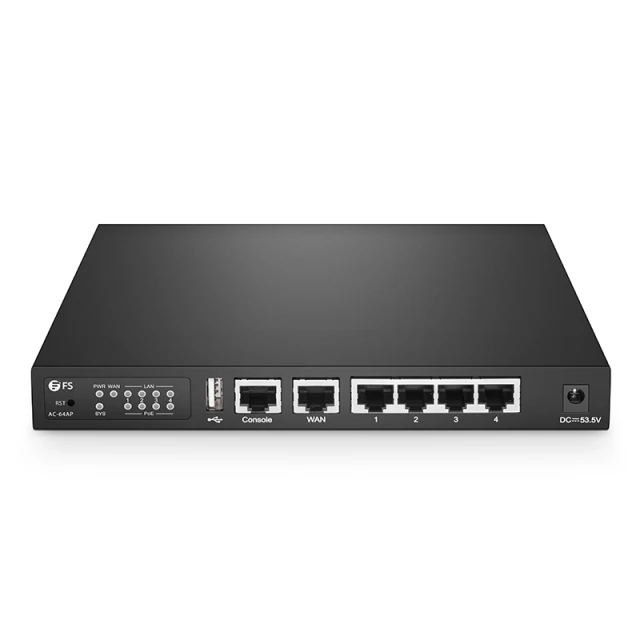

AC-1004, 802.11ax Wireless LAN Controller with 5 Gigabit Ethernet Ports, Seamless Wi-Fi Roaming, Manage up to 64 Wi-Fi 6 APs

AC-1004, 802.11ax Wireless LAN Controller with 5 Gigabit Ethernet Ports, Seamless Wi-Fi Roaming, Manage up to 64 Wi-Fi 6 APs

184000 CFA


 3-Year Warranty
30-Day Returns
30-Day Exchange


Product Highlights

Up to 64 APs, 1000 Clients, and 5-Gbps Throughput
Seamless L2/L3 Roaming for Users or Client Devices
Multi-service Integrate Gateway/Router/PoE Switch
Compact and Fanless Design for Virtually Anywhere
Support Airware Cloud and Web-based Management

802.11ax Wireless LAN Controller with 5 Gigabit Ethernet (GbE) Ports, Seamless Wi-Fi Roaming, Manage up to 64 Wi-Fi 6 APs

The AC-1004 is an ultra-reliable, super-secure wireless LAN controller that integrates functions of the AC, PoE switch, and gateway. It is designed to address the wired and wireless access and security needs of small and medium-sized enterprises, making it an ideal choice for local area networks within such businesses, hotels, educational institutions, etc.
It can be deployed in any layer 2 or layer 3 network structure. Without changing any network architecture and hardware equipment, wireless users can enjoy seamless roaming in the process of crossing different areas of the entire network. Meeting the security and session integrity in mobile roaming and fully meeting the data interaction and smooth voice of Wi-Fi voice communication.

Specifications
Service Port
1x 10/100/1000BASE-T ports, 4x 10/100/1000BASE-T ports(PoE Support)
Console Port
(1) RJ45
Max Number of Managed APs
64
Max Number of Access Users
4000
Throughput
5G
VLAN
1000
Layer
L2/L3
Management
Web/Cloud
Fan
Fanless
Compatible Access Points
FS Wi-Fi 6 APs
Max Power Consumption
≤64.2W (PoE≤56W)
MTBF (Hours)
250000
Operating Temperature
-10°C~40°C
Storage Temperature
-40°C~70°C
Rated Voltage
DC53.5V, 50/60Hz
Maximum Voltage
53.5V/1.2A
Humidity
10%~90% (Non-condensing)
Dimensions (HxWxD)
7.87"x4.33"x0.98" (200x110x25mm)
Quality Certifications

Image supplémentaire

Produits similaires

AC-1004, 802.11ax Wireless LAN Controller with 5 Gigabit Ethernet Ports, Seamless Wi-Fi Roaming, Manage up to 64 Wi-Fi 6 APs

AC-1004, 802.11ax Wireless LAN Controller with 5 Gigabit Ethernet Ports, Seamless Wi-Fi Roaming, Manage up to 64 Wi-Fi 6 APs

184000 CFA
Voir le produit

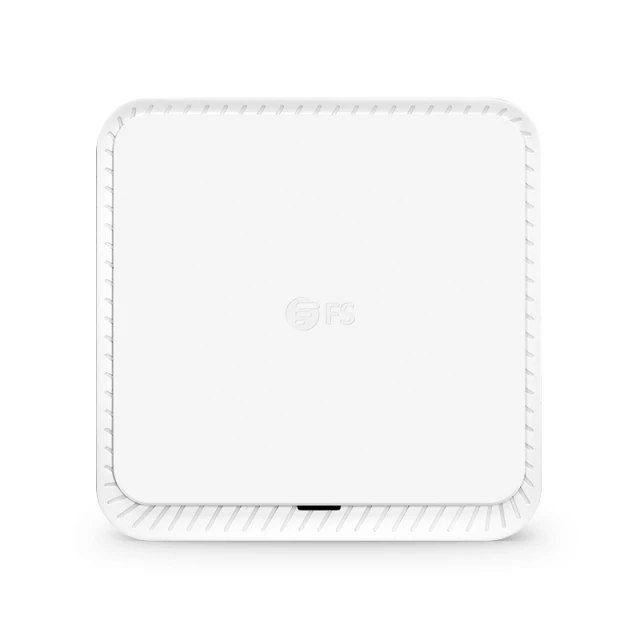

AP-N635, Cloud Managed Wi-Fi 6E 802.11ax 7775 Mbps Indoor Access Point, Seamless Roaming & 4 × 4 MU-MIMO Three Radios, Manageable via Airware, Controller or Standalone (Without PoE Injector)
