T5850-48S6Q-R, 48 x 10G SFP+ with 6 x 40G QSFP+ Ports, Network Packet Broker (NPB), Network Visibility and Monitoring

T5850-48S6Q-R, 48 x 10G SFP+ with 6 x 40G QSFP+ Ports, Network Packet Broker (NPB), Network Visibility and Monitoring

6370000 CFA

5-Year Warranty


Product Highlights

Supports 1G/ 10G/ 40G Networks, High-density 720G in 1U 19" RU Helps Save Space
Higher Port Density to Improve Scalability to Meet Multiple Traffic Demands
Support L2~L4 Traffic Aggregation, Filtering, Replication, Load Balancing, GRE Tunnel
Time Stamps, Editing VLAN of Packets, Packet Truncation, Header Modification
Real-time Network Visibility Delivers Insight to Ensure Security with Radius Authentication
Optimizing Network Traffic to Improve Performance and Efficiency of Network Tools
Support Web GUI, CLI, Telnet, SNMP, SSH, JSON-RPC
ASIC Architecture with 720G Full-port Line-speed Traffic Handling, No Packet Loss

T5850-48S6Q-R, 48 x 10Gb SFP+ with 6 x 40Gb QSFP+ Ports, Network Packet Broker (NPB)

A Network Packet Broker (NPB) is a device that optimizes the flow of traffic between TAP and SPAN connections and network monitoring, security tools. The packet broker collects traffic from single or multiple network links, filtering and distributing each individual packet to the correct network monitoring tool by load balancing, which enhances the performance of network analysis and security tools.

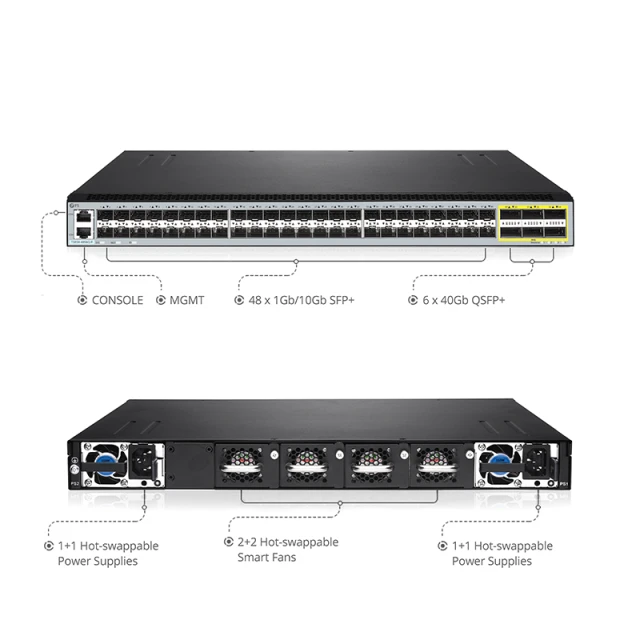

The FS T5850-48S6Q-R Network Packet Broker(NPB) features 48 SFP+ (1/10 Gbps) and 6 QSFP+ ports (40 Gbps) providing aggregation, replication, filtering and load balancing in very high bandwidth port monitoring and analysis scenarios.

Specifications
Ports
48x 10G SFP+ | 6x 40G QSFP+
100/1000 Mgmt Port
1
Switching Method
Store and Forward/Cut Through
Switching Capacity
1.44Tbps
Latency
700 ns
Throughput
1071.4 Mpps
System Memory
2GB
CPU
Dual core, ARM A53
Packet Buffer
36MB
Flash
8GB
Ingress Flow Entries
8000
Input Voltage
100 ~ 240V; 50/60Hz
Egress Flow Entries
253
Max. Power Consumption
145W
MTBF
70080
Power Supplies
2 (1+1 redundant)
Max. TAP Groups
512
Fans
4 (2+2 redundant)
Airflow
Front-Rear
Dimensions(HxWxD)
4.4 x 44.2 x 45.1 cm (1.73 x 17.4 x 17.75 in)

Software Spotlights

Pervasive Visibility

Support Traffic Aggregation, Replication and Distribution

Support Ingress and Egress Filter

Support Traffic Match

Support Traffic Editing

Support Traffic Load Balancing

Advanced Functionality

Support Tunnel Decapsulation( VxLAN, GRE/NVGRE decryption and encapsulation)

Support Time Stamps

Support Packet Truncation

Support UDF

Management

Console, Telnet, SSH Management

WebUI

SNMP Trap

Json-RPC for Northband Interface

Quality Certifications
