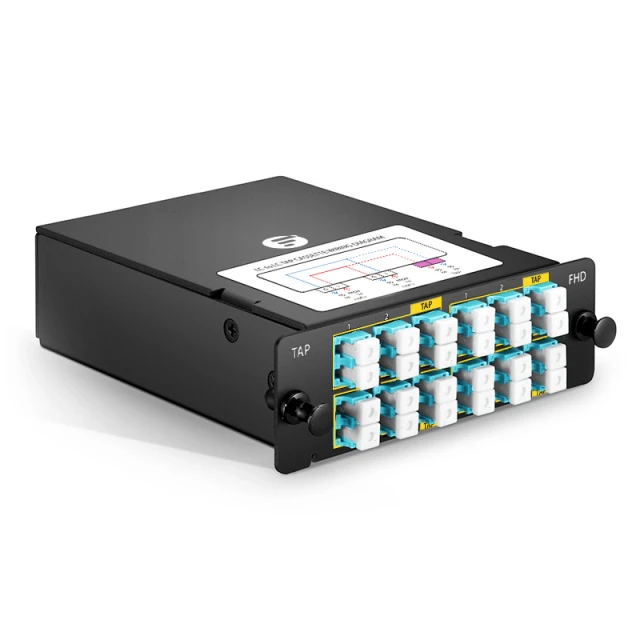

FHD™ Fiber TAP Cassette, OM4 Multimode, 8 x LC Duplex Live Ports, 4 x LC Duplex TAP Ports, 50/50 Split Ratio (Live/TAP), 1/10/40/100G

FHD™ Fiber TAP Cassette, OM4 Multimode, 8 x LC Duplex Live Ports, 4 x LC Duplex TAP Ports, 50/50 Split Ratio (Live/TAP), 1/10/40/100G

330000 CFA


1-Year Warranty
30-Day Returns
30-Day Exchange


Product Highlights

TAP Cassettes Provide Real-time Monitoring in the Network or SAN Environment
Push-lock Rivets for Tool-less Snap Installation and Removal
Fully Compatible with All FHD™ Enclosures
4 Cassettes Fit into 1U, Up to 96 Fibers
Pre-terminated LC Adapters Reduce Field Installation Time
Use to Monitor Network Traffic and Provide 50/50 Split Ratio for Data Center LAN

1/10/40/100G FHD™ Fiber TAP Cassette, 8x LC Duplex Live Ports, 4x LC Duplex TAP Ports, 50/50 Split Ratio

Traffic Access Point (TAP) is a passive monitoring device that passes traffic from the live network to the monitoring devices and provides a demarcation between the live network and monitoring infrastructure. It is designed for use to effectively monitor network traffic whilst optimising performance, are tools that provide users with an understanding of network flow patterns by splitting traffic for monitoring and security without interrupting network traffic.

Specifications
Live Ports
8
TAP Ports
4
Split Ratio
50/50
Termination Type
Front
Front Connectivity
LC UPC Duplex
Rear Connectivity
None
Insertion Loss
≤0.3dB
Return Loss
≥30dB
Split Loss (Live)
4.1dB
Split Loss (TAP)
4.1dB
Fiber Length
1.00±0.10m
Glass Fiber
Corning ClearCurve® Multimode
Operating Temperature
-10°C to 60°C
Dimensions (HxWxD)
1.38''x4.29''x4.64'' (35x109x118mm)
Fiber Type
OM4 50/125μm
Application
Data Center LAN/SAN
* FHD is a registered trademark of FS.COM Ltd.
