T5850-24S2C, 24x 10G SFP+ with 2x 100G QSFP28 Ports, Network Packet Broker (NPB), Network Visibility and Monitoring

T5850-24S2C, 24x 10G SFP+ with 2x 100G QSFP28 Ports, Network Packet Broker (NPB), Network Visibility and Monitoring

4030000 CFA

5-Year Warranty


Product Highlights

Supports 1G/ 10G/ 25G/ 40G/ 100G Networks in 1U 19" RU
Support L2~L4 Traffic Aggregation, Filtering, Replication, Load Balancing
Support Time Stamps, Editing VLAN of Packets, Packet Truncation, Header Modification
Real-time network visibility delivers insight to ensure security
Optimizing Network Traffic to improve performance and efficiency of Network Tools
Support Web GUI, CLI, Telnet, SNMP, SSH, JSON-RPC
Support editing the IPv6SA/IPv6DA/ IPDA/IPSA and MACDA/MACSA and VLAN of packets

T5850-24S2C, 24x 10G SFP+ 2x 100G QSFP28 Ports, Network Packet Broker (NPB)

A Network Packet Broker (NPB) is a device that optimizes the flow of traffic between TAP and SPAN connections and network monitoring, security tools. The packet broker collects traffic from single or multiple network links, filtering and distributing each individual packet to the correct network monitoring tool by load balancing, which enhances the performance of network analysis and security tools.

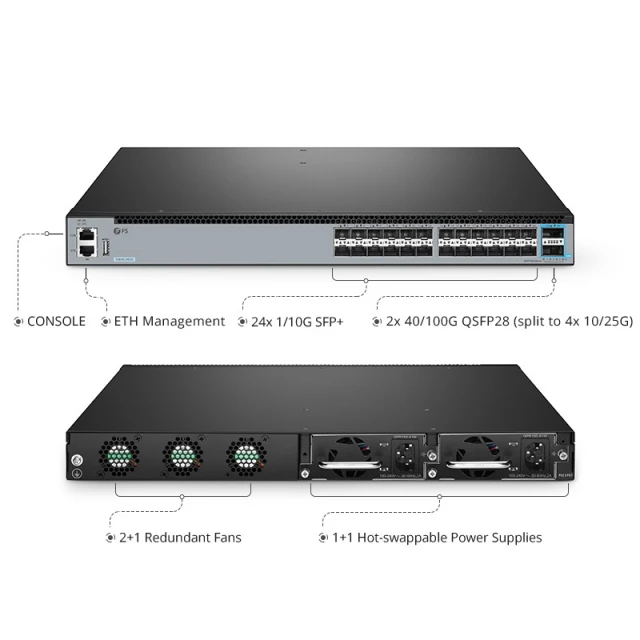

The FS T5850-24S2C Network Packet Broker (NPB) features 24 SFP+ ports (10Gbs) and 2 QSFP28 ports (100Gbs) providing aggregation, replication, filtering and load balancing in very high bandwidth port monitoring and analysis scenarios.

Specifications
Ports
24x 10G SFP+ | 2x 100G QSFP28
100/1000 Mgmt Port
1
Switching Method
Store and Forward/Cut Through
Switching Capacity
880Gbps
Latency
660ns
Throughput
540Mpps
System Memory
2GB
CPU
SOC (Dual core/ARM A53)
Packet Buffer
9MB
Flash
8GB (eMMC)
Ingress Flow Entries
1800
Input Voltage
100-240VAC, 50-60Hz
Egress Flow Entries
253
Max. Power Consumption
59W
MTBF
206988
Power Supplies
2 (1+1 redundant)
Airflow
Front-Rear
Fans
3 (2+1 redundant)
Weight
13.12lbs (5.95kg)
Dimensions(HxWxD)
4.36 x 44.0 x 37.0 cm (1.73 x 17.5 x 14.6 in.)

Software Spotlights

Pervasive Visibility

Support Traffic Aggregation, Replication and Distribution

Support Ingress and Egress Filter

Support Traffic Match

Support Traffic Editing

Support Traffic Load Balancing

Advanced Functionality

Support Tunnel Decapsulation( VxLAN, GRE/NVGRE decryption and encapsulation)

Support Time Stamps

Support Packet Truncation

Support UDF

Management

Console, Telnet, SSH Management

WebUI

SNMP Trap, Get

Json-RPC for Northband Interface

Quality Certifications
