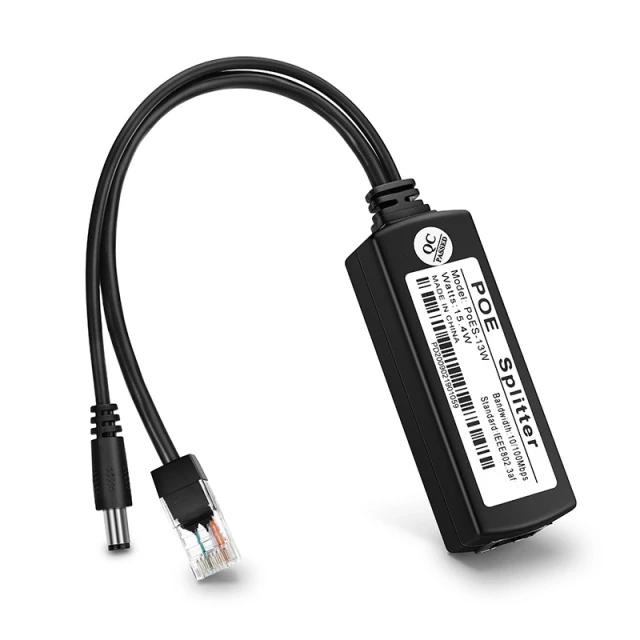

Single Port 10/100M PoE Splitter Cable with DC 12V Output, 13W

Single Port 10/100M PoE Splitter Cable with DC 12V Output, 13W

44000 CFA


 1-Year Warranty


Product Highlights

Complies with IEEE 802.3af
Plug and Play, Requires No Configuration
Designed to Fit into the Devices that Don't Support PoE in a PoE Environment
Adjustable Voltage Output Supports 5V, 9V, or 12V Devices
Splits 10/100M PoE Signal into Separate Power and 100M Ethernet Data Sources
High Voltage Isolation: 1500V (Input Stage to Output Stage)
Support Protection for Short Circuit, Over- current & Over-temperature

Single Port 10/100M PoE Splitter Cable with DC 12V Output, 13W

10/100M PoE splitter cable meets the standard IEEE802.3af also it can supply 12V DC power for Non-PoE device. It is compatible with both End-Span (1,2+, 3,6-) and Mid-Span (4,5+, 7,8-). Support protection for short circuit, over-current and over-temperature.

With two in one design, the PoE splitter cable could be used to products that support external PoE. ABS plus PC shell makes it more durable.

Specifications
Standards
IEEE 802.3af
Data Transfer Rate
100 Mbps (full duplex/half duplex)
Output Voltage
12VDC, 1.1A Max
Output Rating
13W
Input Voltage
44-57VDC
PoE Power Supply Type
Support Both Mid-Span and End-Span
Operating Temperature
-40°F to 140 °F (-20 °C to 60 °C)
Operating Humidity
Max. 80% non-condensing
Dimensions (HxWxD)
0.93''x0.98''x3.23'' (23.5x25x82mm)
Weight
70 g (2.5 oz.)
Quality Certifications
