AC-224AP, 802.11ax Wireless LAN Controller with 6 Gigabit Ethernet Ports, Seamless Wi-Fi Roaming, Manage up to 224 Wi-Fi 6 APs

AC-224AP, 802.11ax Wireless LAN Controller with 6 Gigabit Ethernet Ports, Seamless Wi-Fi Roaming, Manage up to 224 Wi-Fi 6 APs

1377000 CFA


 3-Year Warranty
30-Day Returns
30-Day Exchange


Product Highlights

Up to 224 APs, 7168 Clients, and 8-Gbps Throughput
Seamless L2/L3 Roaming for Users or Client Devices
Intelligent Load Balancing for High-Speed Wi-Fi Network
Support Airware Cloud and Web-based Management
Secures Network with WPA3, WEP, TKIP and AES Encryption

802.11ax Wireless LAN Controller with 6 Gigabit Ethernet (GbE) Ports, Seamless Wi-Fi Roaming, Manage up to 224 Wi-Fi 6 APs

AC-224AP is a high-capacity wireless controller that can manage a maximum of 224 generic APs or 448 wall-plate APs. It is ideal for businesses who want to offer services such as voice over Wi-Fi, IP-based video, secure enterprise access and tiered Wi-Fi services in venues such as small and medium enterprises, hotels, education institutions and chain stores.


It can be deployed in any layer 2 or layer 3 network structure without changing any network architecture and hardware equipment to realize the seamless roaming of wireless users in the process of crossing different areas of the entire network. Additionally, it supports Airware cloud management significantly simplifying construction and deployment of wireless networks.

Specifications
Service Port
6x 1000BASE-T ports, 2x 1000BASE-T / 1000BASE-X ports (combo)
Console Port
(1) RJ45
SFP Port
2
Throughput
8G
Max Number of Managed APs
224
Max Number of Access Users
7168
Layer
L2/L3
VLAN
4000
Fan
Built-in Fan
Compatible Access Points
FS Wi-Fi 6, Wi-Fi 6E, Wi-Fi 7 APs
Chip
CN6130
Management
Web/Cloud
Max Power Consumption
40W
MTBF (Hours)
248000
Rated Voltage
100V~240VAC,50/60Hz,1.5A
Maximum Voltage
264VAC
Storage Temperature
-40°C~70°C
Humidity
5%~95% (Non-condensing)
Operating Temperature
0°C~45°C
Dimensions (HxWxD)
1.71"x17.32"x7.87" (43.6x440x200mm)
Quality Certifications

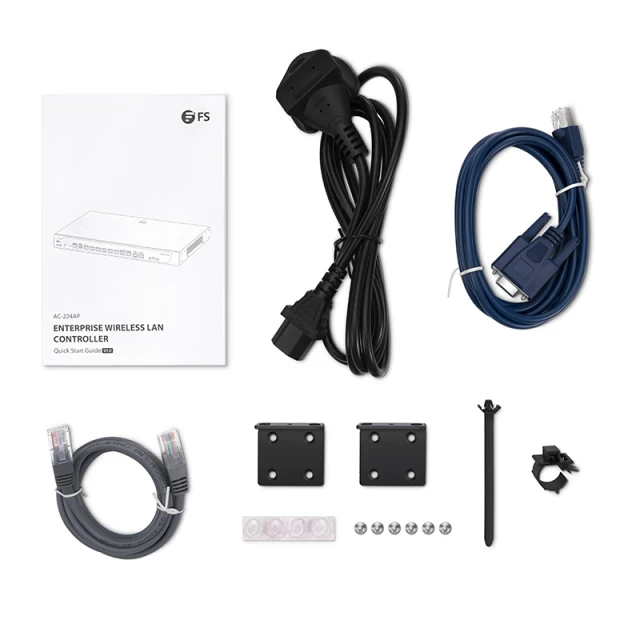

Image supplémentaire
