Single Port 10/100/1000M Gigabit PoE Injector, PoE Port @ 18W

Single Port 10/100/1000M Gigabit PoE Injector, PoE Port @ 18W

58500 CFA


1-Year Warranty


Product Highlights

Complies with 802.3af Standards, Delivers up to 18W PoE
Compatible with 802.3af-compliant Wireless Access Points
Plug & Play Installation, Requires No Configuration
2 Gigabit Ethernet I/O Ports Provide High-speed Connectivity and Transmission
Automatic Detection and Protection of Non–standard Ethernet Terminals
Featuring Auto-sensing Technology, Supplies the Correct Wattage Needed to Power Your PoE Devices
Network a PoE Device Located up to 100 Meters (328 ft.) Away

Single Port 10/100/1000M Gigabit PoE Injector, PoE Port @ 18W

This Single Port PoE injector is developed with a Microsemi MP3924 main chip, which can provide a simple, economical, high-performance and intelligent way for Ethernet PoE power supply and data communication.

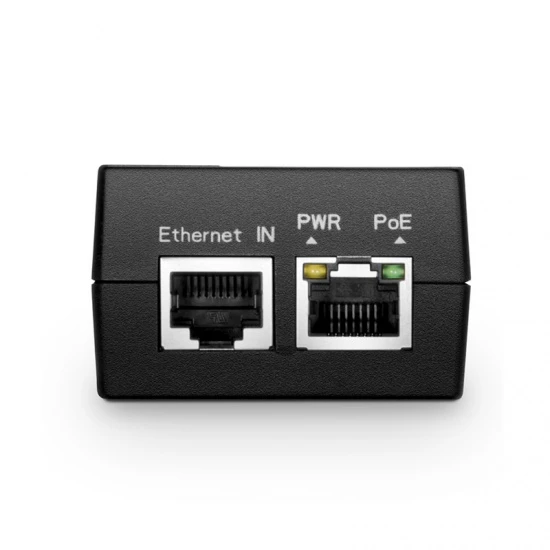

This mid-span PoE injector has 1x 2 standard RJ45 network ports: one network port will be used for upper Ethernet switches or other network devices and the other network port will support PoE power supply output with network data output. They can supply power to HD webcam through Cat5 Ethernet cable, which makes it more flexible for the places difficult to connect to power supply, and provide more efficient solutions.

Specifications
Input RJ45 Ports
1x 10/100/1000Mbps Ethernet
Output RJ45 Ports
1x 10/100/1000Mbps PoE
Input Voltage
100-240VAC, 50-60Hz, 0.56A Max
Output Voltage
52VDC, 0.3A Max
PoE Port Power
15.4W
Total Power
18W
Network Cable
Cat5e (or above) UTP
Data Transmission Distance
Up to 100m
Operating Temperature
-4ºF to 131ºF (-20°C to 55°C)
Storage Temperature
-4ºF to 167ºF (-20°C to 75°C)
Working Humidity
10%-90%, non-condensing
Storage Humidity
10%-95%, non-condensing
Dimensions (Hx Wx D)
1.3''x 2''x 4.6'' (33x51x117mm)
PoE Standard
IEEE 802.3af
Quality Certifications
