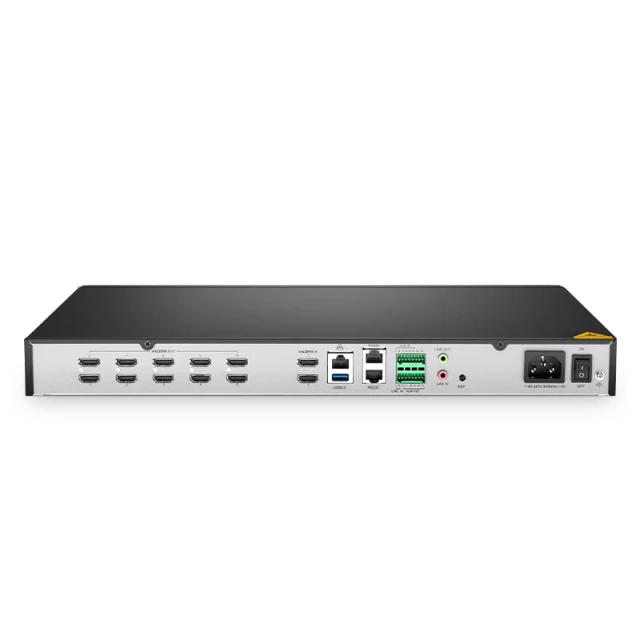

NVD3510-4K, 10-Channel 4K Network Video Decoder, H.265, 10x HDMI Output & 2x HDMI Input

NVD3510-4K, 10-Channel 4K Network Video Decoder, H.265, 10x HDMI Output & 2x HDMI Input

1589000 CFA


 2-Year Warranty
30-Day Returns
30-Day Exchange


Product Highlights

H.265, H.264, MPEG Video Compression
Compatible with Devices Which Support ONVIF
Ultra-high Decoding Capability, up to 8 MP on 10 Channels
Provide 10 HDMI Output Interfaces and 2 HDMI Input Interfaces
PS, RTP, TS, ES Encapsulation Formats

NVD3510-4K, 10-Channel 4K Network Video Decoder, H.265, 10x HDMI Output & 2x HDMI Input

Delivering high-quality and detailed images, the network decoder is equipped with up to 10-CH network cameras and a maximum network camera resolution of 8-Megapixels. It supports decode options of H.265 4K/1080p/720p/D1 @30 fps, perfect for small to medium scale deployments where display and control are required.

Specifications
IP Video Input
2xHDMI
Video Stream Format
H.265,H.264,MPEG4,MPEG2,MPEG
HDMI Input(Max)
1920x1080(1080P)@60HZ
HDMI Output(Max)
3840x2160(4K)@60HZ
Audio Input
2-ch (Reservation)
Audio Output
1-ch
Weight
3.37kg
Decoding Capability
10x8MP@30fps,40x1080P@30fps,90x720P@30fps,160xD1@30fps
Power Supply
100V ~ 240V AC,50Hz/60Hz
Network Interface
1xRJ-45,10M/100M/1000M Adaptive Ethernet Interfaces
Alarm Input
6(Reservation)
USB Interface
1 x USB3.0
Serial Interface
1 x RS-232,1 x RS485
Alarm Output
3(Reservation)
Operating Temperature
-10 to 55°C (14 to 131°F)
Dimensions(HxW×D)
17.3"x 13.3"x 1.7" (440mmx 339mmx 44mm)
Quality Certifications
