VS-2024S 24-bay Single Controller Network Storage Host, IPSAN, Connect and Manage 250 Devices

VS-2024S 24-bay Single Controller Network Storage Host, IPSAN, Connect and Manage 250 Devices

2361000 CFA



Product Highlights

24 SATA HDDs, Up to 8TB for Each HDD
Support JBOD, RAID 0, 1, 5, 6 and N+M Hot Standby
64-bit High-performance Multi-core Processor
ONVIF® Profile S Conformant
Max 640 Mbps Incoming/Recording/Forwarding Bandwidth
Support iSCSI

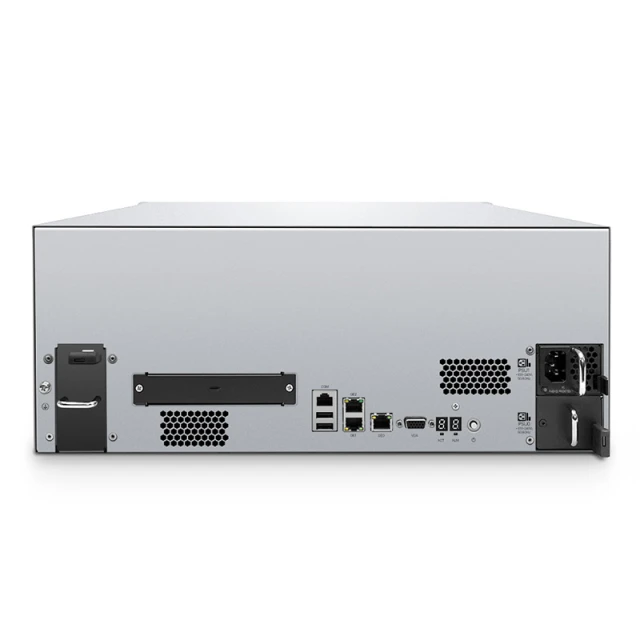

VS-2024S 24-bay Single Controller Network Storage Host

VS-2024S storage, with high performance, high reliability, low power consumption and high usability, is an economy type unified network storage developed especially for video surveillance. Integrating a range of features such as video data management, iSCSI storage, RAID processing, permanent data protection and cutting-edge disk management technology, this device offers concurrent block access performance (iSCSI) ,and thus to be a comprehensive solution to storage in video surveillance. It is mainly used in airports, parking lots, ports, banks and other industries.

Specifications
Storage Controller
Intel 64-bit multi-core processor
Performance
320-channel (640Mbps) recording,
160-channel (320Mbps) forwording,
32-channel (64Mbps) playback
Controller
1
Host Connection
Up to 1024
Memory
4GB
HDD
24 SATA interfaces
Power Supply
1+1 Redundant
Power Consumption
< 280 W
Interoperability
ONVIF® Profile S Specification at onvif.org
RAID
JBOD and RAID 0,1, 5, 6
Protocol Supported
iSCSI
Gross Weight
< 32 kg
Operating temperature
5 to 40°C (41 to 104 °F)
Dimension(H ×W×D)
6.9" x19" x23" (175.0×481.6×583.0mm)
Quality Certifications
