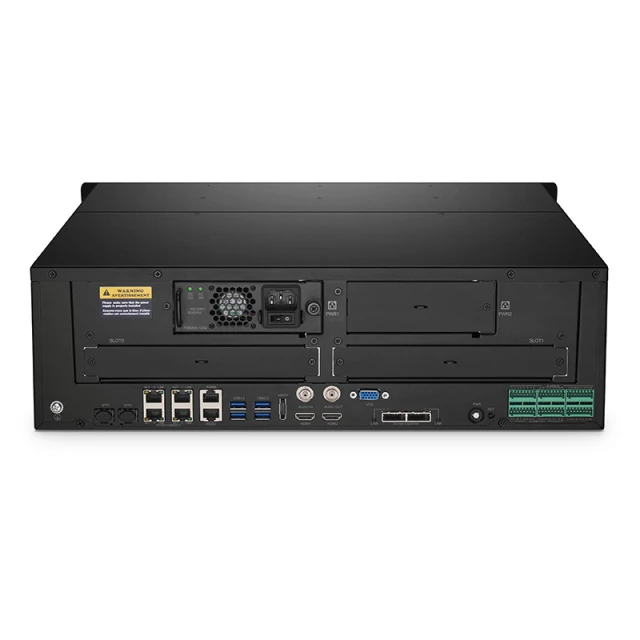

VMS-503C, All in One Video Management System Platform, Manage 1000 Devices, 2000 Video Channels

VMS-503C, All in One Video Management System Platform, Manage 1000 Devices, 2000 Video Channels

9500000 CFA


 3-Year Warranty
18-Day Returns
7-Day Exchange


Product Highlights

Stability: Linux Operating System, Dual BIOS, Redundant Power Supply, Dual Machine Hot Standby
Access: Browser/Server, Client/Server and Mobile Clients (iOS and Android)
Number of Connections: 1000 Device Connections, Up to 2000 Channels of High-Definition Network Video
Storage: Up to 16 Hard Disks, 2 Hard Disk Enclosures,Single Hard Disk up to 14T
Expandable to 48 Disks, 672TB Storage, Recording Backup, IPSAN Storage
Services: Real-Time View, Playback, Sequence, Video Wall, GIS Map, Two-Way Audio, Alarm Plan
Compatibility: Supports Third-Party IP Cameras with Standard ONVIF and RTSP

VMS-503C, All in One Video Management System Platform, Connect and Manage 1000 Devices, 2000 Video Channels

VMS-503C is an integrated video surveillance platform suitable for medium and large applications. It can connect and manage devices such as IPC, NVR, smart device, decoder, network keyboard, access controller, alarm controller. VMS-503C is easy to deploy, stable and scalable, and can be widely used in retail industries, hospitals, schools and other applications that require a wide range of network stability and interconnection. It is compatible with ONVIF Profile S protocol, enabling interoperability with numerous third-party devices.

Specifications
Input Bandwidth
512Mbps
Output Bandwidth
384Mbps
User Management
300 Online Users
Serial Interface
1×RS-232 (RJ45), 1×RS-485 (RJ45)
Network Interface
4×10M/100M/1000M Base-T
USB Interface
4×USB3.0
Alarm Input/Output
24×alarm inputs, 8×alarm outputs
Power Output
12V DC
Power
100-240V AC, with Power Switch
Audio
G.711A, G.711μ
Interoperability
ONVIF® Profile S Specification at onvif.org
Power Consumption
≤ 50W (not including HDD)
≤ 165W (including HDD)
Operating Temperature
-10°C to 55°C (14°F to 131°F)
Operating Humidity
10%-90% (Non-condensing)
Weight
≤ 10.0 Kg( (not including HDD)
Dimensions(HxWxD)
18.8''×19''×5.1''(477.1 mm × 481.6 mm × 130.5 mm)
