Cisco QDD-400G-DR4-S Compatible 400GBASE-DR4 QSFP-DD PAM4 1310nm 500m DOM MPO-12/APC SMF SiPh-Based Optical Transceiver Module, Breakout to 4 x 100G-DR

466000 CFA

 5-Year Warranty

30-Day Returns

30-Day Exchange

Product Highlights

Built-in Broadcom 7nm DSP Chip, Max. Power Consumption 10W

SiPh-Based Technology for Lower Power, Cost and Higher Density

Tested in Targeted Switches for Superior Performance, Quality, and Reliability

Compliant with QSFP-DD MSA CMIS Rev4.1, OIF 56G PAM4 and 100G Lambda MSA

Support 4x 100G Breakout to QSFP-DR-100G

FS BOX V4.0 - Support Real-time Configuration

High-speed Electrical Compliant to IEEE 802.3bs

QSFP-DD Port is Backward Compatible with QSFP+, QSFP28 and QSFP56 Modules

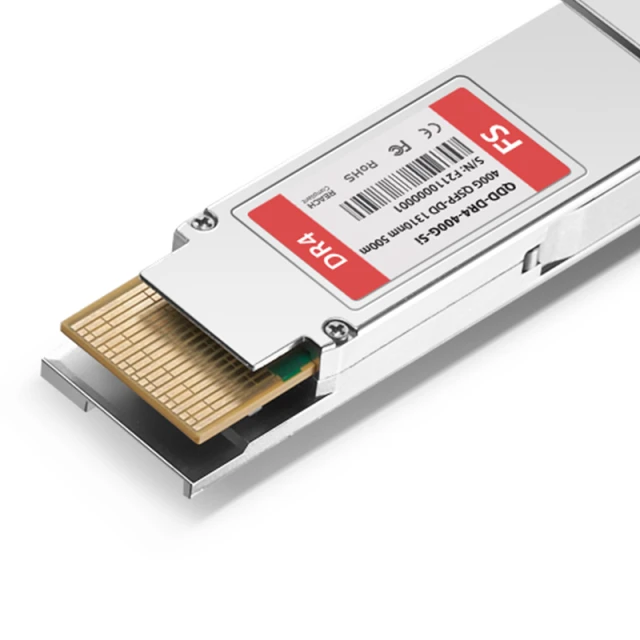

Cisco QDD-400G-DR4-S Compatible 400GBASE-DR4 QSFP-DD PAM4 Silicon Photonics Transceiver Module (SMF, 1310nm, 500m, MPO-12, DOM)

The 400GBASE-DR4 silicon photonics module, MPO-12 connector, up to 500m over parallel single-mode fiber. It is compliant with QSFP-DD MSA, IEEE 802.3bs protocol and 400GAUI-8 standards.
The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as a 4x100G breakout to QSFP-DR-100G.

Specifications

Cisco Compatible

QDD-400G-DR4-S

Vendor Name

Form Factor

QSFP-DD

Max Data Rate

425Gbps (4x106.25Gb/s)

Wavelength

1310nm

Max Cable Distance

500m
