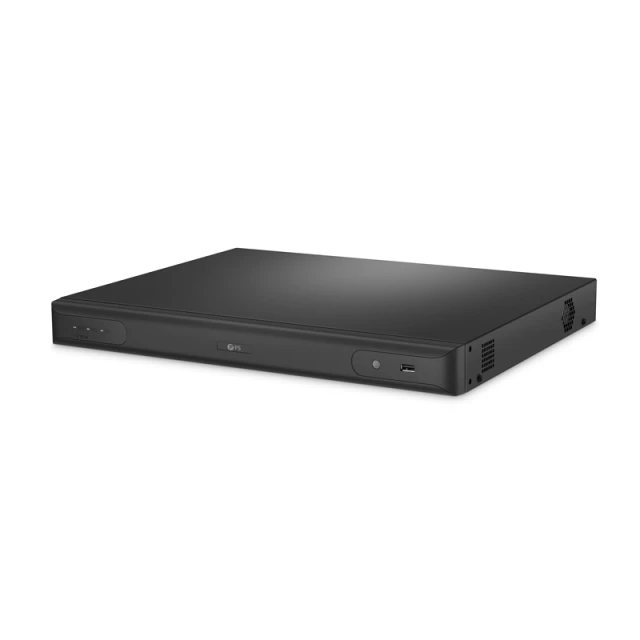

NVR204-32C, 32-Channel Network Video Recorder, Record 32CH 4K@30fps, Live View/Playback 2CH 4K@30fps, Supports up to 4x8TB Hard Drive(Not Included)

NVR204-32C, 32-Channel Network Video Recorder, Record 32CH 4K@30fps, Live View/Playback 2CH 4K@30fps, Supports up to 4x8TB Hard Drive(Not Included)

339000 CFA


 2-Year Warranty
30-Day Returns
30-Day Exchange


Product Highlights

Support 32 Cameras and up to 12MP Resolution
Remote Access via Mobile App, Web Browser and VMS (Video Management Software)
Support up to 4x 8TB Hard Drive (Not Included)
ONVIF® Profile S Conformant
Provide Data Redundancy, Automized Secure RAID1/5 Configuration

NVR204-32C, 32-Channel Network Video Recorder, Record 32CH 4K@30fps, Live View/Playback 2CH 4K@30fps, Supports up to 4x 8TB Hard Drive (Not Included)

The network video recorder (NVR) can record videos from up to 32 cameras, and the storage can be expanded to 32TB in total for its 4-bay SATA 3.5" HDD interface. A variety of monitoring methods, including a web browser, monitoring software and mobile App, are available to manage your cameras and NVR easily, ideal for small and medium enterprises, education institutions, hotels and other applications. It features an open architecture that supports for multi-user access, enabling interoperability with IP cameras.

Specifications
IP Video Input
32-Channel
Decoding Format
Ultra 265, H.265, H.264
HDMI Output
4K(3840x2160@30fps),1920x1080@60fps,
1920x1080@50fps,
1280x1024@60fps,1280x720@60fps,
1024x768@60fps
VGA Output
1920x1080@60fps,1920x1080@50fps,
1280x1024@60fps,1280x720@60fps,
1024x768@60fps,1600x 1200@60fps
Audio Input
1-ch, RCA
Audio Output
1-ch, RCA
Incoming Bandwidth
320Mbps
Decoding Capability
1x 12MP@30, 2x 4K@30, 5x 4MP@30, 10x 1080P@30, 22x 720P@30, 32x D1
Outgoing Bandwidth
320Mbps
LiveView/Playback Resolution
12MP/8MP/6MP/5MP/4MP/3MP/
1080p/960p/720p/D1/2CIF/CIF
SATA
4x SATA interfaces
Capacity
32TB (not included), up to 8TB for each HDD
Network Interface
2 RJ-45 10M/100M/1000M Self-adaptive Ethernet Interface
2 1000M SFP Ethernet Interface
USB Interface
1x USB2.0(Front panel),1x USB3.0 (Rear panel)
Power Consumption
≤ 12W (without HDD)
Power Supply
DC/5A 12V
Audio Compression
G.711A, G.711U
Interoperability
ONVIF® Profile S Specification at onvif.org
Dimensions (HxWxD)
1.9"× 17.3"× 13.5" (48× 440× 344mm)
Operating Temperature
-10 to 55°C (14 to 131°F)
Quality Certifications
