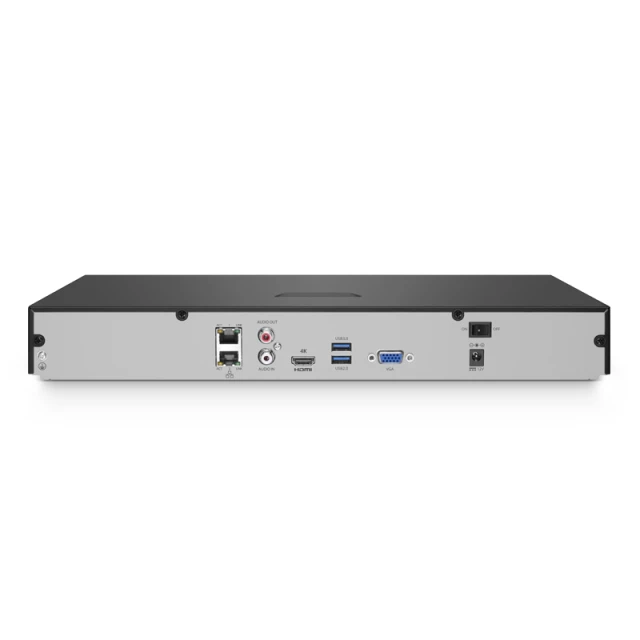

NVR102-16C, 16-Channel Network Video Recorder, Record 16CH 4K@30fps, Live View/Playback 2CH 4K@30fps, Supports up to 2x8TB Hard Drive(Not Included)

NVR102-16C, 16-Channel Network Video Recorder, Record 16CH 4K@30fps, Live View/Playback 2CH 4K@30fps, Supports up to 2x8TB Hard Drive(Not Included)

195000 CFA


 2-Year Warranty
30-Day Returns
30-Day Exchange


Product Highlights

Support 16 Cameras and up to 4K Resolution
Remote Access via Mobile App, Web Browser and VMS (Video Management Software)
Support Ultra 265/H.265/H.264 Video Formats
2 SATA HDD, up to 8TB for Each HDD
1U-sized, Rack-mountable

NVR102-16C, 16-Channel Network Video Recorder, Record 16CH 4K@30fps, Live View/Playback 2CH 4K@30fps, Supports up to 2x8TB Hard Drive(Not Included)

The network video recorder (NVR) can record videos from up to 16 cameras, and the storage can be expanded to 16TB in total . A variety of monitoring methods, including a web browser, monitoring sotware and mobile App, are available to manage your cameras and NVR easily, ideal for small and medium enterprises, education institutions, hotels and other applications.

Specifications
IP Video Input
16-ch
Decoding Format
H.265, H.264, MJPEG
HDMI Output
4K (3840x2160) @ 30fps, 1920x1080 @ 60fps, 1920x1080 @ 50fps, 1600x1200 @ 60fps, 1280x1024 @ 60fps, 1280x720 @ 60fps, 1024x768 @ 60fps
VGA Output
1920x1080p@60fps, 1920x1080p@50fps, 1280x1024@60fps, 1280x720@60fps, 1024x768@60fps
Audio Input
1-ch, RCA
Audio Output
1-ch, RCA
Incoming Bandwidth
160Mbps
Decoding Capability
2x 4K@30fps, 3x 5MP@30fps, 4x 4MP@30fps, 5x 3MP@30fps, 8x 1080p@30fps, 16x 720p@30fps
Outgoing Bandwidth
64Mbps
LiveView/Playback Resolution
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
SATA
2x SATA Interfaces
Capacity
Up to 8TB for Each Disk
Network Interface
2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface
Rear Panel: 1 x USB2.0, 1x USB3.0
Front Panel: 1x USB2.0
Power Consumption
≤ 15W (Without HDD)
Working Environment
-10 to 55°C (14 to 131°F)
Power Supply
12V DC
Dimensions (HxWxD)
(2.1''x 15"x 12.4")53x 380x 315mm
Quality Certifications
