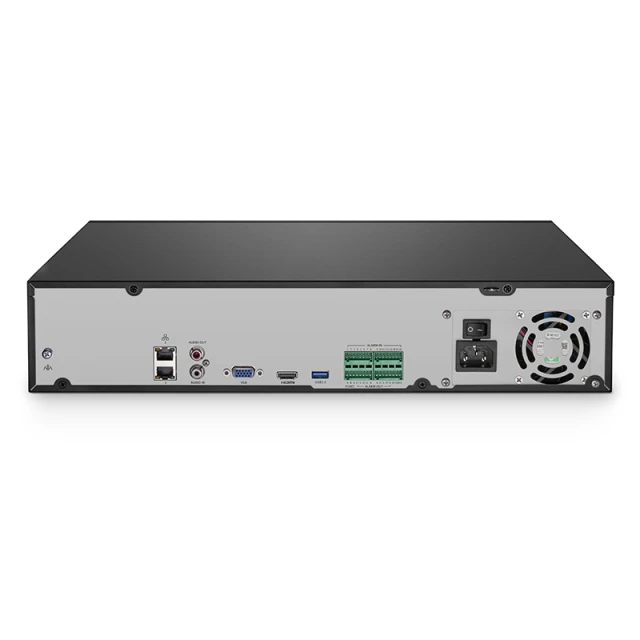

NVR308-64C, 64-Channel Network Video Recorder, Record 64CH 4K@30fps, Live View/Playback 4CH 4K@30fps, Supports up to 8x12TB Hard Drive(Not Included)

NVR308-64C, 64-Channel Network Video Recorder, Record 64CH 4K@30fps, Live View/Playback 4CH 4K@30fps, Supports up to 8x12TB Hard Drive(Not Included)

603000 CFA


 2-Year Warranty
30-Day Returns
30-Day Exchange


Product Highlights

Support 64 Cameras and up to 12MP Resolution
Remote Access via Mobile App, Web Browser and VMS (Video Management Software)
ONVIF® Profile S Conformant
Support H.265+/H.265/H.264 Video Formats
ANR Technology to Enhance the Storage Reliability when the Network is Disconnected

NVR308-64C, 64-Channel Network Video Recorder, Record 64CH 4K@30fps, Live View/Playback 4CH 4K@30fps, Supports up to 8x 12TB Hard Drive (Not Included)

The network video recorder (NVR) can record videos from up to 64 cameras, and the storage can be expanded to 96TB in total for its 8-bay SATA 3.5" HDD interface. A variety of monitoring methods, including a web browser, monitoring software and mobile App, are available to manage your cameras and NVR easily, ideal for small and medium enterprises, education institutions, hotels and other applications. It features an open architecture that supports for multi-user access, enabling interoperability with IP cameras.

Specifications
IP Video Input
64-Channel
Decoding Format
H.265+, H.265, H.264
HDMI Output
4K (3840x 2160)@30, 1920x 1080p@60, 1920x 1080p@50, 1600x 1200@60, 1280x 1024@60, 1280x 720@60, 1024x 768@60
VGA Output
1920x 1080p@60, 1920x 1080p@50, 1280x 1024@60, 1600x 1200@60, 1280x 720@60, 1024x 768@60
Audio Input
1-ch, RCA
Audio Output
1-ch, RCA
Incoming Bandwidth
320Mbps
Decoding Capability
H.265+/H.265, 2x 12MP@30, 4x 4K@30, 6x 5MP@30, 8x 4MP@30, 10x 3MP@30, 16x 1080p@30, 32x 960p@25, 36x 720p@30, 64x D1
H.264,2x 12MP@30, 2x 4K@30, 4x 5MP@30, 6x 4MP@30, 8x 3MP@30, 14x 1080p@30, 28x 960p@25, 30x 720p@30, 64x D1
Outgoing Bandwidth
160Mbps
LiveView/Playback Resolution
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
SATA
8x SATA Interfaces
Capacity
96 TB (not included), Up to 12TB for each disk
Network Interface
2 RJ-45 10M/100M/1000M Self-adaptive Ethernet Interface
USB Interface
2x USB 2.0(Front panel), 1x USB 3.0(Rear panel)
Power Consumption
≤ 32W (without HDD)
Power Supply
AC 100-240V
Audio Compression
G.711A, G.711U
Interoperability
ONVIF® Profile S Specification at onvif.org
Dimensions (HxWxD)
3.5"× 17.4"× 16.8" (89× 442× 426mm)
Operating Temperature
-10 to 55°C (14 to 131°F)
Quality Certifications
