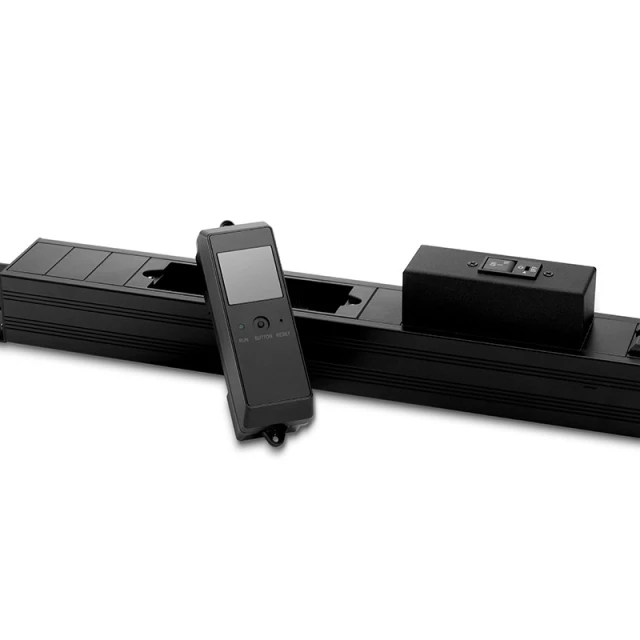

7.36kW Single-Phase 32A/230V Metered PDU, (20) C13 & (4) C19 Outlets, IEC309 32A 2P+E Plug, 10ft Cord, 0U Vertical

7.36kW Single-Phase 32A/230V Metered PDU, (20) C13 & (4) C19 Outlets, IEC309 32A 2P+E Plug, 10ft Cord, 0U Vertical

393000 CFA

Product Highlights

Outlet Grip Protection Prevents Accidental Cable Disconnects
Provides Active Metering and Supports Local Viewing of Data
Supports Real-time Power Monitoring
Hot-swappable ammeter replacement and upgrades without affecting power to IT equipment
The Black Aluminum Alloy Housing is More Wear-resistant and Extends the Life of the PDU

7.36kW Single-Phase 32A/230V Metered PDU, 20 C13 & 4 C19 Outlets, IEC309 32A 2P+E Plug, 10ft Cord, 0U Vertical

Metered PDU provides local real-time monitoring capability and avoid potential overloads with an LCD hot swapping display while offering reliable, rack-mount, multi-outlet power distribution from any protected UPS, generator, or mains input power source. It occupies zero U of valuable rack space, which allows space for more equipment in the rack.It is perfectly suited for high-density IT environments and ideal for data centers, server rooms and network wiring closets.

Specifications
PDU Type
Metered
Phase
Single-phase
Input Plug Type
IEC60309 32A 2P+E
Output Socket Type
20 C13 & 4 C19
Input Voltage
230V
Output Voltage
230V
Input Current Limits
32A
Rating Current
32A
Load Capacity
7.36kW
Frequency Compatibility
50/60Hz
Cord Length
10ft (3m)
Cord Gauge
10AWG
Ammeter
LCD Hot Swapping
Circuit Breaker
2, Magnetic-hydraulic
Front Panel LCD Display
Digital meter reports PDU output current in amps, voltage, and capacity
Switches
BUTTON: Change the display information, RESET: Restart the device
No. of Rack Spaces
Vertical (0U)
Dimensions (HxWxD)
70"x2.2"x1.75" (1778x56x44.5mm)
Toolless Mounting Peg
Unmovable
Rack Mount Brackets
Removable
Material of Construction
Aluminium Alloy
Provided Equipment
Installation guide, 4 screw and nut sets
Operating Temperature
0°C~50°C (32°F ~ 122°F)
Relative Humidity
0~95%, Non-condensing
Quality Certifications
